H1: NMRV Gearbox Selection – High Temperature Environments (+40°C to +60°C+)

Worm gear drives generate significant sliding friction – high ambient temperatures accelerate lubricant breakdown and seal degradation-54

Recommended Configuration:

Lubricant: ISO VG 460 or 680 synthetic worm gear oil – lasts 2-3× longer than mineral oil, viscosity drop ≤10% at high temperatures-54-
Seals: Fluororubber (FKM) oil seals – withstands ≥120°C-54-
Cooling: Forced air cooling (≥5m³/min fan) when ambient exceeds 60°C – reduces housing temperature by 10-15°C

Key selection criteria for NMRV series reducers:

Standard working range: -10 ° C to+40 ° C - Use factor needs to be adjusted above 40 ° C

Environmental temperature 40-50 ° C: Multiply the usage factor by 1.3-1.4

Environmental temperature 50-60 ° C: Multiply the usage factor by 1.5-1.6

Above 60 ° C: requires special material sealing

Critical Considerations:

Install in well-ventilated location – away from heat sources

Reduce worm input speed below 1,400 RPM to minimize additional heat generation

Consider cast iron housing (sizes 110-150) for better heat capacity

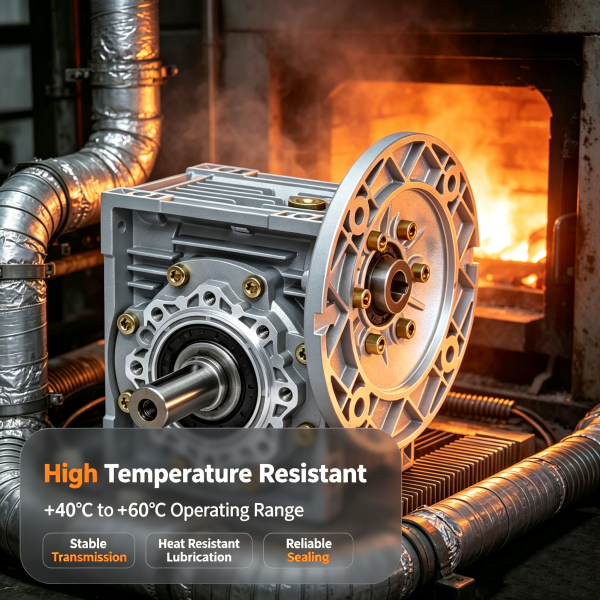

High temperature resistant turbine reducer.png

Maintenance of NMRV/RV series turbine gearbox:

●Shorten the oil change interval under high temperature from 6000 hours to 3000 hours

●Install PT100 temperature sensor - alarm when the shell temperature exceeds 80 ° C

Professional tip: High temperature environment is the primary cause of premature failure of worm gears.

Investing in synthetic lubricants and proper cooling - extending service life is rewarding
