GV Series Heavy-Duty Vertical Gear Motor – Flange-Mounted High-Torque Models
GV Series Heavy-Duty Vertical Gear Motor – Flange-Mounted High-Torque Models
The GV series is the heavy-duty version of the CV series, featuring a cast iron housing and reinforced components for high-torque vertical mounting applications. It is designed for environments where shock loads, continuous operation, and reliability are critical.
GV series heavy-duty vertical flange mounted gear motor Overview
| Feature | Details |
|---|---|
| Mounting | Vertical (flange-mounted) |
| Housing | Cast iron (all sizes) |
| Power Range | 0.1 – 3.7 kW |
| Shaft Diameters | 18, 22, 28, 32, 40, 50 mm |
| Ratios | 3 – 1800 : 1 |
| Max Torque | 1500 N.m |
| Protection | IP54 / IP55 |
Variants: GVM (flange input), GVD (double output shaft)
GV series reduction motor gear motor standard parameters
| Model | Shaft Dia. | Power Range |
|---|---|---|
| GV18 | 18mm | 0.1–0.2 kW |
| GV22 | 22mm | 0.1–0.4 kW |
| GV28 | 28mm | 0.2–0.75 kW |
| GV32 | 32mm | 0.4–1.5 kW |
| GV40 | 40mm | 0.75–3.7 kW |
| GV50 | 50mm | 1.5–3.7 kW |
GV28-750-40-S = Heavy-duty vertical + 28mm shaft + 0.75kW motor + 1:40 ratio + 3-phase.

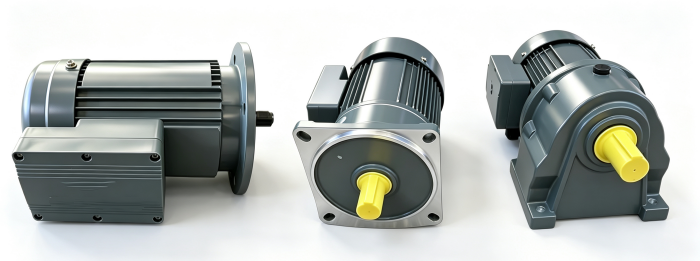

Gear reducer motor integrated single-phase three-phase asynchronous variable frequency low-speed horizontal vertical high torque motor features:
●Cast iron housing – excellent rigidity for vertical loads
●Reinforced output bearings – handle both radial and axial thrust
●Large oil capacity – better cooling and lubrication
●IP55 available – dust and water jet protection
Typical Applications for GV Series
Vertical screw conveyors
Elevating platforms and lifts
Agitators with vertical shafts
Centrifuges and separators
Rotary drum drives (vertical orientation)
Heavy-duty packaging turntables
Get a GV series recommendation – Provide your vertical load (thrust) and torque – we’ll select the right GV model and supply a dimension drawing.
