GH Series Heavy-Duty Horizontal Gear Motor – High-Torque Models, Shaft Sizes & Ratios

---

GH Series Heavy-Duty Horizontal Gear Motor – High-Torque Models, Shaft Sizes & Ratios

The GH series is the heavy-duty counterpart to the CH series, featuring a more rigid cast iron housing and enhanced bearing support for higher shock loads and continuous heavy-duty operation. It retains the same foot-mounted horizontal configuration but offers greater durability.

Overview of Gear Reduction Motor 220/380V Variable Frequency

Speed Control Motor Series

Variants: GHM (flange input), GHD (double output shaft)

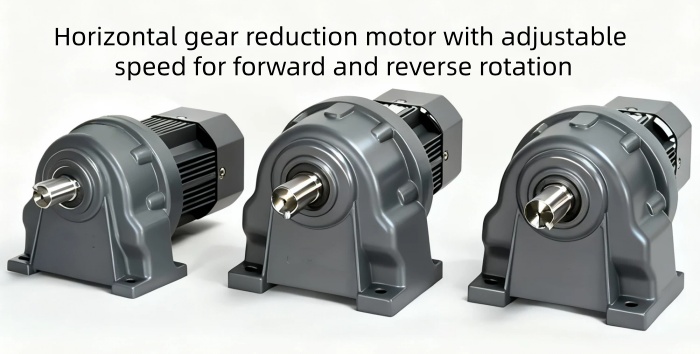

GH series medium-sized reduction motor gear motor

Model	Shaft Dia.	Housing	Power Range
GH18	18mm	Cast iron	0.1–0.2 kW
GH22	22mm	Cast iron	0.1–0.4 kW
GH28	28mm	Cast iron	0.2–0.75 kW
GH32	32mm	Cast iron	0.4–1.5 kW
GH40	40mm	Cast iron	0.75–3.7 kW
GH50	50mm	Cast iron	1.5–3.7 kW

GH series motor power and ratio matching

Power	Shaft Size	Suitable Ratios
0.1kW	18/22	10, 20, 30, 40, 50
0.2kW	22/28	15, 20, 30, 50, 80
0.4kW	28/32	10, 15, 20, 30, 60
0.75kW	28/32/40	15, 20, 30, 40, 100
1.5kW	32/40	10, 20, 30, 50
2.2kW	40/50	15, 20, 30, 40
3.7kW	40/50	10, 20, 30

For ratios above 100, consult our engineering team for multi-stage options.

Model Code Example

GH40-1500-30-S = Heavy-duty horizontal + 40mm shaft + 1.5kW motor + 1:30 ratio + 3-phase.

Typical Applications for GH Series

• Heavy conveyor systems (bulk material)

• Crushers and shredders (low-speed high-torque)

• Mixers and agitators in chemical plants

• Steel mill auxiliary drives

• Crane travel and hoist mechanisms

• Heavy-duty packaging lines

 Request a GH series quote – Share your load conditions and required torque – we’ll propose the most durable GH model for your application.
