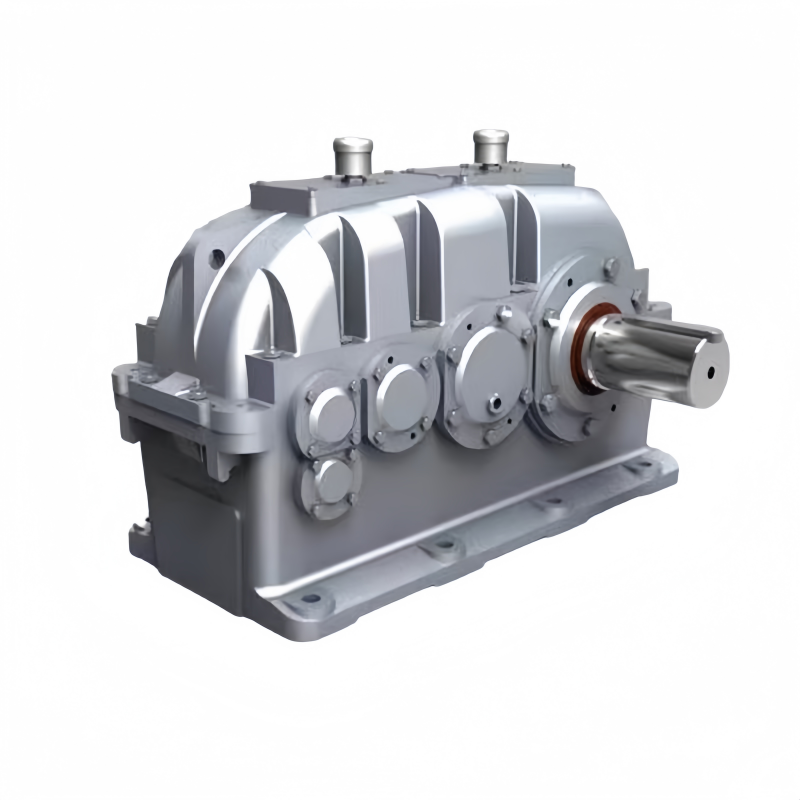

How to Extend the Lifespan of Gear Motors: A Systematic Project from Selection to Maintenance
The lifespan of a gear motor is not determined by a single factor, but rather by the combined
effects of selection, installation, lubrication, and monitoring. Mastering the following core
points can increase the mean time between failures (MTBF) of
equipment several times over and significantly reduce the total lifespan cost.
I. Choosing the Right Foundation: The Start Determines the End
- **Torque Margin**: The actual load torque should
not exceed 80% of the gear motor's rated torque,
ensuring a service factor ≥ 1.4 to handle shocks and overloads effectively.
- **Thermal Power Verification**: For long-term continuous operation,
the actual power must be lower
than the gear motor's heat capacity; otherwise, a larger frame
size or enhanced cooling is required.
- **Inertia Matching**: In servo applications, the equivalent inertia
ratio should be controlled within
5:1 to avoid frequent oscillations that could damage gears and bearings.
- **Environmental Adaptability**: For outdoor, high-temperature, high-humidity,
or washing environments,
select appropriate protection levels, oil seal materials, and stainless steel components.
II. Precise Installation: Eliminating Stress Concentration
- **Alignment:** Coupling radial deviation ≤ 0.05mm,
angular deviation ≤ 0.03°/100mm.
Laser alignment is superior to a ruler.
- **Base Rigidity:** The mounting surface must be flat,
all soft feet must be firmly shimmed,
and anchor bolts must be tightened diagonally in stages to the specified torque.
- **Output Connection:** Sprockets and pulleys
should be placed as close as possible to the bearing
housing to reduce cantilever bending moment;
hammering is strictly prohibited, and heat-setting
or hydraulic tools should be used.
III. Scientific Lubrication: Protecting Gears and Bearings
- **Use the Right Oil:** Strictly adhere to the brand and viscosity
specified in the instruction manual.
Select synthetic oil for extreme pressure conditions, and use worm
gear reducer-specific oil.
- **Frequent Maintenance:** Change the oil after the first 500 hours of operation,
and thereafter
every 2000-3000 hours or 6 months. Check the oil quality
and level every 3 months; the oil level
should always be in the middle of the sight glass.
- **Pollution Prevention**: Clean the filler filter and regularly ventilate the breather
to prevent dust and moisture from entering.
IV. Temperature Control: Maintaining the Minimum Thermal Life
- Motor temperature rise ≤ 80K (Class B insulation), reducer oil temperature ≤ 85℃.
- Clean the fan cover and cooling fins weekly; maintain
at least 15cm of ventilation space around the motor.
- For low-speed operation with variable frequency, an independent fan (IC416)
must be installed or a variable frequency motor must be used.
- When the ambient temperature exceeds 40℃, reduce the load or add cooling coils.
V. Regular Condition Monitoring: Early Fault Detection
- **Daily Inspection**: Listen for abnormal noises, measure vibration, feel temperature,
and check for oil leaks.
- **Vibration Spectrum**: Collect data every six months to
track the trends of gear meshing
frequency and bearing failure frequency.
- **Oil Sample Analysis**: Sample annually to test for metal particles, moisture,
and viscosity to predict gear and bearing wear.
- **Current Monitoring**: Record the motor operating current; immediately
check the load and power supply
balance if there is an abnormal increase. VI. Standard Operation and Protection
- Avoid direct starting under load and frequent forward and reverse rotation. If necessary
install a soft starter or frequency converter for current limiting.
- Before restarting after a long period of inactivity, run the machine idle for
a few minutes and check the lubrication status.
- Overload and jamming protection: install torque limiters or safety pins.
