**Gear Motor Efficiency Calculation: Methods & Practical Guide**

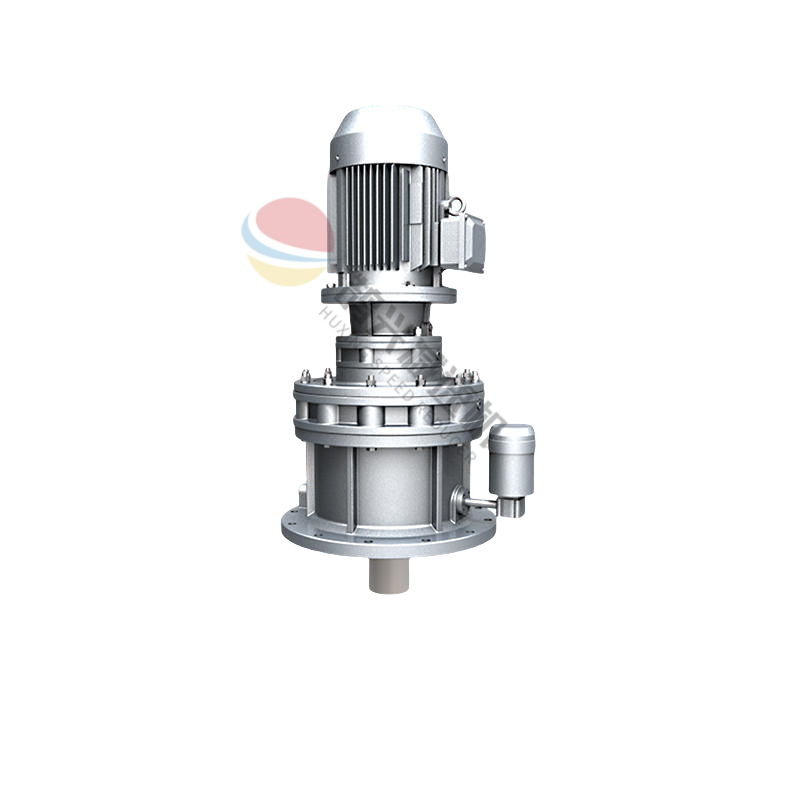

Accurate efficiency calculation is essential when sizing a gear motor
— it directly affects energy consumption, heat generation,
and total operating cost. A gear motor’s overall efficiency is the
product of the motor efficiency and the gearbox efficiency.
Below are the key calculation methods engineers rely on.
1. Fundamental Efficiency Formula
Efficiency (η) is always the ratio of output mechanical power to input electrical power:
**η = (T_out × ω_out) / (V_in × I_in × √3 × PF)** *(for 3‑phase AC)*
**η = (T_out × ω_out) / (V_in × I_in)** *(for DC / single‑phase)*
Where:
- T_out = output torque (Nm)
- ω_out = output angular velocity (rad/s) = 2π × RPM / 60
- V_in = input voltage, I_in = input current, PF = power factor
2. Separated Component Method
**η_total = η_motor × η_gearbox**
Motor efficiency (η_motor) is read from the manufacturer’s data sheet at the specific
load point. Gearbox efficiency (η_gearbox) depends on gearing type and stage count.
Typical full‑load efficiency benchmarks:
| Gearbox Type | Efficiency per Stage | Typical Multi‑Stage Range |
|--------------|----------------------|---------------------------|
| Helical / Parallel Shaft | 96 – 98% | 92 – 97% |
| Planetary (precision) | 92 – 97% | 90 – 95% |
| Bevel-Helical | 94 – 97% | 90 – 96% |
| Worm Gear | 50 – 85% (highly ratio‑dependent) | 40 – 80% |
| Hypoid | 85 – 95% | 80 – 92% |
Multiply the motor efficiency by the gearbox efficiency to obtain the combined efficiency.
Then use this combined efficiency to calculate
the actual output torque: T_out = T_rated_gearbox × η_total.
3. Direct Measurement Method
The most reliable way is to test the complete gear motor on a dynamometer:
- Measure input electrical power with a power analyser.
- Measure output torque and speed with a torque transducer.
- Compute η_total directly. This captures all real‑world losses,
including oil churning, seal friction, and bearing drag.
4. Analytical Loss Models
For detailed design or thermal simulation, losses are broken down:
- **Gear mesh loss:** ~1‑2% per mesh for helical/planetary; higher for worm sliding.
- **Bearing loss:** ~0.5‑1% per bearing pair (depends on preload and speed).
- **Seal loss:** 1‑3% total, rising with shaft diameter and speed.
- **Churning loss:** depends on oil viscosity, immersion depth, and gear speed.
Summing these gives a predictive gearbox efficiency before prototyping.
Practical Tips for Efficiency Optimization
- **Larger ratio worm reducers** lose efficiency drastically; consider
helical‑bevel or planetary alternatives for continuous operation.
- **Low‑viscosity synthetic oils** reduce churning at higher speeds.
- **Correct oil level** is critical; overfilling increases churning losses by 2‑5%.
- **VFD operation:** motor efficiency drops at low frequency; always
check combined efficiency at the actual operating speed.
