H series Industrial gearbox
- H Series Industrial Gearbox

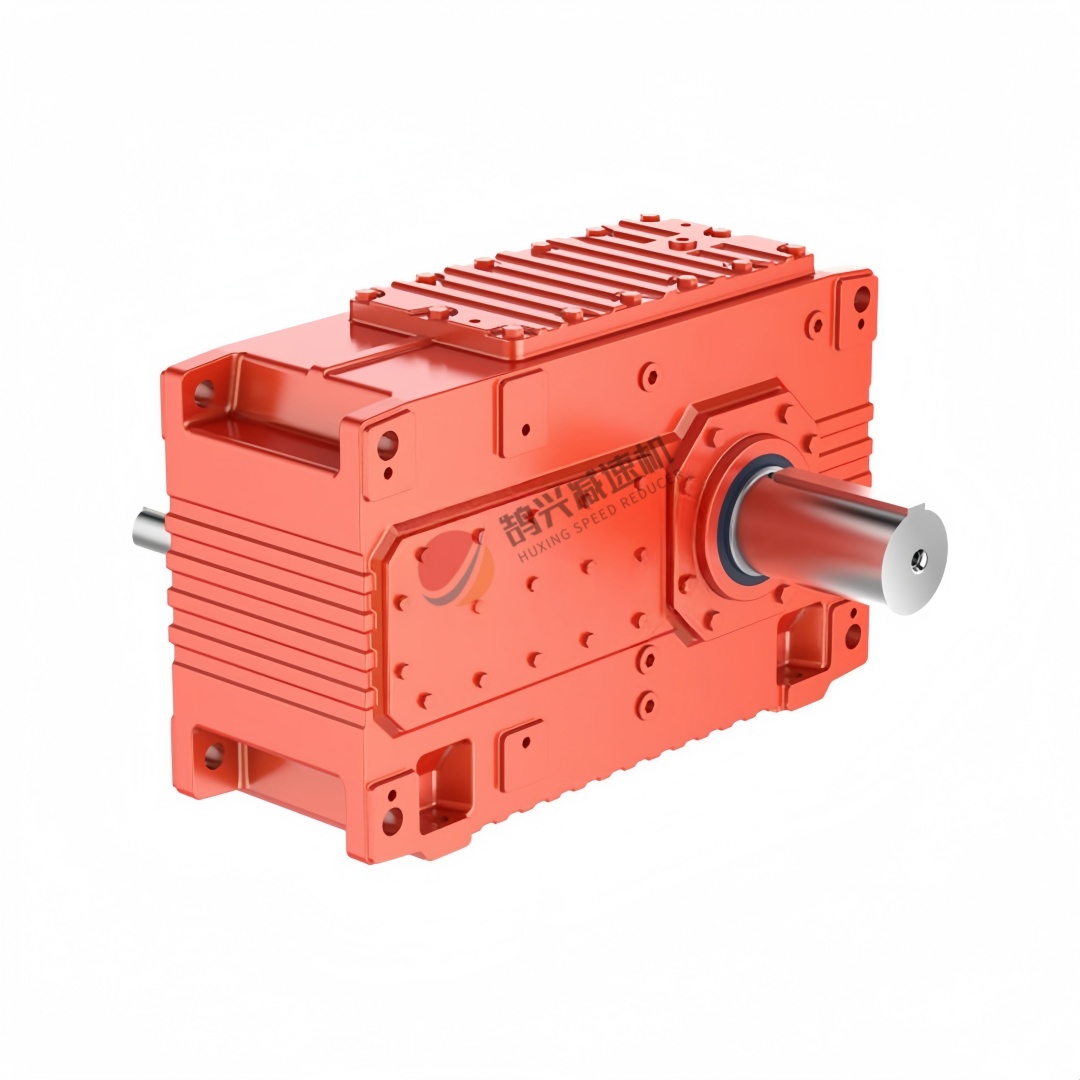

- universal modular cast iron housing
- parallel shaft helical hardened gear precision grinding
- high transmission efficiency low energy loss
- ultra large torque heavy overload resistance
- wide power & ratio coverage range

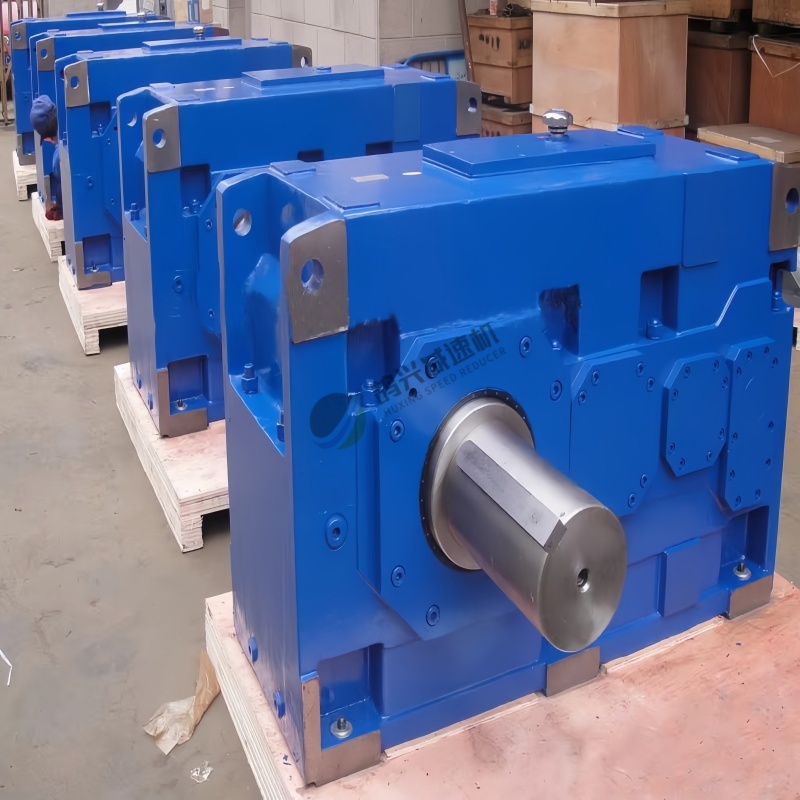

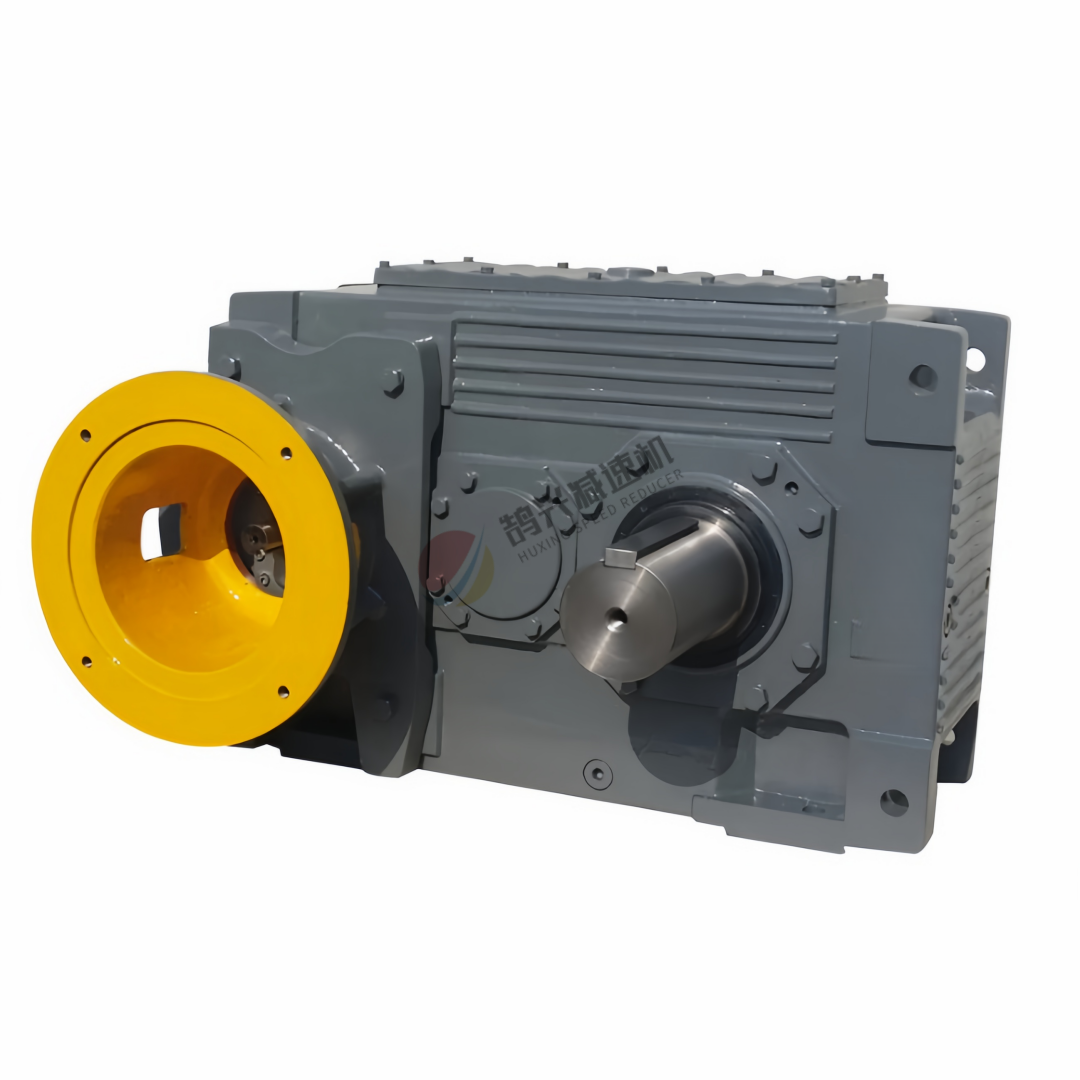

- horizontal vertical torque arm diversified mounting

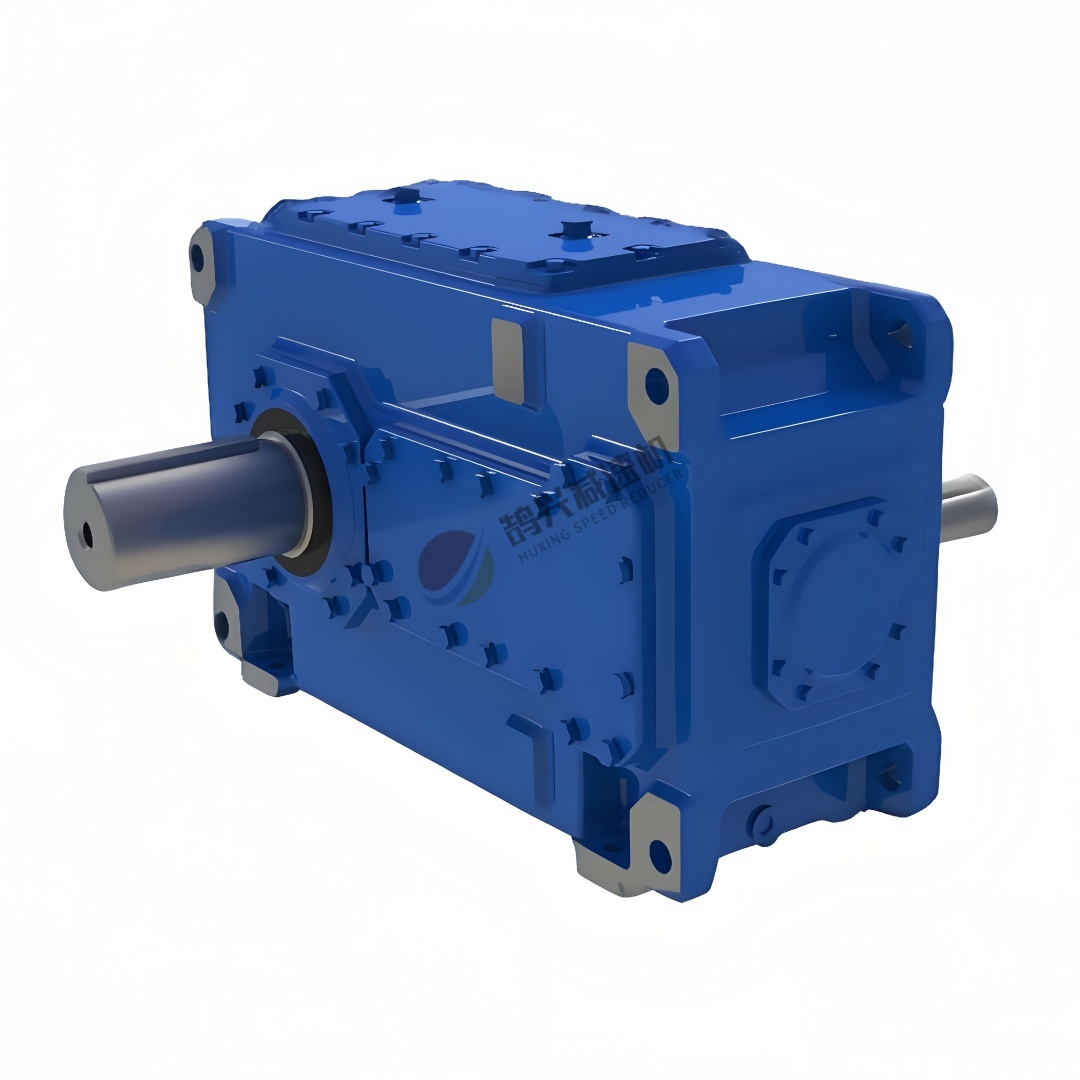

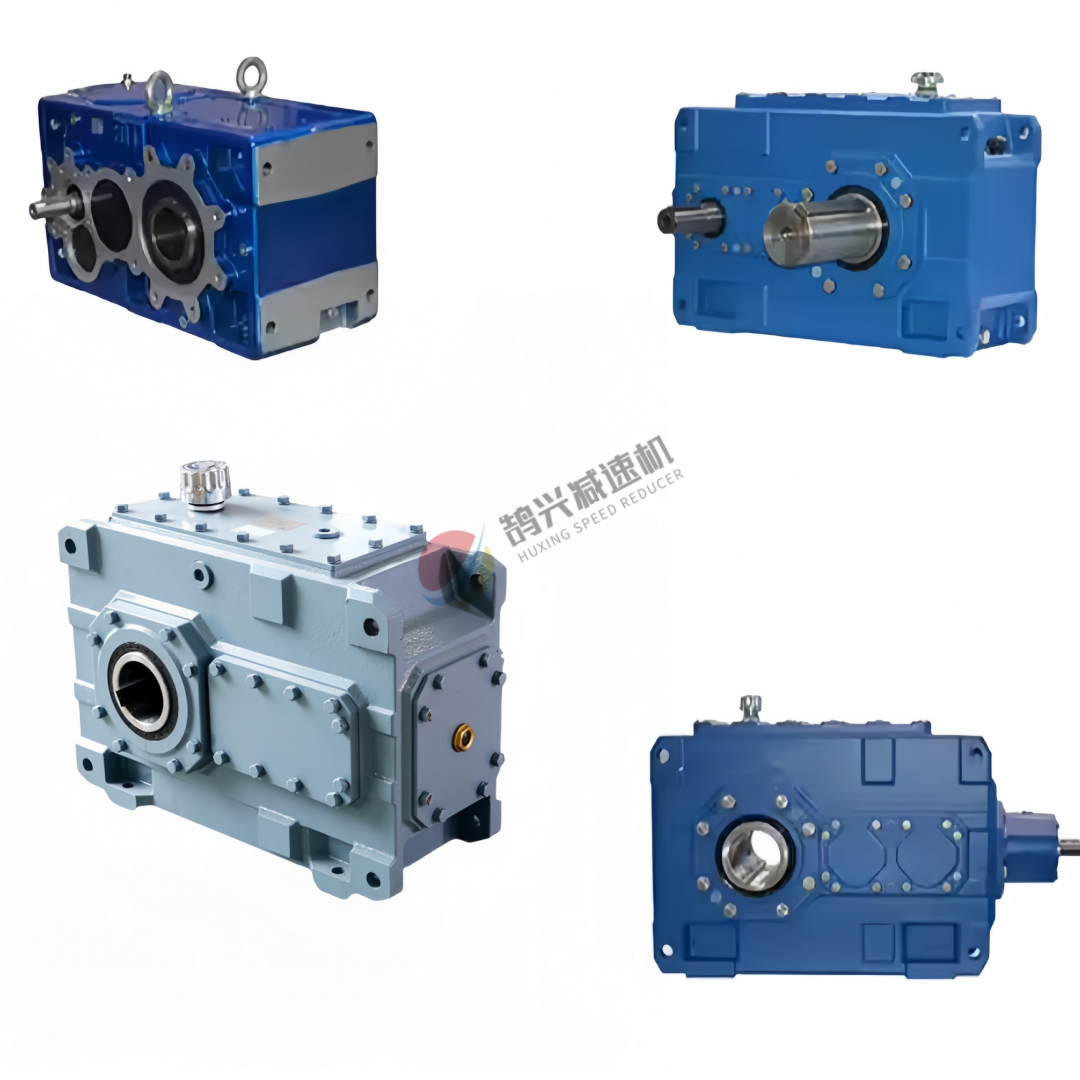

- solid/hollow shaft/flange multiple output optional
- labyrinth non-contact sealing anti-oil leakage
- low vibration low noise heat dissipation optimized

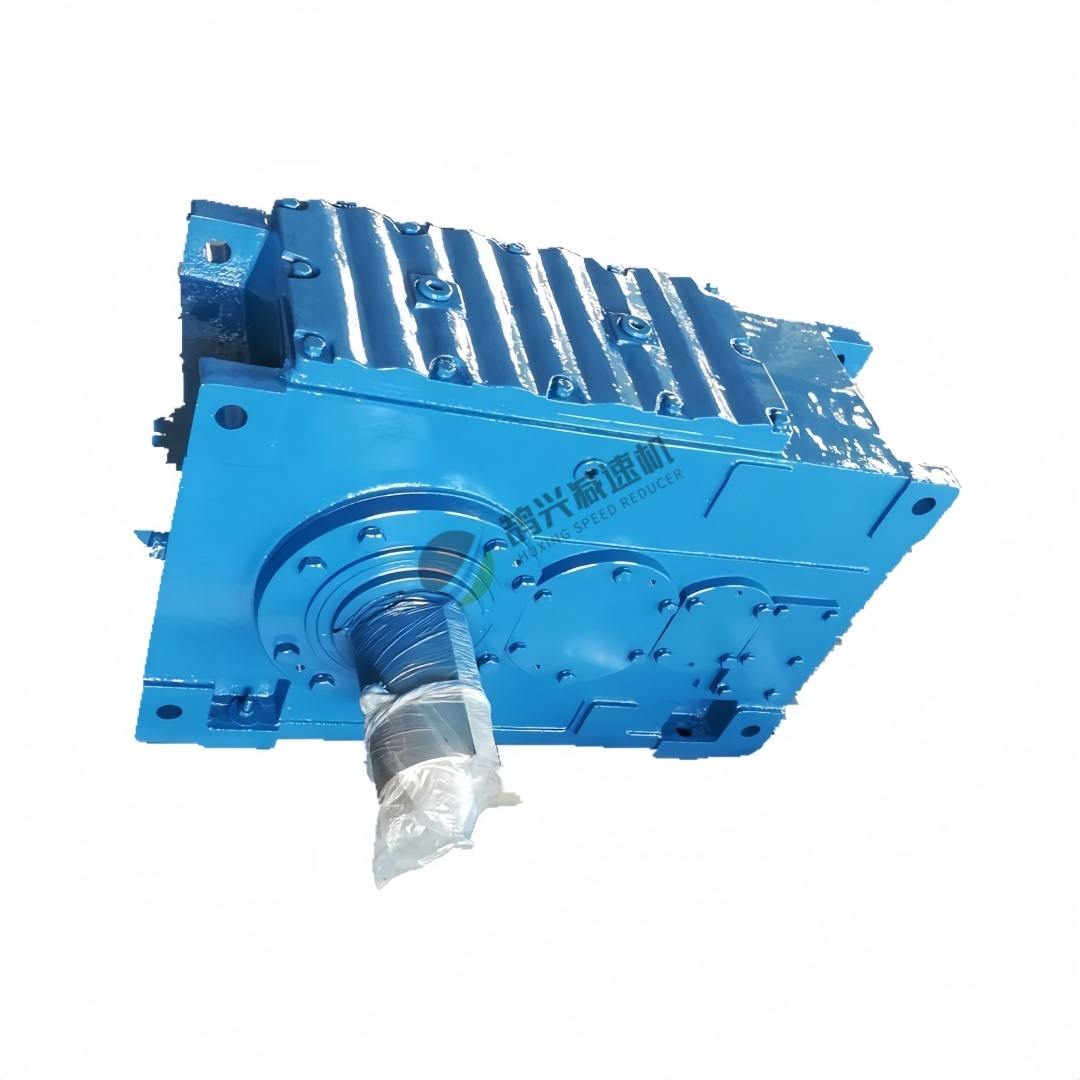

- optional backstop cooling device
- interchangeable with international mainstream standards
- customized industrial special variants supported
- CE certified for heavy-duty mining cement conveying equipment
The Huxing H series parallel axis helical gear industrial gearbox is the main model of industrial heavy-duty transmission, specially developed for high-power, high load, 24-hour continuous working conditions. With high-precision helical gear transmission, high rigidity box structure, and stable and durable performance, it is popular worldwide and has gained high recognition from overseas engineering projects and large factories. Effectively solving the pain points of traditional gearboxes such as high noise, unstable transmission, insufficient load capacity, easy oil leakage, fast thermal decay, and frequent maintenance, it is the core preferred equipment for heavy-duty industrial automation and assembly line transmission.
Core technical parameters: The whole machine has multiple specifications and full coverage, suitable for all industrial working conditions; The power range is 4-5000kW, the output torque can reach 2-900kNm, the speed ratio range is 1.25-450, and it supports 1-4 levels of multi-stage transmission deceleration. Suitable for conventional input speeds of 710/960/1450rpm, supporting horizontal and vertical installation in multiple ways. The output can choose from various structures such as solid shaft, hollow shaft, expansion disc, spline, etc. It can be equipped with a check valve and heat dissipation device, and is compatible with various large industrial equipment.

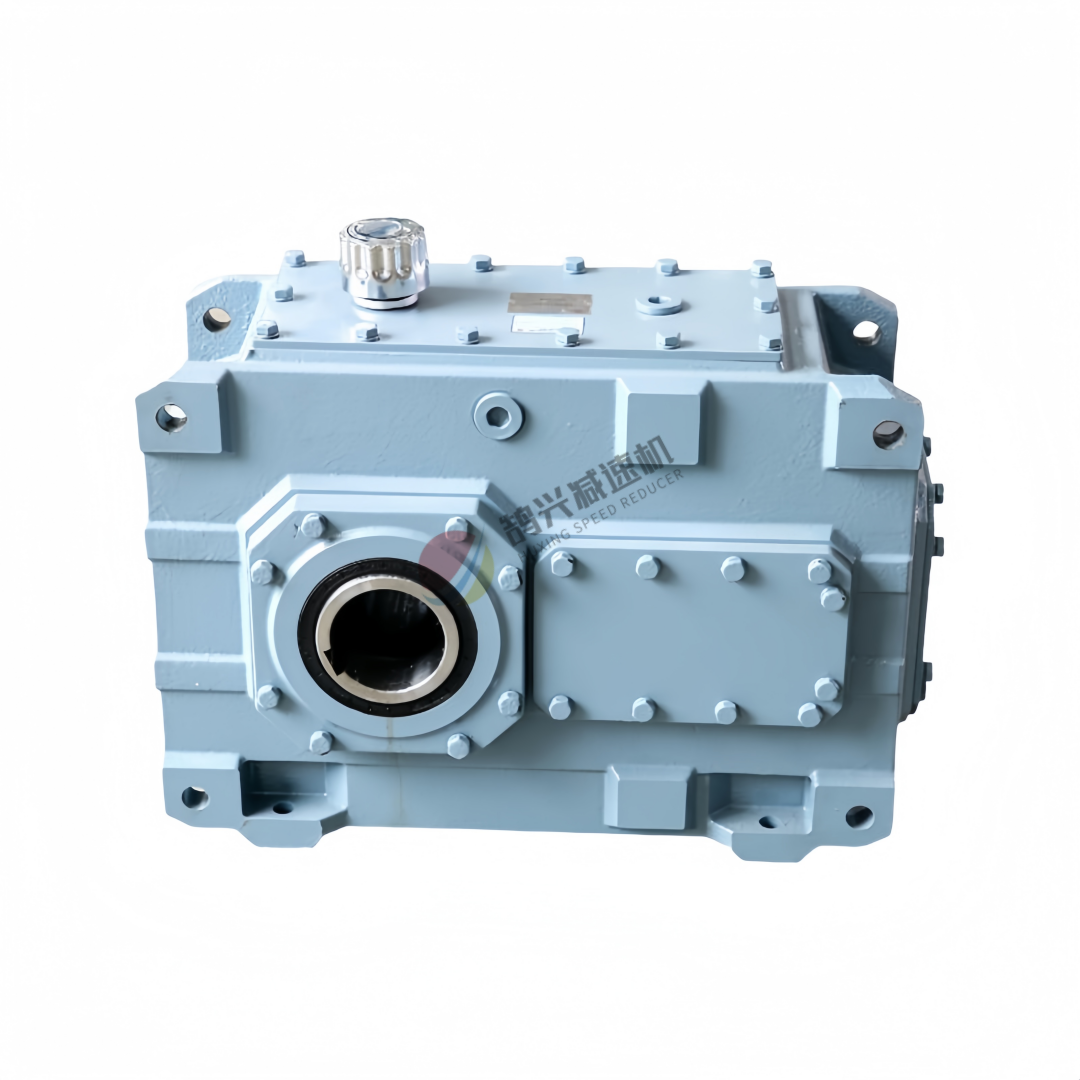

The product adopts high-strength alloy steel helical gears, which have undergone carburizing, quenching and hardening, and five axis precision grinding process. The tooth surface accuracy is high, the meshing is smooth, and the bearing capacity is extremely strong. The box adopts an integrated casting process and undergoes multiple stress relief treatments, with strong rigidity, impact resistance, and resistance to deformation; Equipped with multiple sealed protective structures, it is dust-proof and leak proof, completely eliminating the hidden danger of oil leakage.
Compared to spur gearboxes, helical gears have a higher overlap meshing rate, transmission efficiency of over 96%, significantly reduced operating noise, stable temperature rise, and can operate continuously at full load for a long time.
Based on ISO standardized production and complete factory inspection, the H series gearbox has core advantages such as high load, high efficiency, low noise, low temperature rise, maintenance free, and long service life. It has strong compatibility and adaptability, and can be matched with various industrial motors and heavy-duty transmission systems. Widely used in high-power heavy-duty industrial scenarios such as metallurgy, mining, building materials, chemical industry, environmental protection, conveying equipment, grain machinery, and heavy-duty assembly lines, it has become a reliable benchmark for global heavy-duty industrial transmission with hardcore domestic quality.
