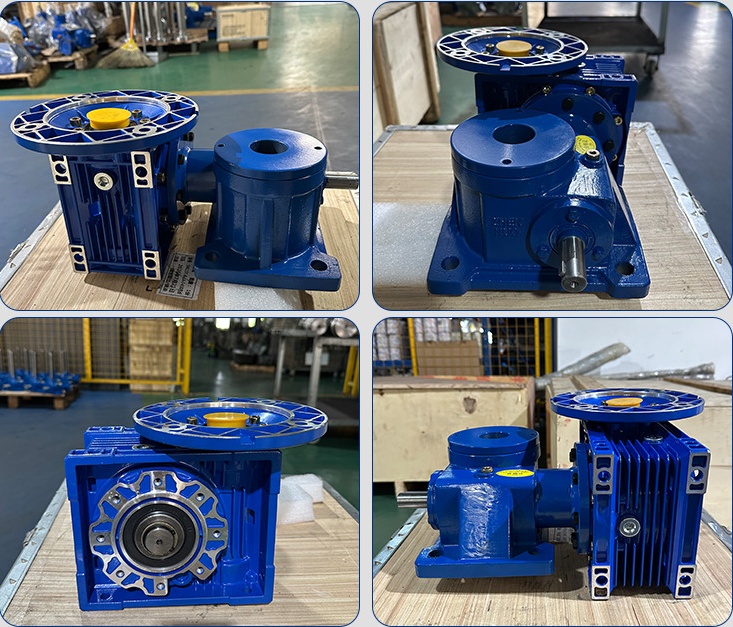

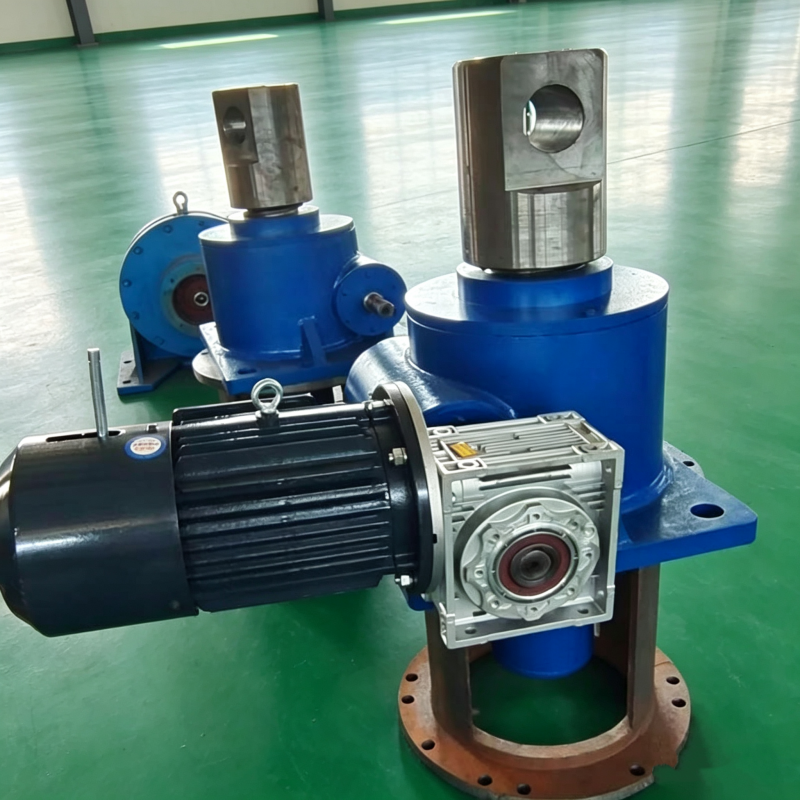

RV Worm Gear Reducer Screw Jack with AC Motor – Flange-Mounted Lifting Solution
The RV worm gear reducer screw jack combines a precision RV series worm gearbox with an AC motor to deliver reliable, high-torque linear motion for lifting, lowering, and positioning applications.
Flange-Mounted Design for Direct Motor Coupling
This unit features a flange-mounted input that allows direct coupling with an AC motor.
The motor flange connects seamlessly to the jack input shaft, eliminating the need for additional couplings or belt drives. This compact integration saves installation space and reduces maintenance points.12V 24V DC motor screw jack
Key Features
1.RV worm gear reducer – precision-engineered for smooth speed reduction and high torque output
2.AC motor drive – continuous-duty operation with reliable performance
3.Self-locking – holds load in position when power is off
4.Low-noise operation – ideal for noise-sensitive environments
5.Cast iron housing – durable and heat-resistant for heavy-duty industrial use
Applications
This screw jack is widely used in conveyor systems, industrial automation, material handling, stage
equipment, and heavy machinery positioning
Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
