F Series Parallel Shaft Helical Gearbox | Full Specs & Exact Weight List

---

parallel shaft helical gearbox F series, F37-F157 weight, F series reducer specification, helical geared motor dimension weight）

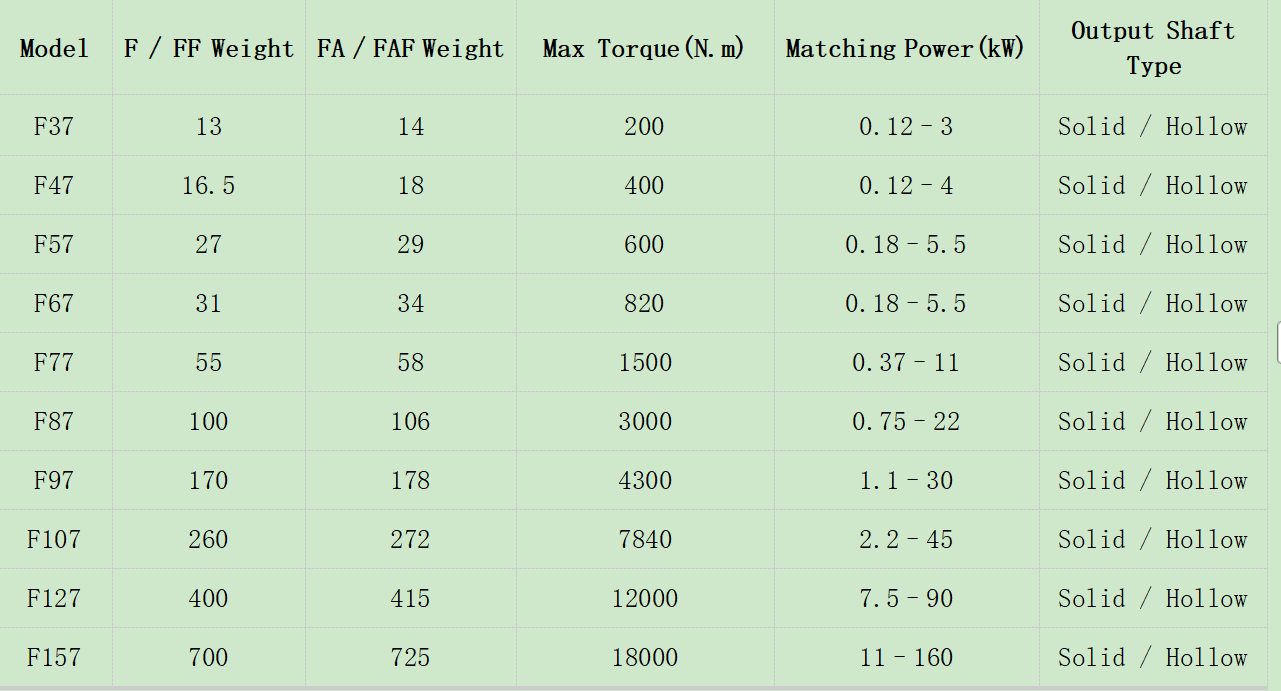

Full Model Weight Chart (Core Demand: Exact Weight Per Size)

1.Net weight below = gearbox only (without motor), unit: KG



Note: Total weight of complete geared motor = gearbox weight + matching motor weight; we can provide full motor-matching weight sheet upon request.

2. Complete Technical Specifications

Basic Transmission Parameters

• Gear Stage: 2-stage / 3-stage helical gears

• Efficiency: 2-stage ≥96%; 3-stage ≥94%; combined F+R ≥85%

• Output Speed Range: 0.1 ~ 560 RPM

• Lubrication: Oil bath lubrication, standard mineral gear oil

• Protection Grade: IP55 gear housing, IP54/IP55 motor optional

• Working Temp: -20℃ ~ +45℃, continuous 24h operation
