F Series Gearbox – Full Technical Specifications & Parameters
F Series Gearbox – Technical Specifications
| Parameter | Range |
|---|---|
| Models | F37, F47, F57, F67, F77, F87, F97, F107, F127, F157 |
| Input Power | 0.12 – 200 kW |
| Output Torque | 130 – 25,000 N·m |
| Ratio Range | 3.8 – 267 (standard); up to 14,000 (combined) |
| Efficiency | 2-stage ≥96% / 3-stage ≥94% |
| Gear Material | 20CrMnTi alloy steel, carburized |
| Gear Hardness | HRC 58-62 |
| Housing | High-strength cast iron |

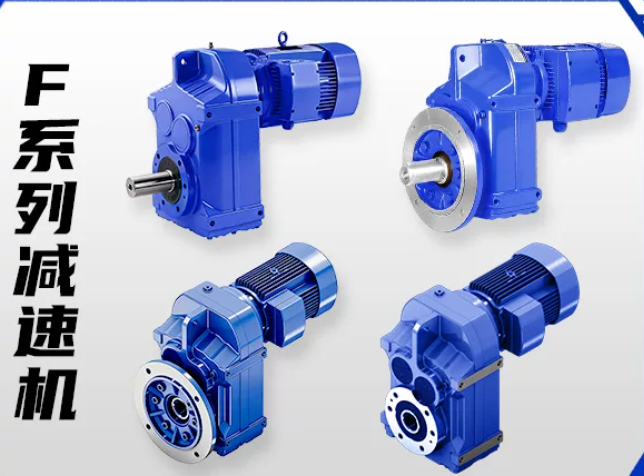

Structure types: F (foot mounted) / FA (hollow shaft) / FF (flange mounted) / FAF (flange + hollow shaft)
