Efficient helical gear reducer (R/F series) - Practical guide for automated production lines

---

The R series (coaxial) and F series (parallel axis) helical gear reducers, with a single-stage transmission efficiency of over 96%, operating noise below 75dB, low backlash ≤ 3 arc minutes, and modular installation capability, have become the preferred power transmission unit for automated production lines. Its adaptability stems from precision hard tooth surface technology and compact structural design, achieving zero fault continuous operation for over 20000 hours in food packaging, robot joints, and intelligent conveying systems.

technical indicators	R series (coaxial)	F series (parallel axis)	industry benchmark
‌Single-stage transmission efficiency‌	≥96%	≥96%	94%–98%（GB/T 19001）

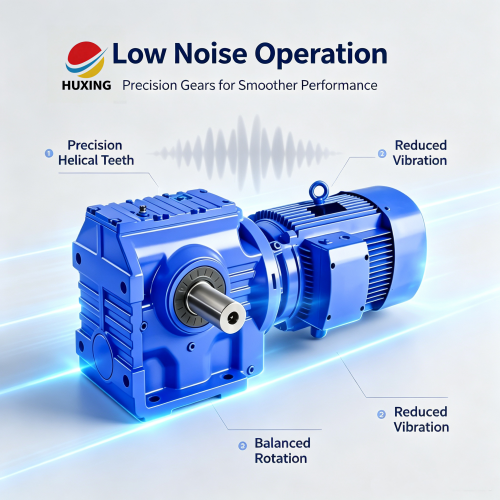

Operating noise‌	≤75 dB(A)	≤78 dB(A)	Industrial equipment ≤ 80 dB (A)
‌Backgap (air travel error)‌	≤3 arc minutes	≤5 arc minutes
‌Protection Rating‌	IP65(Optional)	IP65(Optional)	Standard configuration of automated production line
Lifespan（MTBF）‌	≥20,000Hour by hour	≥20,000Hour by hour	Industry average of 15000 hours
Installation method‌	Base/flange/torsion arm	Parallel axis extension/shaft installation/flange	Support multi axis integration

✅  Technical principle:

The helical meshing gradually changes the contact between the tooth surfaces from a "point" to a "line", greatly reducing the impact load and vibration, and achieving smooth transmission;

Adopting 20CrMnTi carburizing quenching+precision grinding process to improve tooth surface hardness (HRC58-62) and contact fatigue life;

The box adopts high-strength cast iron and reinforced rib structure to suppress resonance and achieve a dual breakthrough of "low noise+high rigidity".
