Appearance dimension diagram of NMRV050 reducer | Installation dimension parameter table
Appearance dimension diagram of NMRV050 reducer | Installation dimension parameter table
This article provides a complete set of drawings for the appearance dimensions, external dimensions, installation dimensions, center height, shaft diameter, etc. of NMRV050 worm gear reducer, in millimeters, suitable for design, installation, selection, and quotation reference.
1、 Introduction to NMRV series reducer products
The NMRV050 reducer is a commonly used standard model with moderate torque and strong versatility, suitable for transmission of mechanical equipment such as automation equipment, conveyor lines, textiles, printing, packaging, etc.

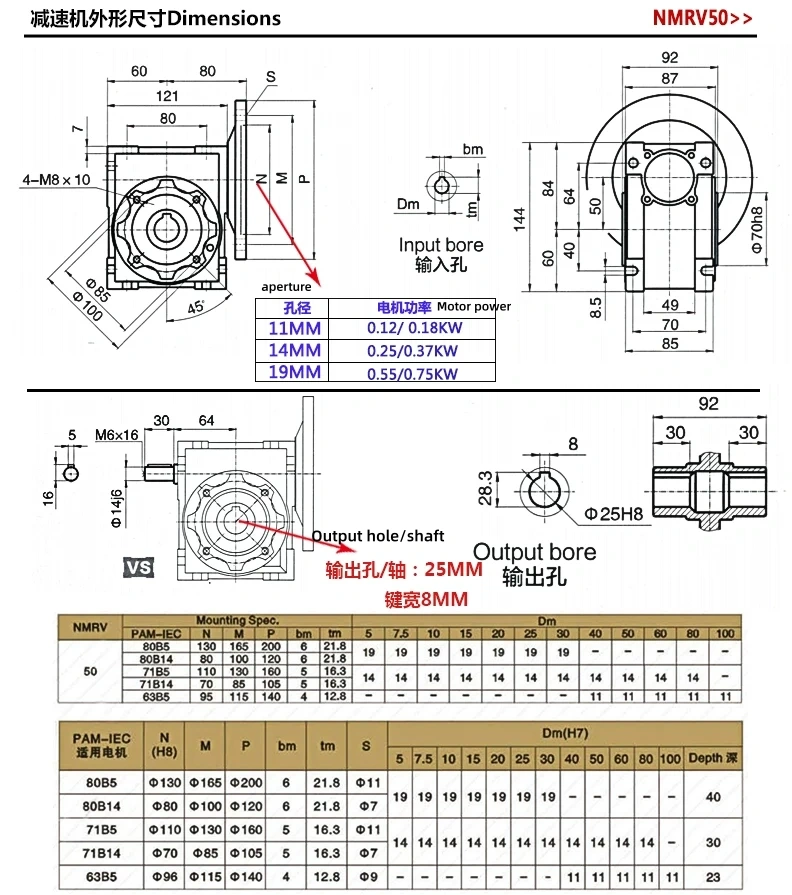

2、 Appearance dimension diagram of NMRV050 reducer
3、 Key Dimensional Parameters Table of NMRV50 Gearbox
| parameter name | numerical value |
| Total length A | About 165mm |
| Total width B | About 120mm |
| Total height C | About 140mm |
| Center height H | 80mm |
| mounting hole spacing | 100×80mm |
| Output shaft diameter d | 19mm |
| Input flange | 80B5 (compatible with B5/B14 standard motors) |
| Net weight | About 3.5-4.5kg |
4、 Drawing Description
Dimensions in millimeters (mm)
The unmarked tolerance shall be executed according to the general mechanical standards
The installation size is standard structure, and non-standard customization is acceptable
The data is for selection reference only, and the official samples and physical objects shall prevail
