CV Series Vertical Gear Motor – Flange-Mounted Models, Shaft Sizes,
Ratios & Power Guide

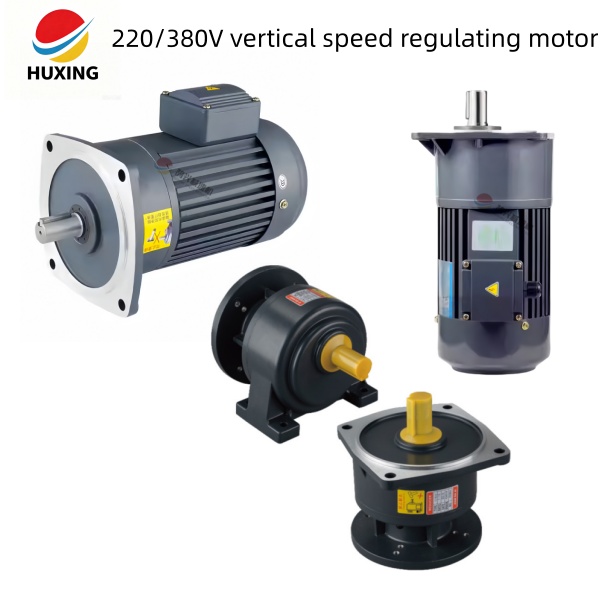

The CV series is a vertical (flange-mounted) helical geared motor designed for applications where floor
space is limited or where the driven equipment requires a vertical shaft orientation. This guide covers all
standard models, shaft diameters, ratios, and power ratings.
Overview of CV series vertical reduction motor
| Feature | Details |
|---|---|
| Mounting | Vertical (flange-mounted) |
| Motor | Integrated, 3-phase or 1-phase |
| Power Range | 0.1 – 3.7 kW |
| Shaft Diameters | 18, 22, 28, 32, 40, 50 mm |
| Reduction Ratios | 3 : 1 to 1800 : 1 |
| Output Torque | Up to 1500 N.m |
| Housing | Aluminum alloy (18–28) / Cast iron (32–50) |
| Protection | IP54 (standard) |
Variants: CVM (flange input), CVD (double output shaft)
Standard Models by Shaft Diameter
| Model | Shaft Dia. | Housing | Power Range |
|---|---|---|---|
| CV18 | 18mm | Aluminum | 0.1–0.2 kW |
| CV22 | 22mm | Aluminum | 0.1–0.4 kW |
| CV28 | 28mm | Aluminum | 0.2–0.75 kW |
| CV32 | 32mm | Cast iron | 0.4–1.5 kW |
| CV40 | 40mm | Cast iron | 0.75–3.7 kW |
| CV50 | 50mm | Cast iron | 1.5–3.7 kW |
| Motor Power | Recommended Shaft Size | Typical Ratios |
|---|---|---|
| 0.1 kW | 18 or 22 | 10, 15, 20, 30, 50 |
| 0.2 kW | 22 or 28 | 15, 20, 30, 40, 60 |
| 0.4 kW | 28 or 32 | 10, 15, 20, 30, 50 |
| 0.75 kW | 28 or 32 | 15, 20, 30, 40, 80 |
| 1.5 kW | 32 or 40 | 10, 20, 30, 40 |
| 2.2 kW | 40 or 50 | 15, 20, 30, 50 |
| 3.7 kW | 40 or 50 | 10, 20, 30 |
Model Code – Example
CV28-400-30-S = Vertical flange mount + 28mm shaft + 400W motor + 1:30 ratio + 3-phase power.
Key Mounting Dimensions
Flange bolt circle and pilot diameter vary by frame size.
Standard flange is IEC-compatible (B5 or B14).
Output shaft orientation: standard downward; upward available on request.
📐 Request our CV series dimension drawing for exact flange and shaft details.
Typical Applications for CV Series
Vertical conveyors and lifts
Filling and capping machines
Labeling equipment
Agitators and mixers
Rotary indexing tables
Packaging machines with vertical drive shafts
📩 Need a CV series quote? Provide your power, ratio, and shaft size – our engineers will recommend the optimal model and send you mounting drawings.
