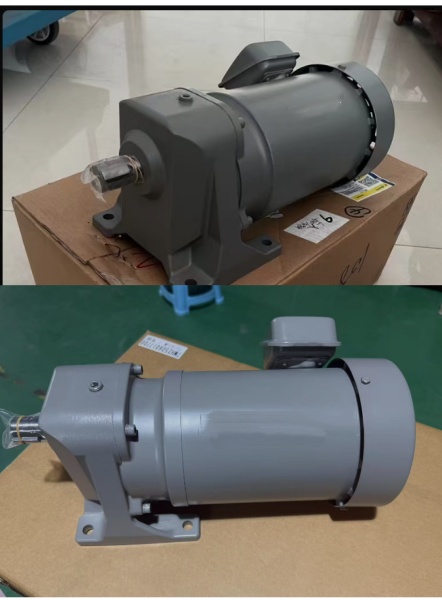

Complete Model Analysis of CH28-400-30-S Gear Motor
Model Code Breakdown
Example: CH28-400-30-S
| Segment | Meaning |
|---|---|
| CH | Horizontal foot-mounted series |
| 28 | Output shaft diameter = 28mm |
| 400 | Motor power = 400W (0.4kW) |
| 30 | Reduction ratio = 1:30 |
| -S | 3-phase 220/380V 50/60Hz |
Voltage codes: -S (3-phase), -A (single-phase), -K (440V)
Brake options: -B (DC90V), -YB (with release), -D (DC24V)
Mounting Dimensions (Key Points)
| Shaft Dia. | Shaft Length | Key Size |
|---|---|---|
| 18mm | 30mm | 5×5×27 |
| 22mm | 40mm | 7×7×35 |
| 28mm | 45mm | 7×7×40 |
| 32mm | – | 10×8×50 |
| 50mm | 80mm | 14×9×75 |
Complete dimensional drawings (foot hole positions, overall length) are available in our CH series CAD library – request a free download.
CH28-400-30-S Gear Motor FAQ
Q: What is the output RPM of CH28-400-30-S?
A: With a 4-pole 400W motor running at 1380RPM, the 30:1 reduction ratio delivers a rated output speed of ~46RPM, ideal for slow, steady conveyor movement.Q: Can this gear motor be mounted vertically?
A: No, the CH prefix stands for horizontal foot-mounted design. For vertical installation, you can choose the matching CV28-400-30-S flange-mounted model instead.Q: What is the standard warranty for this unit?
A: Our CH28-400-30-S gear motors come with a 12-month full warranty, covering non-human damage issues like gear wear or motor winding failure.Q: Does this model support electromagnetic brake modification?
A: Yes, we offer pre-configured brake versions (CH28-400-30-SB) for quick stop and precise positioning scenarios.Q: What shaft accessories are compatible with the 28mm output shaft?
A: It fits standard 28mm bore couplings, sprockets, and gear sets, no extra custom machining required for most industrial retrofits.
Why Choose CH Series?
Space-saving foot mounting – easy floor installation
Hardened helical gearing – quiet, efficient, long-life
Sealed lubrication – no routine oil changes
Multiple ratios and powers – flexible for diverse needs
Global voltage compatibility – 220V/380V/440V, 50/60Hz
Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
