F Series Parallel Shaft Gearbox Ratio Calculation: A Step-by-Step Guide

---

H1: F Series Parallel Shaft Gearbox Ratio Calculation: A Step-by-Step Guide

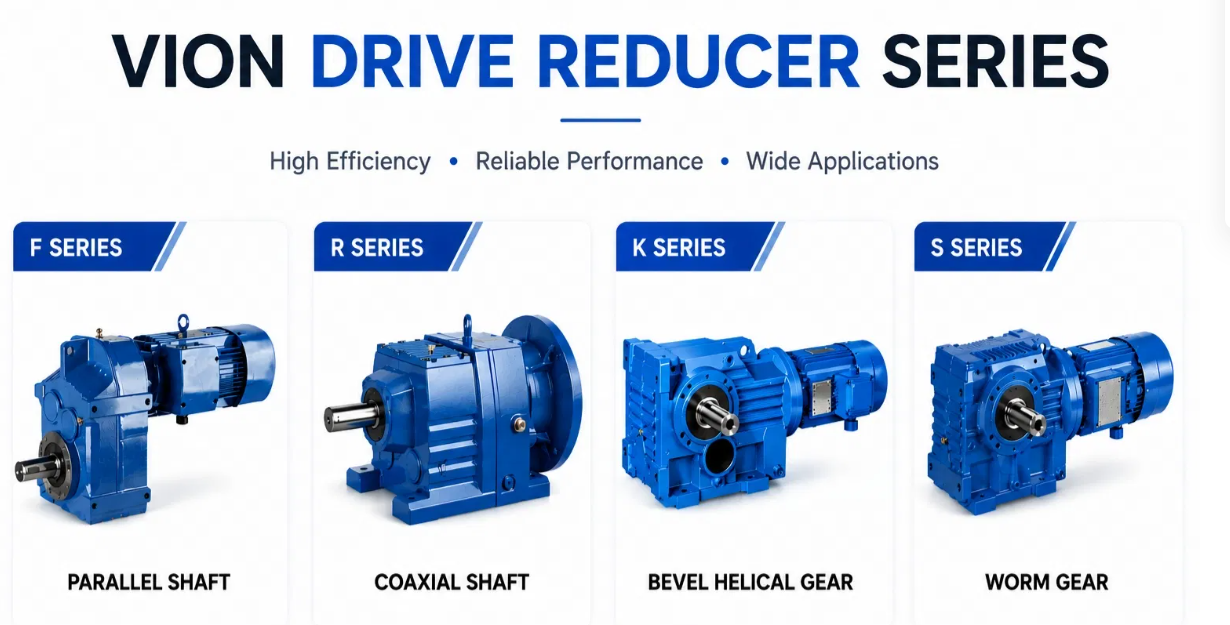

H2: What Is Gear Ratio and Why It Matters

Gear ratio is the relationship between input speed and output speed in an F series parallel shaft gearbox. For a parallel shaft helical gearbox, the ratio determines how much speed is reduced and torque is increased. Getting the gear reduction ratio right is critical for conveyor systems, mixers, and packaging equipment.

H2: The Core Formula for F Series Gearbox Ratio Calculation

The standard reduction ratio formula is:

Ratio (i) = Motor Input Speed ÷ Gearbox Output Speed

For a 4-pole motor at 1450 r/min and a desired output of 30 r/min:

i = 1450 ÷ 30 = 48.3:1

F series covers ratios from 3.77 to 281.71 for basic units, with combined units reaching up

to 31,434. Always verify torque capacity using:

Output Torque = 9550 × Power × Ratio × Efficiency ÷ Input Speed

F series gear efficiency reaches 96% for two-stage and 94% for three-stage units.
