YS series three-phase gear motor B14, B5, B3 size installation guide

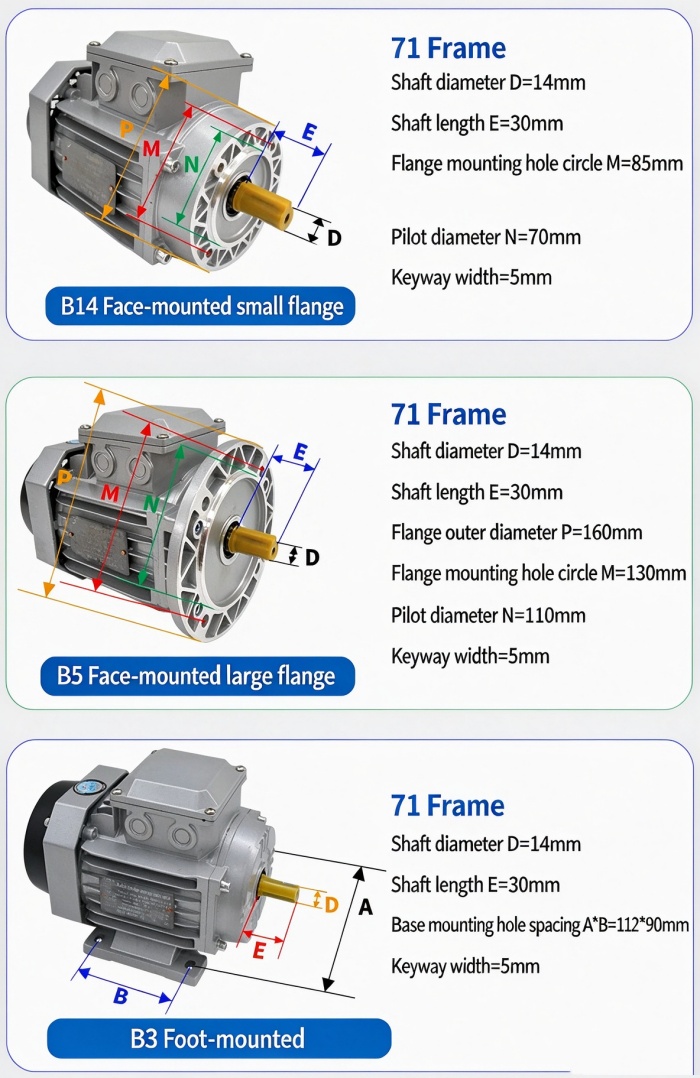

H1: YS 71 Frame Motor Mounting Dimensions: B14, B5, and B3 Configurations
H2:YS series electric motor 71 rack motor output shaft size 2/4/6/8 pole horizontal industrial motor:
| Parameter | Dimension |
|---|---|
| Output Shaft Diameter (D) | 14 mm |
| Shaft Length (E) | 30 mm |
| Keyway Width | 5 mm |
H2: B5 Large Flange (Vertical)
Designed for heavy-duty vertical mounting.
Flange Outer Diameter (P): 160mm
Bolt Hole Distance (M): 130mm
Spigot Diameter (N): 110mm
H3: B3 Foot Mounted (Horizontal)
Standard horizontal installation.
Foot Hole Distance (A*B): 112mm * 90mm
Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
