Assembly and structural types of SWL worm gear screw jack

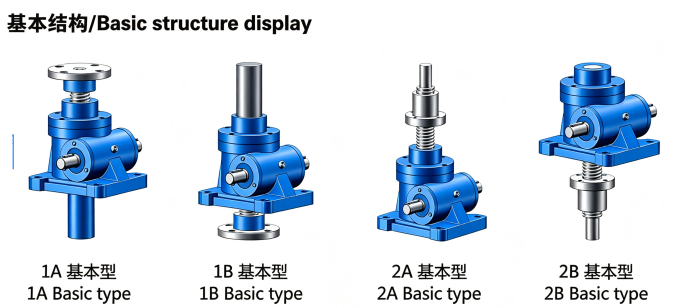

1. Structural type of SWL screw lift

Type 1: A single rod simultaneously rotates and moves axially;

Type 2 threaded rod rotates and the nut on the threaded rod moves axially

SWL turbine lift structure.png

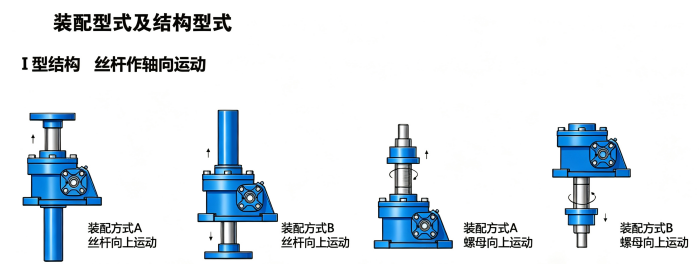

2. SWL series screw jack assembly type

Each structural type of elevator is divided into two assembly types:

A-type threaded rod (or nut) moves upwards;

B-type threaded rod (or nut) moves downward

Assembly form of SWL turbine lift.png
