SWL Series Worm Gear Screw Jack – Complete Technical Specifications & Parameter Table

---

SWL Series Worm Gear Screw Jack – Complete Technical Specifications

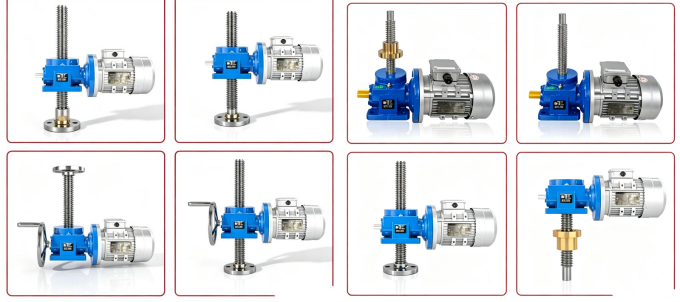

SWL series worm gear screw jack (also known as worm gear screw lift or screw jack). It converts rotational

 motion into linear motion through a worm gear and screw mechanism, providing functions such as lifting,

 pushing, tilting, and height adjustment

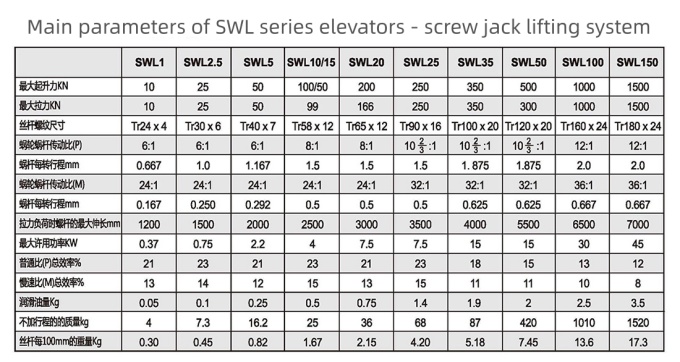

This complete specification reference covers all 11 standard models from SWL2.5 to SWL120, including

 load capacity, thread size, reduction ratio, stroke per revolution, efficiency, weight, etc.

Download Full Specifications

[Download SWL Series Complete Technical Data Sheet (PDF)] – [Request 2D/3D CAD Files]

Need help selecting the right model? Send us your load, stroke, speed, and mounting requirements – our engineering team responds within 24 hours.
