H1: 90mm Micro Gear Motor 40W/60W: Dimensions & Installation Drawing
H2: 90mm Gear Motor Overview

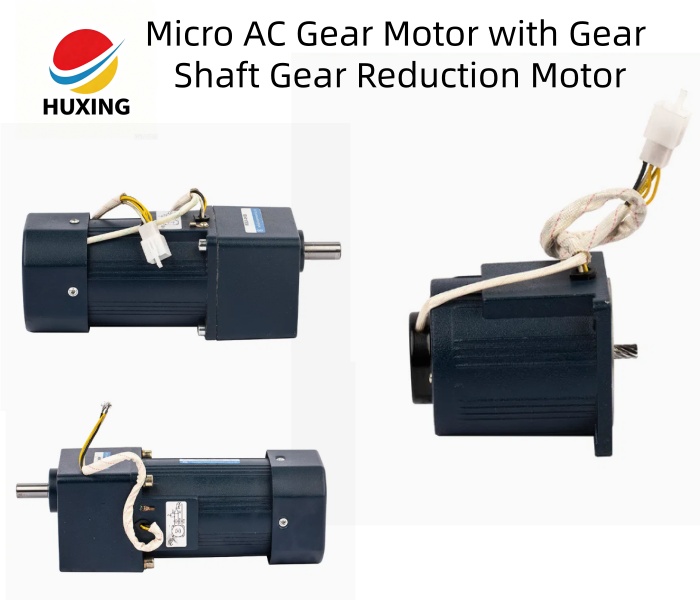

The 90mm micro gear motor series offers 40W and 60W power options. It features a 90x90mm flange and a heavy-duty gearbox. Both horizontal and vertical mounting configurations are available for demanding industrial applications.
H3: Gear Reduction Motor Typical Applications
1.Heavy-duty conveyors
2.Industrial mixers
3.Packaging systems
4.Automated production lines

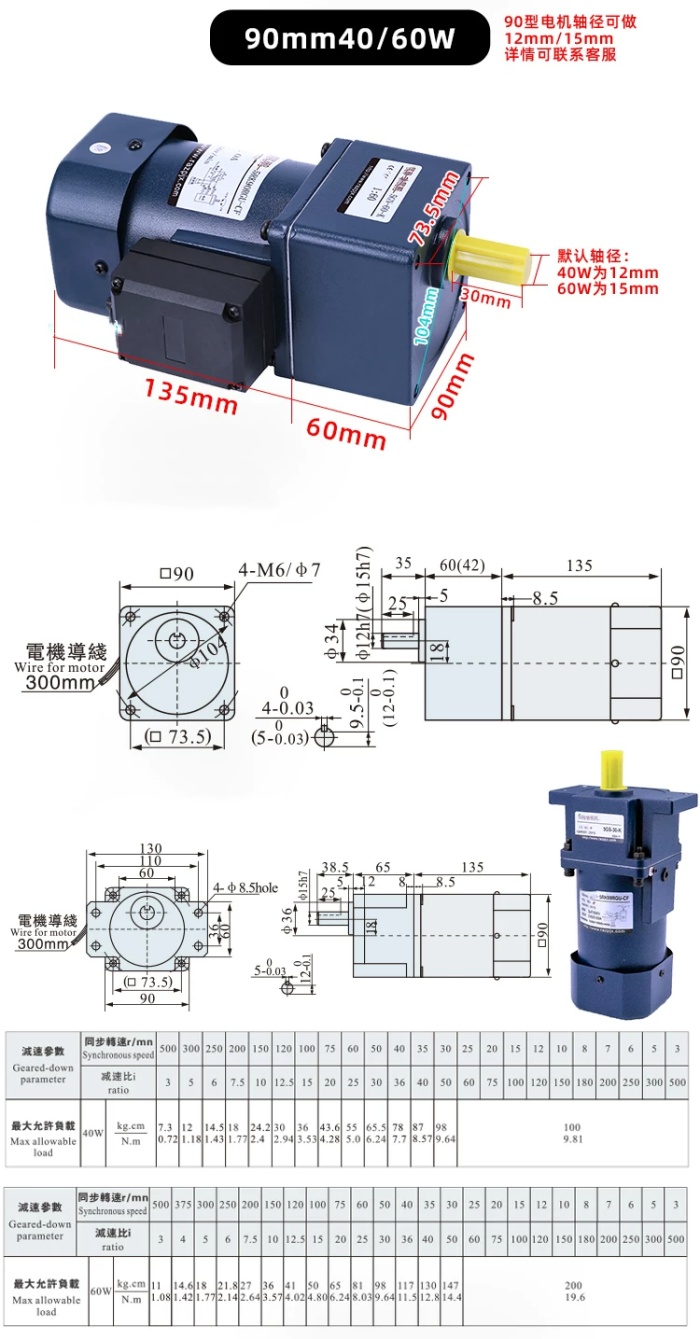

H2: 90mm Gear Motor Dimension Specifications
H3: Shaft Options: 12mm (40W) vs. 15mm (60W)
Flange Size: 90 x 90 mm, mounting hole distance Ø73.5 mm
Shaft: 40W = Ø12 mm, 60W = Ø15 mm, length 30 mm
Body Diameter: Ø90 mm
Gearbox Length: 60 mm (or 42 mm optional)
Motor Body Length: 135 mm
Wiring: Standard 300mm lead wire
H3: Horizontal vs. Vertical Mounting Configurations
Horizontal Type: Standard gearbox orientation
Vertical Type: Includes a 90x90mm top flange for vertical mounting
H2: 90mm Gear Motor Torque & Load Capacity
(See table in drawing for exact values)
| Power | Max Load | Max Load (N.m) |
|---|---|---|
| 40W | 7.3 - 100 | 0.72 - 9.81 |
| 60W | 11 - 200 | 1.08 - 19.6 |
OEM Customization & Inquiry
We support custom shaft sizes, flange modifications, and voltage requirements for the 90mm series. Contact our engineering team to discuss your OEM project.
