90mm Gear Motor 180W: Dimensions & Installation Drawing
H1: 100mm Gear Motor 180W: Dimensions & Installation Drawing
H2: 100mm Gear Motor Overview
The 90mm 180W gear motor is a high-power solution for demanding industrial applications. It features a 90×90mm flange, Ø15mm shaft, and compact gearbox for reliable torque output.
H2: Dimension Specifications

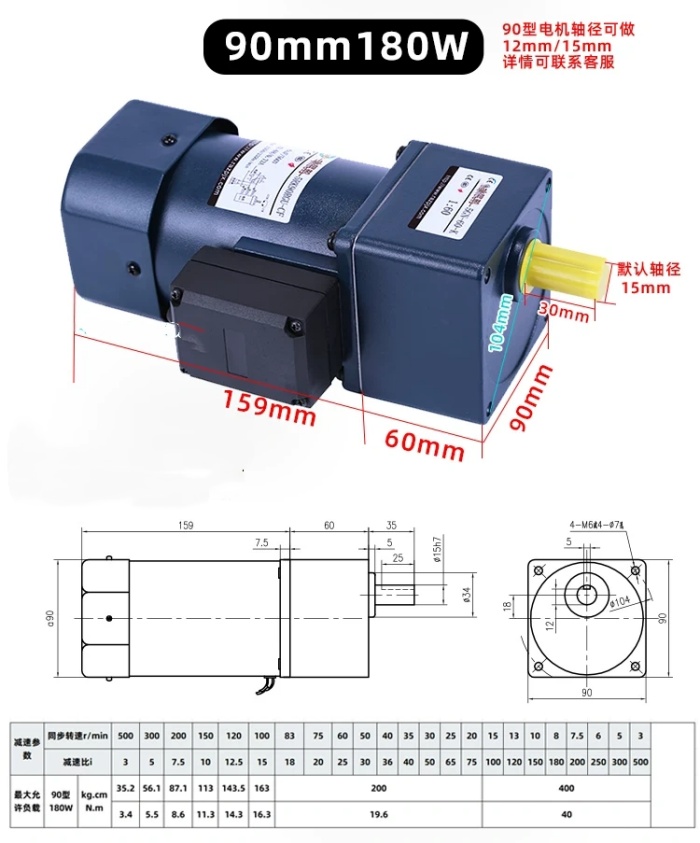

1.Flange Size: 90 × 90 mm
2.Mounting Holes: 4-M6
3.Shaft: Ø15 mm, length 30 mm (default)
4.Gearbox Length: 60 mm
5.Motor Body Length: 159 mm
6.Body Diameter: 90 mm
7.Total Length: Approx. 249 mm (including shaft)
H2: Torque & Load Capacity
| Power | Max Load | Max Load (N.m) |
|---|---|---|
| 180W | 35.2 – 400 | 3.4 – 40 |
H2: Typical Applications
Heavy-duty conveyors
Industrial mixers
Packaging systems
Automated production lines
We provide OEM/ODM services for the 90mm 180W gear motor, including custom shaft, flange, voltage, and gear ratio. Contact us with your technical requirements for a quick quotation.
