80mm Micro Gear Motor 25W/30W/40W: Dimensions & Installation Drawing
H1: 80mm Micro Gear Motor 25W/30W/40W: Dimensions & Installation Drawing
H2: 80mm Gear Motor Overview
This 80mm micro gear motor series delivers 25W, 30W, and 40W power. It features an 80x80mm square
flange, a robust gearbox, and a 10mm shaft. Available in fixed speed and variable speed configurations,
it is ideal for automation, packaging, and medical equipment.
H2: Typical Applications
Industrial automation
Packaging machinery
Conveyor systems
Medical devices
H2: Fixed Speed vs. Variable Speed Dimensions
Flange Size: 80 x 80 mm, mounting hole distance Ø66.5 mm
Shaft: Ø10 mm with 5mm keyway, length 29 mm
Body Diameter: Ø79 mm
Gearbox Length: 43 mm
Motor Body Length: 85 mm
Total Length: Fixed speed: 32+43+85 mm / Variable speed: +12 mm controller
Wiring: Standard 300mm lead wire
H3: 80mm Gear Motor Torque & Load Capacity

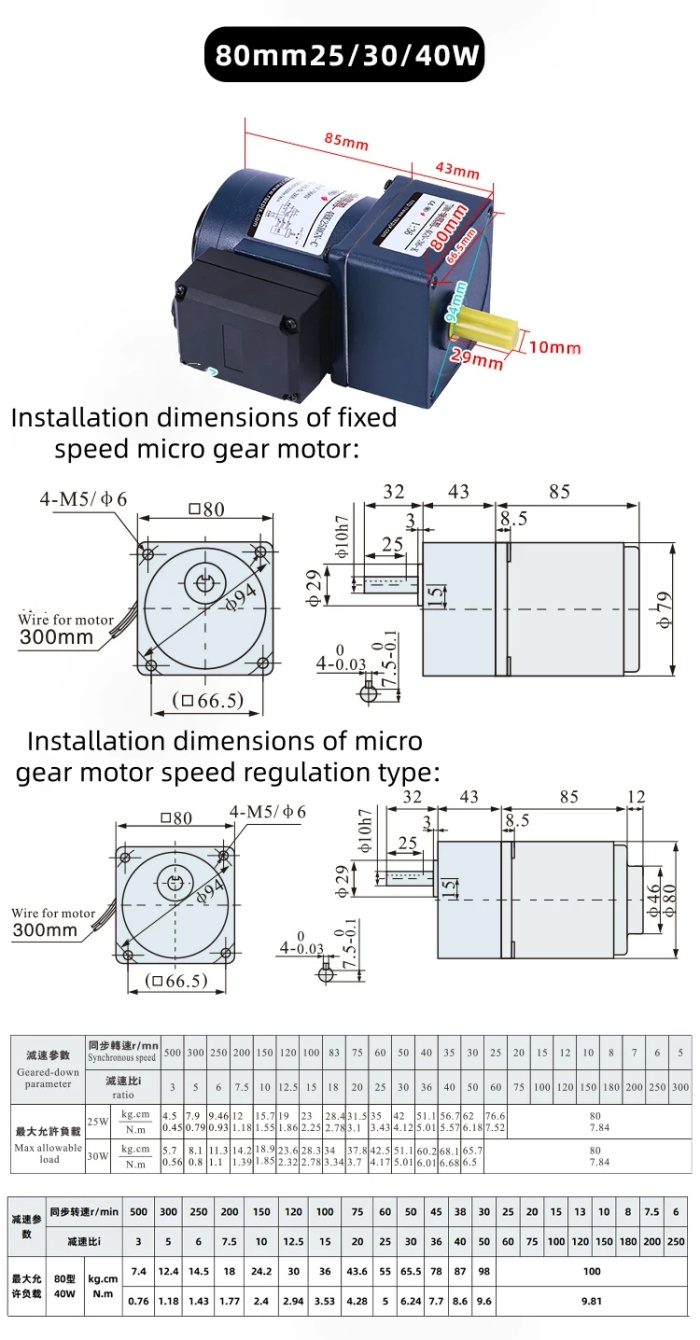

(See table in drawing for exact values)
| Power | Max Load | Max Load (N.m) |
|---|---|---|
| 25W | 4.5 - 80 | 0.45 - 7.84 |
| 30W | 5.7 - 80 | 0.56 - 7.84 |
| 40W | 7.4 - 100 | 0.76 - 9.81 |
We provide full OEM/ODM services, including custom voltage, shaft, wiring, and integrated speed controllers. Send your technical requirements to our engineering team for a tailored solution.
