750W Right Angle Gear Motor: Torque Gauge and Installation Dimensions
H1: 750W Right Angle Gear Motor - Torque Gauge and Installation Dimensions

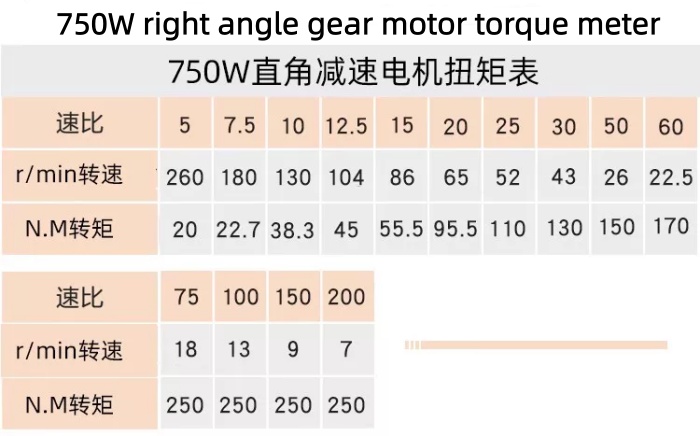

H2: 750W right angle gear motor torque meter
HUXING 750W right angle reduction motor designed specifically for heavy-duty industrial applications
| Ratio | Output Speed (r/min) | Torque (N·m) |
|---|---|---|
| 5 | 260 | 20 |
| 7.5 | 180 | 22.7 |
| 10 | 130 | 38.3 |
| 12.5 | 104 | 45 |
| 15 | 86 | 55.5 |
| 20 | 65 | 95.5 |
| 25 | 52 | 110 |
| 30 | 43 | 130 |
| 50 | 26 | 150 |
| 60 | 22.5 | 170 |
| 75 | 18 | 250 |
| 100 | 13 | 250 |
| 150 | 9 | 250 |
| 200 | 7 | 250 |

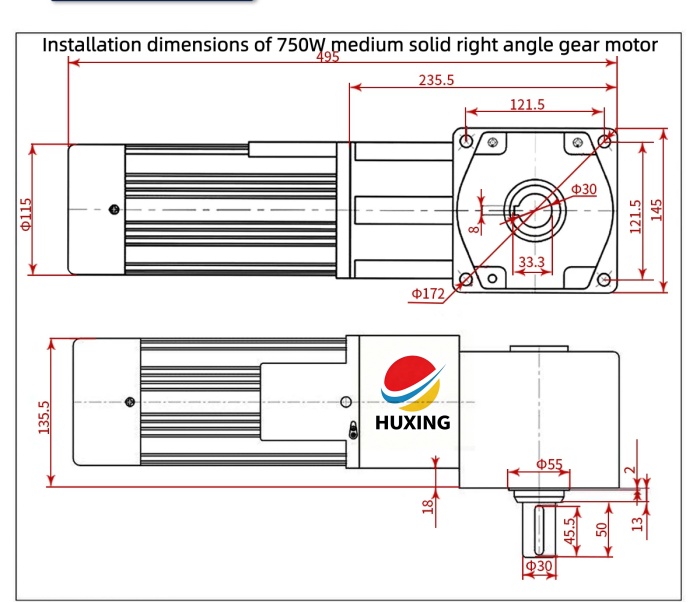

H2: Installation Dimensions of 750W Solid Right Angle Gear Motor
The solid shaft (中实) model provides a robust, direct-drive connection for heavy loads. Key mechanical specifications:
| Parameter | Dimension |
|---|---|
| Overall Length | 495 mm |
| Body Length (from flange) | 235.5 mm |
| Flange Size | 121.5 × 121.5 mm |
| Mounting Holes | 4-Φ11, evenly distributed on Φ172 PCD |
| Output Shaft | Φ30 mm, length 50 mm |
| Keyway | 8 × 45.5 mm |
| Shaft Shoulder | Φ55 mm |
| Center Height | 80 mm |

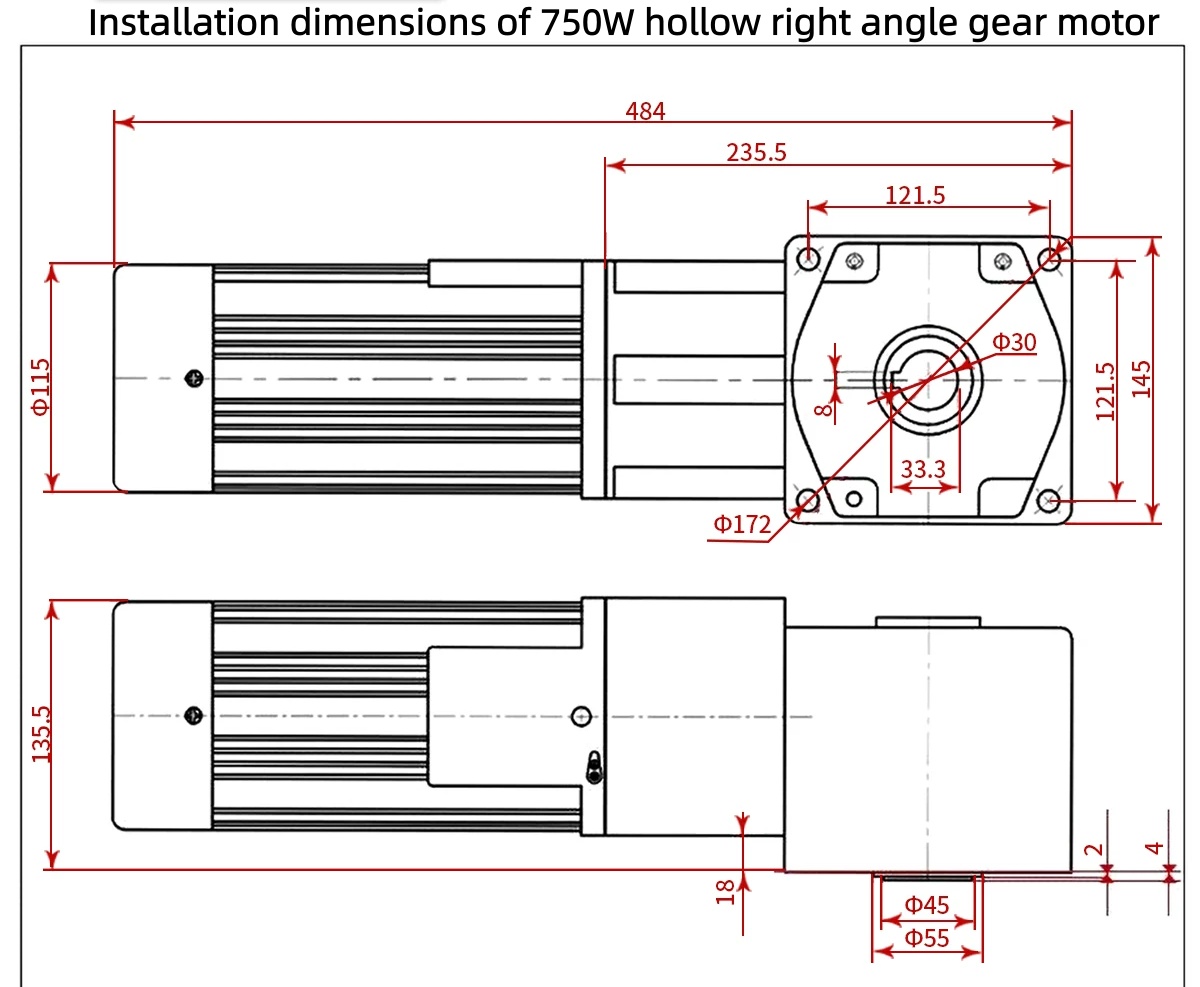

The hollow shaft (空心) model is ideal for space-saving designs where the driven shaft passes directly through the gearbox, eliminating the need for couplings. Key dimensions:
| Parameter | Dimension |
|---|---|
| Overall Length | 484 mm |
| Body Length (from flange) | 235.5 mm |
| Flange Size | 121.5 × 121.5 mm |
| Mounting Holes | 4-Φ11, evenly distributed on Φ172 PCD |
| Hollow Bore | Φ45 mm |
| Outer Shaft Diameter | Φ55 mm |
H2: Need a Custom 750W Right Angle Gear Motor?
Whether you need a solid shaft for high-torque direct coupling or a hollow shaft for compact integration, HUXING provides reliable 750W right angle gear motors with customizable voltages (110V/220V/380V), brake options, and variable speed configurations.
Send our engineering team your required output speed, torque, and shaft type. We will match the exact model and provide a factory-direct quote within 24 hours.
