Speed Control AC Gear Motor – Variable Speed Micro Gear Motor 6W–90W

H1:Speed Control AC Gear Motor – Variable Speed & Precise Regulation

H2: What Is a Speed Control Gear Motor?
A speed control AC gear motor works with an external controller to adjust output speed. It provides smooth speed regulation from 90 to 1400 RPM.

H2: Key Parameters

  • Power: 6W – 90W

  • Speed range: 90–1400 RPM

  • Ratio: 3:1 – 1800:1

  • Voltage: 1-phase 220V, 3-phase 220V/380V

  • Controller: optional

Parameters of Micro AC Gear Motor:

MOTOR FRAME SIZE60 mm / 70mm / 80mm / 90mm / 104mm /120MM
MOTOR TYPE Induction Motor / Reversible Motor / Torque Motor / Speed Control Motor
OUTPUT POWER 6W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W/400W(Can Be Customized)
OUTPUT SHAFT8mm / 10mm / 12mm / 15mm /18mm/22mm Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
Voltage type Single phase 100-240V 50/60Hz; Three phase 200-240V 50/60Hz; Three phase 440-480V 60Hz 4P
Accessories Electric Brake / Fan / Speed Controller / Terminal Box /  Thermal Protector
GEARBOX FRAME SIZE 60 mm / 70mm / 80mm / 90mm / 104mm /120mm
Gear Ratio3K-500K

H3: Applications
Packaging lines, conveyor systems, filling machines, and textile equipment.

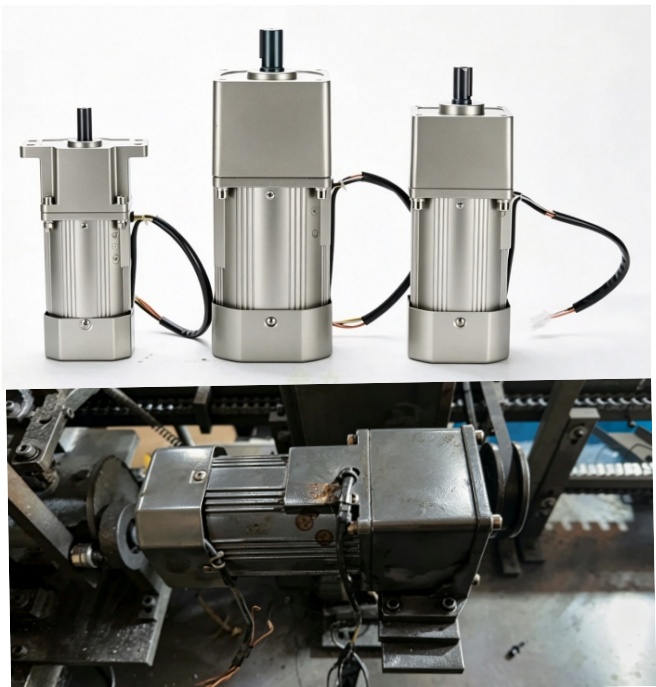

6W-90WSpeed Control AC Gear Motor

Advantages

  • Precise speed control

  • Stable torque at low speed

  • Compact and easy to install

📩 Request a Quote – Provide your required speed range and torque. We will recommend a controller and gear motor within 24 hours.
