6IK200GU Right Angle Gear Motor Advantages Specifications, and Selection Guide
H1:6IK200GU reducer 50HZ/60HZ gear motor advantages:
The highest torque in the 104mm class - the continuous allowable torque required for the load is 31 N · m
Dual voltage flexibility - single-phase 110V/220V and three-phase 220V/380V options cover global power
standards
Built in thermal protector - standard configuration for all 200W models, used for overheat protection
Fan cooling standard - all models above 60W include forced air cooling for continuous operation -1
Provide braking options - electromagnetic brake (M suffix) for holding and positioning applications

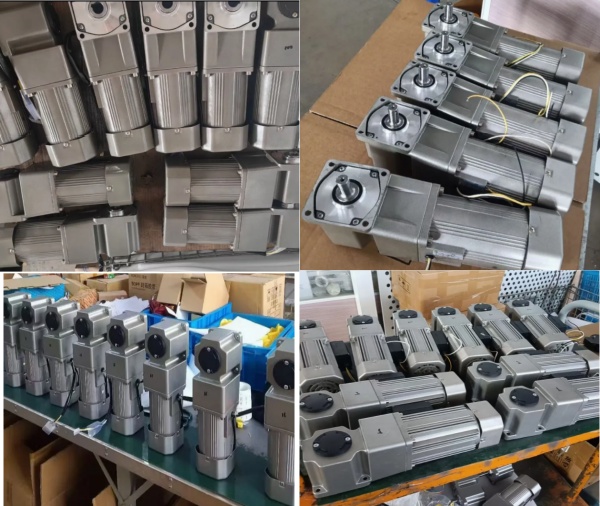

H2:6GU Reinforced Right Angle Spiral Bevel Gearbox
The 6GU gearbox is the core of the 6IK200GU’s right angle drive capability.
Spiral bevel gear design — provides smooth, quiet torque transmission at 90°
Reinforced gear construction — alloy steel gears, hardened for higher load capacity
Compact 90° layout — reduces machine length and simplifies belt, chain, or roller drive routing
Gear ratio range — 3:1 to 300:1 for precise speed/torque matching
H2:110V/220V/380V gear motor configuration options
| Configuration | Motor Model Example | Gearbox Model Example | Shaft Type |
|---|---|---|---|
| 200W, 110V, 10:1, solid shaft | 6IK200GU-AFT | 6GU10RT | Φ20mm keyway |
| 200W, 110V, 15:1, solid shaft | 6IK200GU-AFT | 6GU15RT | Φ20mm keyway |
| 200W, 220V, 20:1, hollow shaft | 6IK200GU-CF | 6GU20RC | Φ22mm bore |
| 200W, 380V, 30:1, solid shaft | 6IK200GU-S3FT | 6GU30RT | Φ20mm keyway |
H3:6IK200GU vs 120W & 140W Models
| Parameter | 120W 6IK120GU | 140W 6IK140GU | 200W 6IK200GU |
|---|---|---|---|
| Max Permissible Torque | ~20 N·m | ~20 N·m | 31 N·m |
| Rated Torque | ~6.2 N·m | ~9.7 N·m | ~13.4 N·m at 10:1 |
| Body Length | ~285mm | ~285mm | ~331mm |
| Best For | Light-medium duty | Medium duty | Heavy duty |
