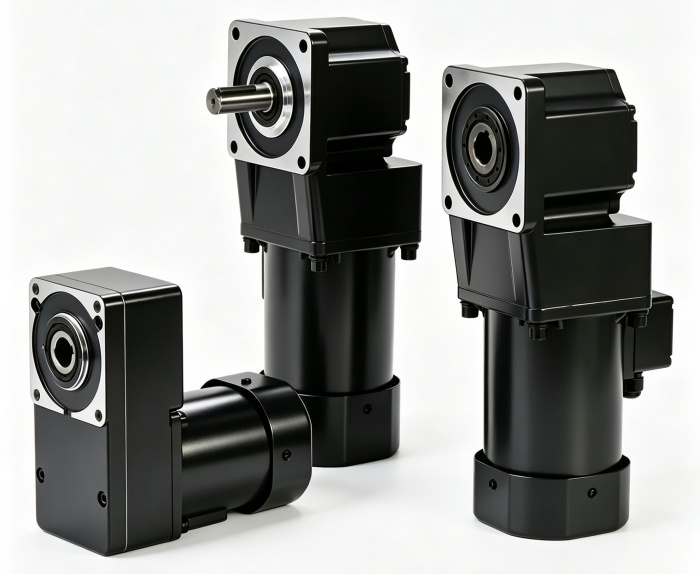

The 6IK120GU series is a 120W AC induction gear motor built on the 104×104mm frame, paired with the reinforced 6GU right angle spiral bevel gearbox. Its 90° output configuration allows the motor to sit perpendicular to the driven shaft, saving significant installation space in conveyor, packaging, and automation equipment.
H2:Hollow shaft right angle gear motor 220V 180W motor gearbox

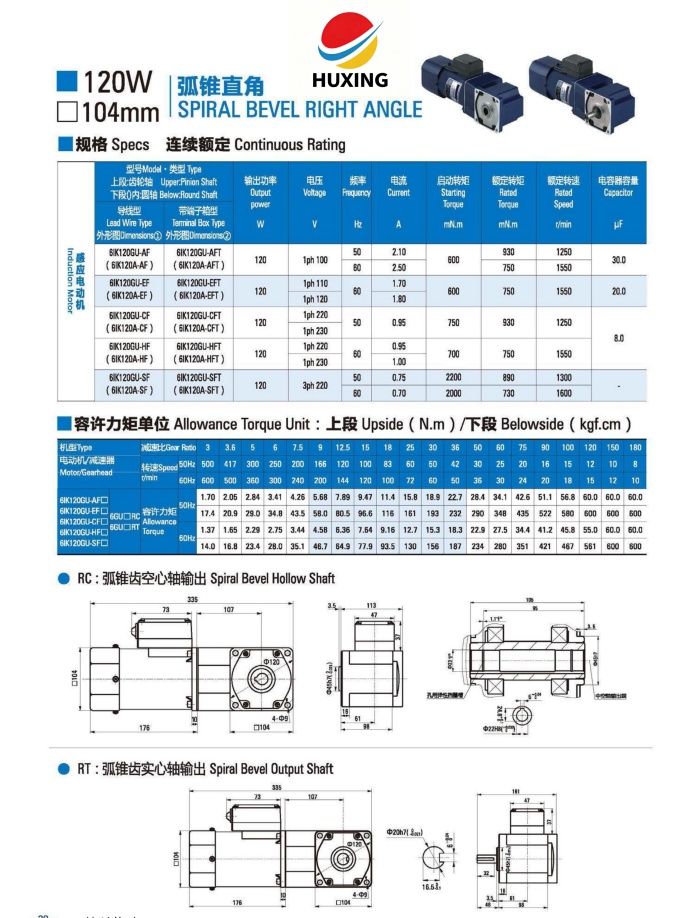

H2:Specification for hollow solid right angle AC gear motor
| Parameter | 6IK120GU-AF (1PH 110V) | 6IK120GU-CF (1PH 220V) | 6IK120GU-SF (3PH 220/380V) |
|---|---|---|---|
| Output Power | 120W | 120W | 120W |
| Voltage | 1PH 110VAC | 1PH 220VAC | 3PH 220V/380VAC |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated Speed | 1300/1600 rpm | 1300/1600 rpm | 1300/1600 rpm |
| Rated Torque | 6.3 kg·cm | 6.3 kg·cm | 7 kg·cm |
| Rated Current | 3A | 1.5A | 0.47/0.42A |
| Capacitor | 30μF | 6μF | — |
| Duty | Continuous | Continuous | Continuous |
Gearbox Specifications (6GU Series)
| Parameter | Value |
|---|---|
| Gearbox Frame Size | 104mm |
| Gear Ratio Range | 3:1 – 200:1 (standard); up to 1800:1 with intermediate gearbox |
| Output Shaft — Solid (RT) | Φ20mm keyway shaft |
| Output Shaft — Hollow (RC) | Φ22mm hollow bore |
| Gear Type | Reinforced spiral bevel |
| Mounting | 90° right angle |
AC gear motor widely used in Industrial equipment, machine tools, agricultural appliances, commercial
office, medical equipment, household appliances, aviation and other fields. Such as treadmill, sewing
machine, meat grinder , tortilla press maker, Apparel Machine, Textile Machine, Metal Coating Machinery,
Pumps, Sprayers, heavy mine equipment, Packing Machine, nebulizer, table fan, Face Mask Machine,
Rehabilitation Therapy Supplies, refrigerator, Air Purifiers, Fermenting Equipment. and many more.
Note: Actual output speed is 10–20% lower than synchronous speed under rated load. A grey background in the original torque table indicates output rotation in the same direction as the motor shaft.
