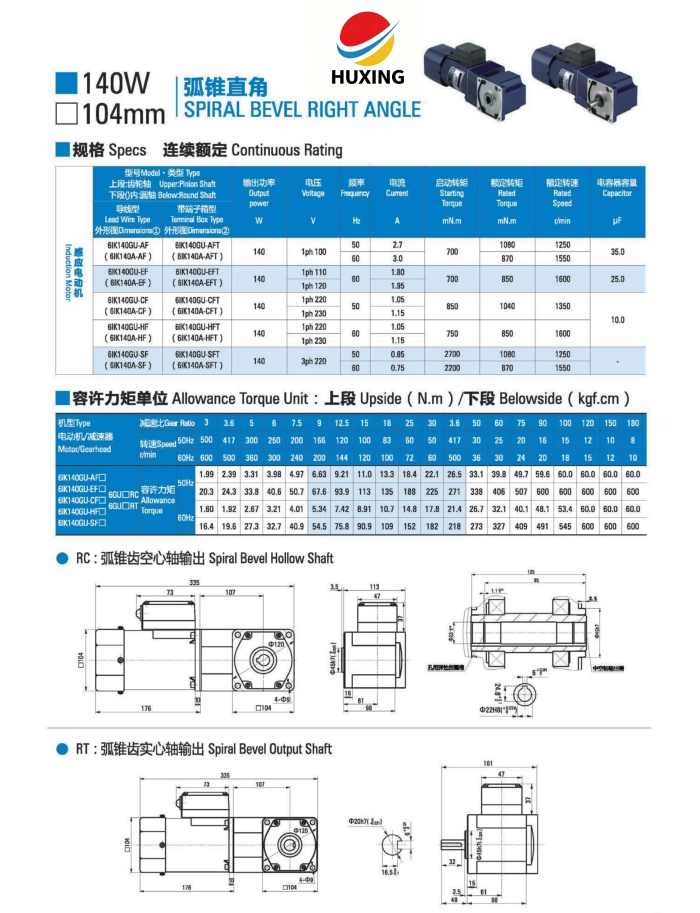

140W 104mm Right Angle Gear Motor - 6IK140GU Series Specifications
H1:140W 104mm right angle gear motor -6IK140GU reducer series size specifications
The 6IK140GU sits between the 120W and 200W models, offering a 17% power increase over the 120W unit while maintaining the same 104mm frame footprint. It pairs with the 6GU gearbox for high-torque right angle drive in space-constrained installations.
H2:6IK140GU Reduction Gear Motor Specification
| Parameter | 6IK140GU-AF (1PH 110V) | 6IK140GU-CF (1PH 220V) | 6IK140GU-SF (3PH 220V) | 6IK140GU-UF (3PH 380V) |
|---|---|---|---|---|
| Output Power | 140W | 140W | 140W | 140W |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Rated Speed | 1300 rpm | 1300 rpm | 1300 rpm | 1300 rpm |
| Rated Torque | 990 mN·m | 990 mN·m | 990 mN·m | 990 mN·m |
| Starting Torque | 900 mN·m | 900 mN·m | 2500 mN·m | 2500 mN·m |
| Rated Current | 2.0A | 1.13A | 0.95A | 0.55A |
| Capacitor | 32μF/250VAC | 7μF/450VAC | — | — |
H2:Gearbox Specifications
| Parameter | Value |
|---|---|
| Gearbox Model | 6GU (reinforced) |
| Frame Size | 104mm |
| Gear Ratios | 3:1 – 300:1 |
| Hollow Shaft (RC) | Φ22mm bore |
| Solid Shaft (RT) | Φ20mm keyway |
| Gear Material | Alloy steel, hardened |
| Gear Type | Gleason spiral bevel |
Note: The torque value of Dc Electric Gear Motor/Micro Electric Dc Motor is the allowable torque. The actual output speed varies by 2-20% with the load. 60Hz operation shifts the output speed by 1.2 times.Torque values are permissible torque. Actual output speed varies by 2–20% with load. 60Hz operation shifts output speeds by a factor of 1.2.
