H1:60W right angle reduction motor 5IK60GN motor gearbox size parameters
The 5IK60GN delivers 60W at 1350 rpm rated speed, with the 5GN gearbox supporting ratios from 7.5:1 to 640:1. Both hollow (RH) and solid (RS) shaft configurations are available.

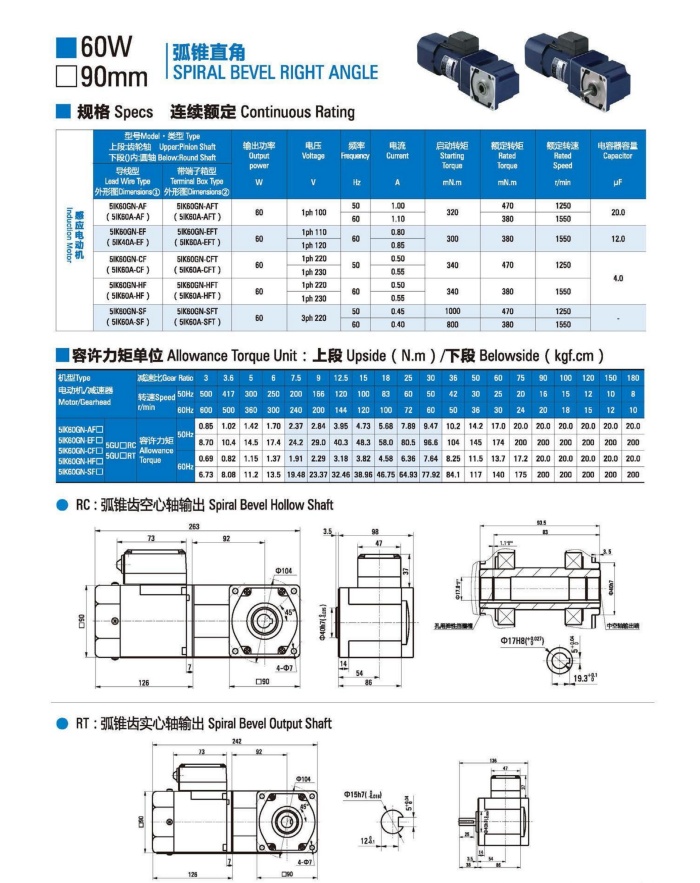

H2:60W 90mm mid air actual shaft 90 degree angle adjustable right angle gear reducer motor size parameters:
| Parameter | 5IK60GN-S3F / 5GN7.5-640RH | 5IK60GN-SF / 5GN7.5-640RS |
|---|---|---|
| Power | 60W | 60W |
| Voltage | 3AC 220V/380V | 3AC 220V/380V |
| Rated Speed | 1350 rpm | 1350 rpm |
| Gear Ratio | 7.5:1 – 640:1 | 7.5:1 – 640:1 |
| Output Type | Right angle hollow | Right angle solid |
| Shaft Diameter | Φ12mm | Φ12mm |
| Protection | IP54 | IP54 |
| Insulation | Class F | Class F |
Note: Three-phase models are not speed-adjustable via controller; use a VFD for variable speed operation.
