Parameters of 220V 40W Adjustable Speed Gear Motor
What is AC gear motor?
An AC gear motor is an integrated device that combines an alternating current (AC) electric motor with a gear reduction system. This combination allows the motor to reduce speed while increasing torque, making it suitable for applications requiring low-speed operation with high torque output. AC gear motors are widely used in various industrial and commercial applications due to their reliability, efficiency, and ease of use.

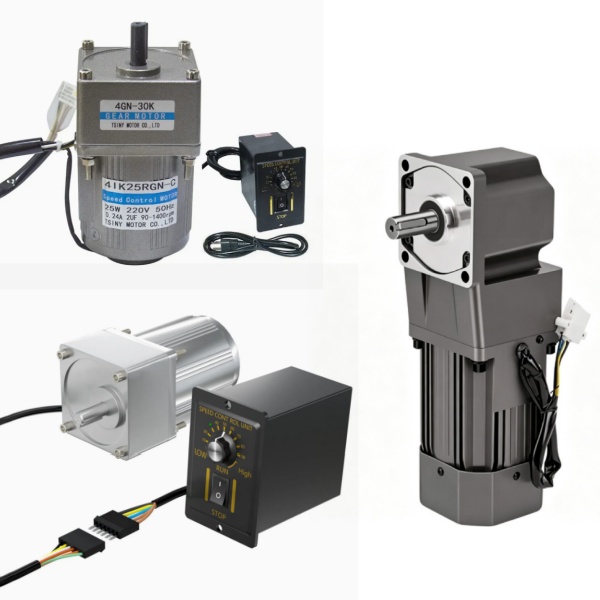

220V 40W reversible gear motor and speed controller specifications:
| tem | Small AC Gear Motor |
| Output Power | 40W |
| AC Voltage | 110V, 220V, 380V AC (Optional) |
| Gearbox | 80*80mm Spur gearbox |
| Current | 0.26A |
| Phase | Single-phase |
| Rated Torque | 170mN.M |
| Rated Speed | 1400r/min |
| Output Speed | 2RPM-700RPM |
| Reduction Ratio | 2K-750K (Optional) |
✅ Key judgment points for selection of 220V/380V gear motor
First determine the installation boundary: prioritize confirming the maximum motor diameter and length that can be accommodated inside the equipment, with common mainstream specifications concentrated in the diameter range of 12-36mm.
Matching torque speed: output torque ≈ motor rated torque × reduction ratio × transmission efficiency. The larger the reduction ratio, the lower the speed and the greater the torque. It can be directly calculated in reverse according to the load demand.
Choose the right type of motor: choose brushed models for short-term intermittent work, prioritize brushless models for long-term continuous operation, and directly choose 220V AC models for industrial constant speed scenarios.
Additional function confirmation: Frequent start stop requires electromagnetic braking module, precise speed regulation can be matched with integrated encoder and drive board, and models with protection level of IP54 or above are selected for humid and dusty environments.
