400W Right Angle Gear Motor - Torque Gauge and Installation Dimensions

---

H1: 400W Right Angle Gear Motor/Spiral Reduction Motor - Torque Gauge and Installation Dimensions

H2: 400W vertical reduction motor torque meter

The HUXING series provides high torque output in a compact 90 ° layout. The following are precise torque performance data for various transmission ratios ranging from 1:5 to 1:200.

Ratio	Output Speed (r/min)	Torque (N·m)
5	260	10.2
7.5	180	12.7
10	130	18.3
12.5	104	20.4
15	86	25.5
20	65	35.5
25	52	40.5
30	43	48
50	26	83.7
60	22.5	102
75	18	127
100	13	170
150	9	250
200	7	250

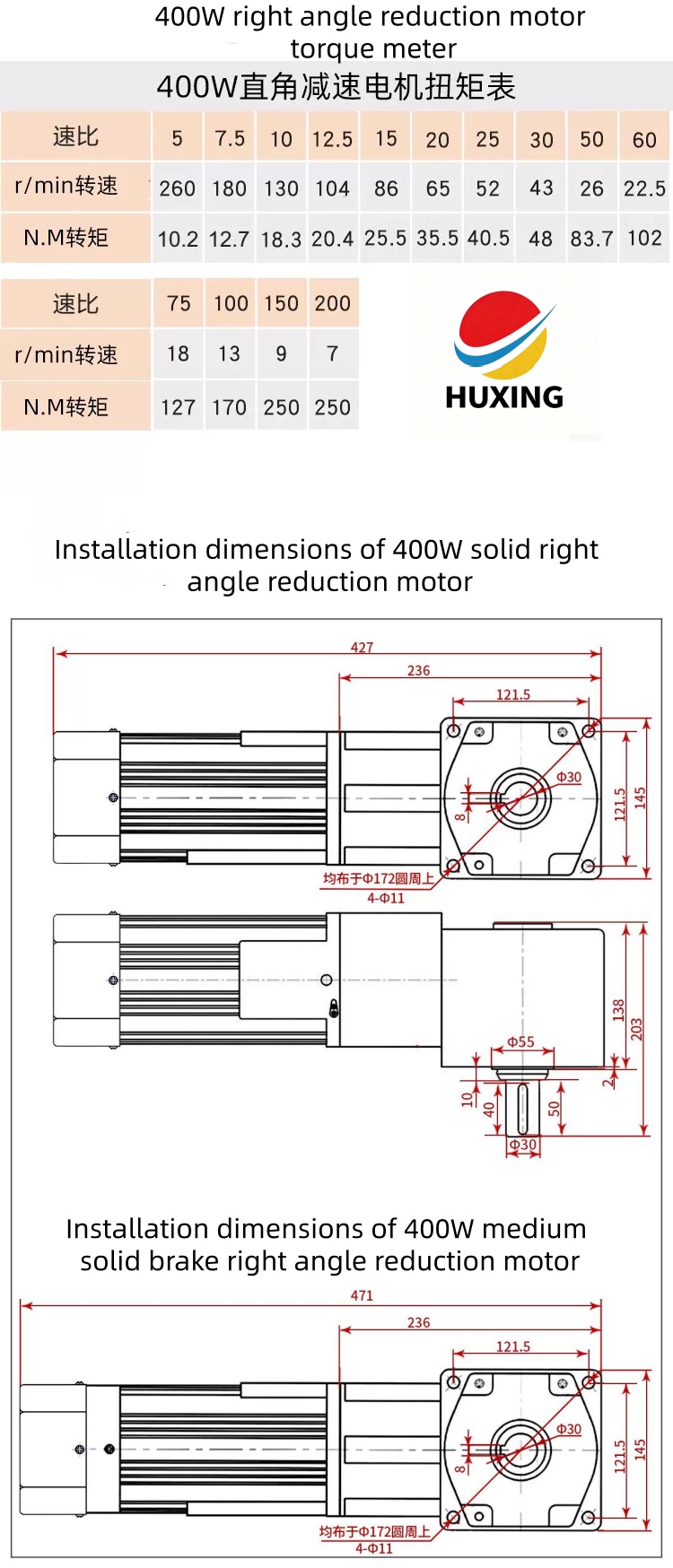

H2: Installation Dimensions of 400W Solid Right Angle Reduction Motor

The standard 400W solid shaft model offers a robust, space-saving footprint. Key mechanical specs:

Parameter	Dimension
Overall Length	427 mm
Body Length (from flange)	236 mm
Flange Size	121.5 × 121.5 mm (Total height: 145 mm)
Mounting Holes	4-Φ11, evenly distributed on Φ172 PCD
Output Shaft	Φ30 mm, length 50 mm, keyway 8×40 mm
Shaft Shoulder	Φ55 mm
Center Height	80 mm
Overall Height	203 mm (Body: 138 mm)

H2: Upgrade Your Automation with HUXING 400W Motors

Whether you are designing a heavy-duty conveyor, packaging line, or automated feeding system, the HUXING 400W right angle gear motor provides the torque density and mounting flexibility you need

Do you need dimension drawings and 3D models, product catalogs, or customized scale quotations? Please fill in the required model, power, and installation type, and our engineers will reply to you within 24 hours.
