370W right angle gear motor torque meter and installation dimensions
H1: 370W Right Angle Gear Motor - Torque Gauge and Installation Dimensions
370W right angle gear motor (also known as solid shaft right angle reduction motor/solid shaft right angle gear motor), with a 90 ° output that can redirect power vertically or horizontally.
H2: 370W right angle gear motor (50 Hz) torque meter
Typical value of 370W induction motor (1400 rpm input, 50 Hz). The torque data follows the standard motor reducer combination of this framework size
Gear Ratio | Output Speed (rpm) | Rated Torque (N·m) |
5 | 280 | 12.8 |
6 | 233 | 15.4 |
7.5 | 187 | 19.2 |
10 | 140 | 25.7 |
12.5 | 112 | 32.1 |
15 | 93.3 | 38.5 |
20 | 70 | 51.3 |
25 | 56 | 64.1 |
30 | 46.7 | 77.0 |
36 | 38.9 | 92.3 |
50 | 28 | 128 |
60 | 23.3 | 154 |
75 | 18.7 | 192 |
90 | 15.6 | 230 |
100 | 14 | 250 |
Note: Torque above ~100 N·m requires verification of the max permissible torque for your specific gearbox series. Always confirm with the manufacturer before orderin

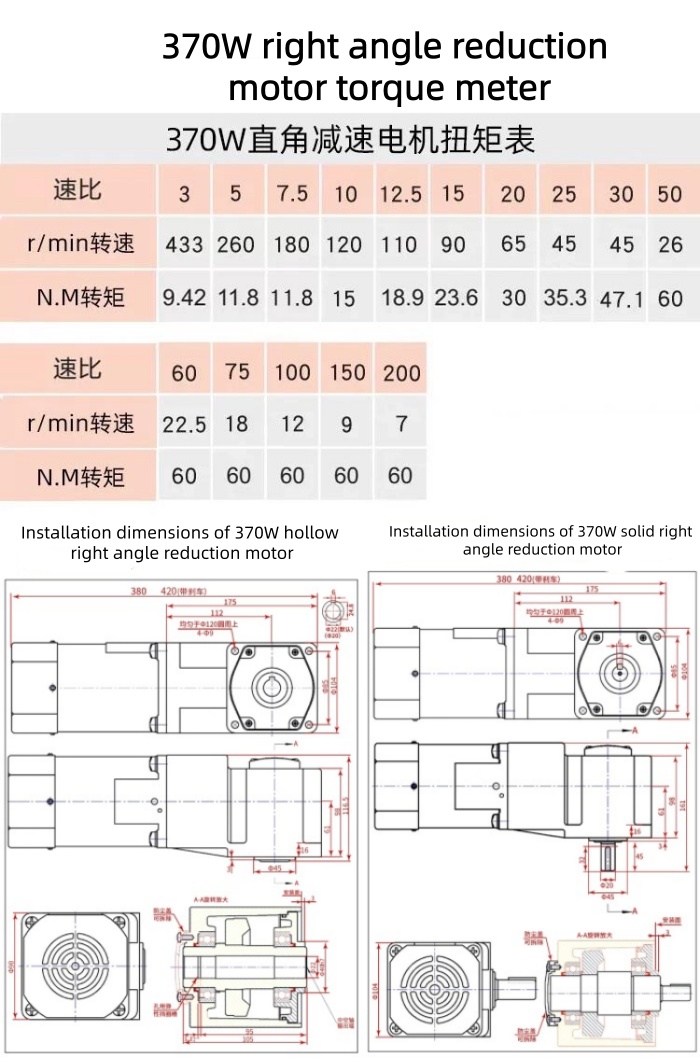

H2: Mounting Dimensions
The 370W right angle gear motor is available in two common flange configurations. Both use a 4-hole square flange and a hollow or solid output shaft.
Standard 100 mm Frame (compact)
Parameter | Dimension |
Motor frame | 100 × 100 mm square |
Flange mounting holes | 4 × M8, 100 mm bolt circle |
Output shaft (solid) | Ø15–20 mm, keyed |
Output shaft (hollow) | Ø20–25 mm bore, keyway per DIN 6885 |
Overall body length | ~185–200 mm |
145 mm Frame (high-torque)
Parameter | Dimension |
Motor frame | 145 × 145 mm square |
Flange mounting holes | 4 × M10, 145 mm bolt circle |
Output shaft (solid) | Ø20–25 mm, keyed |
Output shaft (hollow) | Ø25–30 mm bore |
Overall body length | ~230–250 mm |
H2: Typical Applications
This 370W right angle gear motor is widely used in:
Conveyor systems — direction changes, space-saving transport mechanisms
Packaging machinery — carton erectors, labeling stations, film feed drives
Automated feeding equipment — vibratory feeders, part orienting systems
Food processing lines — mixers, fillers, and hygienic conveyor drives
H2: Need a Quote or Custom Configuration?
We supply 370W right angle gear motors in induction, reversible, brake, and variable-speed versions, with custom ratios, shaft types (hollow/solid/keyed), and voltage options (single-phase 110V/220V or three-phase 220V/380V). Send your torque requirement, output speed, and mounting constraints — our engineering team will match the exact ratio and shaft configuration for your application.
