The 4IK25GN series pairs a 25W single-phase AC induction motor with the 4GN right angle gearhead in an 80×80mm frame. The 90° spiral bevel design delivers compact, high-torque drive at reduced footprint compared to parallel-shaft alternatives

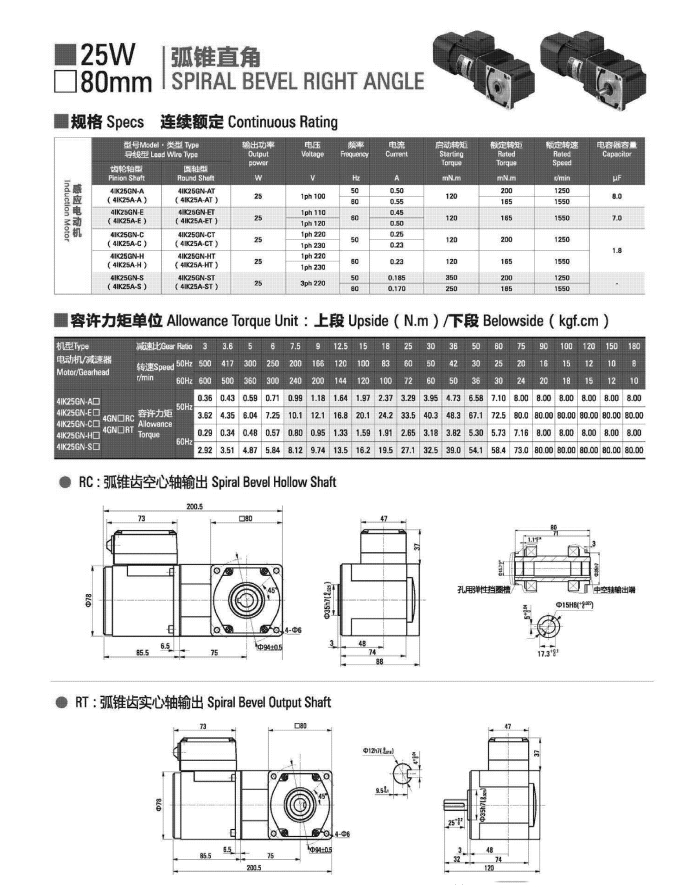

H2:Technical parameters and drawings of 25W gear reducer
| Parameter | 4IK25GN-CT / 4GN50RT | 4IK25GN-AT / 4GN30RT | 4IK25GN-AT / 4GN15RC |
|---|---|---|---|
| Output Power | 25W | 25W | 25W |
| Voltage | 1PH 220VAC | 1PH 110VAC | 1PH 110VAC |
| Frequency | 50Hz | 60Hz | 60Hz |
| Gear Ratio | 50:1 | 30:1 | 15:1 |
| Output Speed | 27 rpm | 45 rpm | 90 rpm |
| Rated Torque | 6.50 N·m | 3.90 N·m | 1.90 N·m |
| Output Shaft | Keyway Φ12mm | Keyway Φ12mm | Hollow Φ15mm |
| Capacitor | 1.8μF/450VAC | 7.0μF/250VAC | 7.0μF/250VAC |
| Weight | 3.7kg | 3.7kg | 3.6kg |
Available Gear Ratios: 4GN3K through 4GN200K (3:1 to 200:1)
Selection Tip: For hollow-shaft applications, choose the RC variant; for keyed shaft coupling, select the RT variant.
