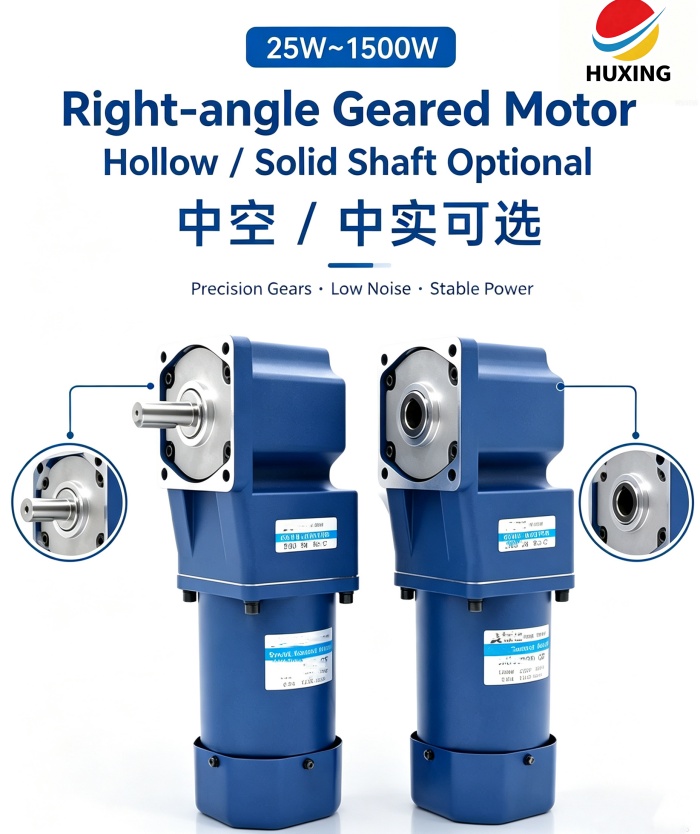

High precision, low noise 25W-1500W hollow solid shaft right angle gear motor
H1:Product Introduction of 25W-1500W Hollow Solid Shaft Right Angle Gear Motor
H2:hollow solid shaft gear motor Wide Power Range: 25W to 1500W: 25W to 1500W
This platform is designed to scale with your application. Whether you are building a small labeling machine or a heavy-duty industrial mixer, there is a model for your torque and speed requirements.
| Power Range | Frame Size (Typical) | Max Output Torque | Typical Applications |
|---|---|---|---|
| 25W – 60W | 60mm – 80mm | 5 – 15 N·m | Small conveyors, lab equipment, medical devices |
| 90W – 200W | 90mm – 104mm | 20 – 31 N·m | Packaging lines, automated storage, food machinery |
| 400W – 750W | 120mm – 150mm | 50 – 100 N·m | Heavy conveyors, industrial mixers, agitators |
| 1000W – 1500W | 150mm+ | 150 – 300+ N·m | High-torque industrial drives, mining, heavy automation |
H2:How to Select: Hollow Shaft vs Solid Shaft
| Application Scenario | Recommended Shaft Type | Why? |
|---|---|---|
| Conveyor roller drive (direct mount) | Hollow Shaft (RC) | Saves space, eliminates chains, no extra bearing seat needed |
| Chain or belt drive with pulleys | Solid Shaft (RT) | Standard keyway, easy coupling, high radial load capacity |
| Tight machine layouts | Hollow Shaft (RC) | Reduces axial length by up to 40% |
| High overhung loads | Solid Shaft (RT) | Robust support for side loads from belts/sprockets |
H3:Typical Applications for 25W–1500W Right Angle Gear Motors
Conveyor Systems: Direct drive for belt and roller conveyors in logistics and warehousing.
Packaging Machinery: Infeed/outfeed drives, labeling heads, and case packers.
Food & Beverage: Mixers, filling machines, and washdown environments (IP54 rated).
Automated Storage & Retrieval (AS/RS): Compact, reliable power for pallet shuttles and lifts.
Industrial Automation: Indexing tables, rotary actuators, and material handling arms.
Frequently Asked Questions (FAQ)
Q1: Can the 5IK120RGU-CF motor run continuously?
A: Yes, it is rated for continuous duty. The built-in fan ensures proper heat dissipation during extended operation.
Q2: What is the difference between RC and RT in the gearbox model?
A: RC stands for Right Angle Hollow Shaft (中空), while RT stands for Right Angle Solid Shaft (中实). Both share the same gearbox housing and ratios.
Q3: Is a speed controller included?
A: The "R" in 5IK120RGU indicates it is a speed control motor. An external speed controller (e.g., FS-02 series) is required to adjust the speed. If you need fixed speed, choose the constant speed model (without "R").
Q4: Can I get a brake for this motor?
A: Yes, electromagnetic brake models are available. Add the "M" suffix when ordering (e.g., 5IK120RGU-CMF).
Q5: What voltages are available?
A: We offer single-phase 110V/220V and three-phase 220V/380V configurations for global compatibility.
Need Help Selecting the Right 25W–1500W Right Angle Gear Motor?
Our application engineers can help you calculate torque requirements, choose the correct gear ratio, and select between hollow and solid shaft options to fit your machine perfectly
