200W 104mm Right Angle Gear Motor — 6IK200GU Series Full Specifications
H1:200W 104mm right angle gear motor-6IK200GU series gearbox full
specifications
The 6IK200GU is the highest-power 104mm right angle gear motor in the 6GU family, delivering up to 31 N·m of output torque at 30:1 reduction. It is engineered for heavy-duty conveyor, packaging, and industrial automation applications where high torque density and 90° drive orientation are required.

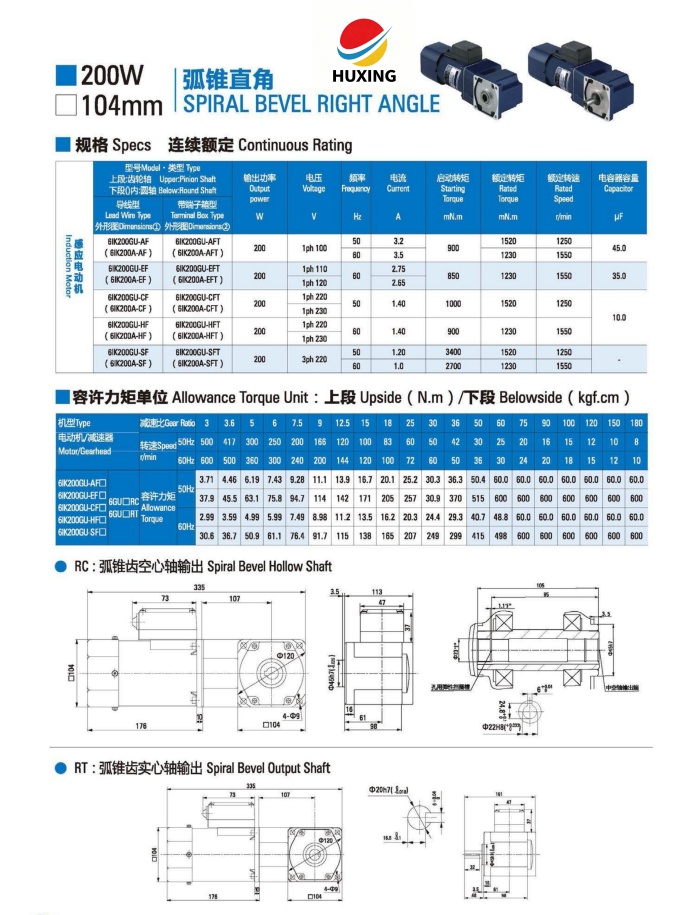

H2:Gear Reducer Motor Specifications
| Parameter | 6IK200GU-AF (1PH 110V) | 6IK200GU-CF (1PH 220V) | 6IK200GU-SF (3PH 220V/380V) |
|---|---|---|---|
| Output Power | 200W | 200W | 200W |
| Voltage | 1PH 110VAC | 1PH 220VAC | 3PH 220V/380VAC |
| Frequency | 60Hz | 50/60Hz | 50/60Hz |
| Rated Speed | 1350 rpm | 1300/1600 rpm | 1300/1600 rpm |
| Rated Current | 2.70A | 1.5A | 1.17/0.66A |
| Capacitor | 20μF/250VAC | 8μF/450VAC | — |
| Duty | Continuous | Continuous | Continuous |
H2：Gearbox Specifications (6GU Series)/
220V 380V Right Angle Gear Motor with Teminal Box with Fan
| Parameter | Value |
|---|---|
| Gearbox Frame Size | 104mm |
| Gear Ratio Range | 3:1 – 300:1 |
| Output Shaft — Solid (RT) | Φ20mm keyway, 48mm length |
| Output Shaft — Hollow (RC) | Φ22mm bore |
| Gearbox Type | Right angle spiral bevel |
| Body Length (motor + gearbox) | 331mm |
| Weight | 9.69kg (approx.) |
