H1: 100mm Gear Motor 120W/140W: Dimensions & Installation Drawing
H2: 100mm Gear Motor Overview
This 100mm gear motor series offers 120W and 140W power. It features a 104×104mm flange, Ø15mm shaft, and heavy-duty gearbox. Ideal for industrial automation, conveyors, and packaging machinery.
H2: Typical Applications
Industrial conveyors
Packaging machinery
Automatic production lines
Material handling equipment

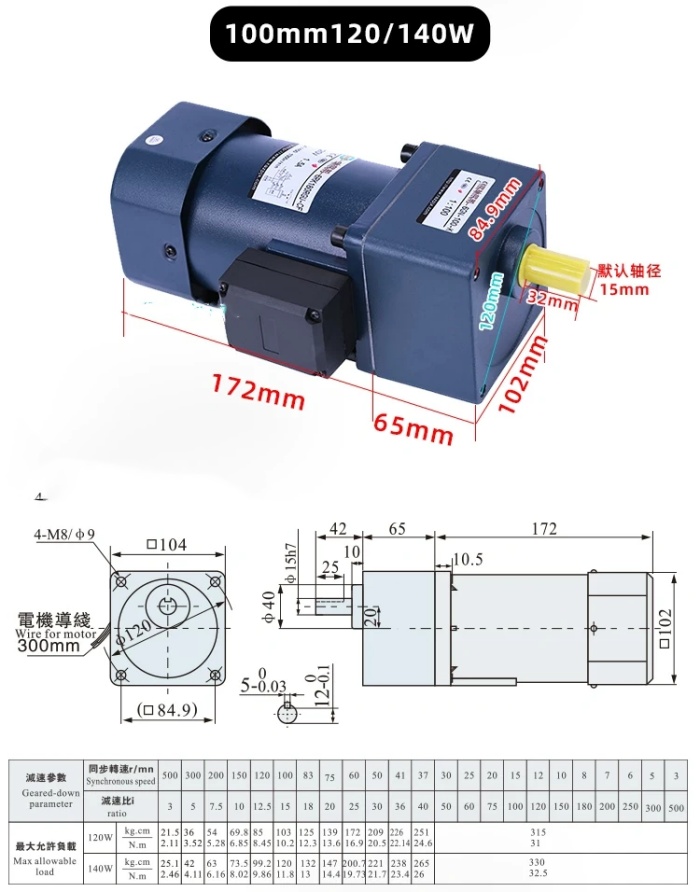

H2: Dimension Specifications
Flange Size: 104 × 104 mm
Mounting Holes: 4-M8 / Ø9, hole distance 84.9 mm
Shaft: Ø15 mm, length 32 mm (default)
Gearbox Length: 65 mm
Motor Body Length: 172 mm
Body Diameter: 102 mm
Total Length: Approx. 279 mm (excluding shaft)
Wire Length: 300 mm
Flange Size: 104 × 104 mm
Mounting Holes: 4-M8 / Ø9, hole distance 84.9 mm
Shaft: Ø15 mm, length 32 mm (default)
Gearbox Length: 65 mm
Motor Body Length: 172 mm
Body Diameter: 102 mm
Total Length: Approx. 279 mm (excluding shaft)
Wire Length: 300 mm
H2: Torque & Load Capacity
| Power | Max Load | Max Load (N.m) |
|---|---|---|
| 120W | 21.5 – 315 | 2.11 – 31 |
| 140W | 25.1 – 330 | 2.46 – 32.5 |
H2: OEM Customization & Inquiry
We support custom voltage, shaft, flange, gear ratio, and wiring for 120W/140W gear motors. Send your specifications to our engineering team for a tailored solution.
