120W 90mm Right Angle Gear Motor — 5IK120GN Series Full Specifications

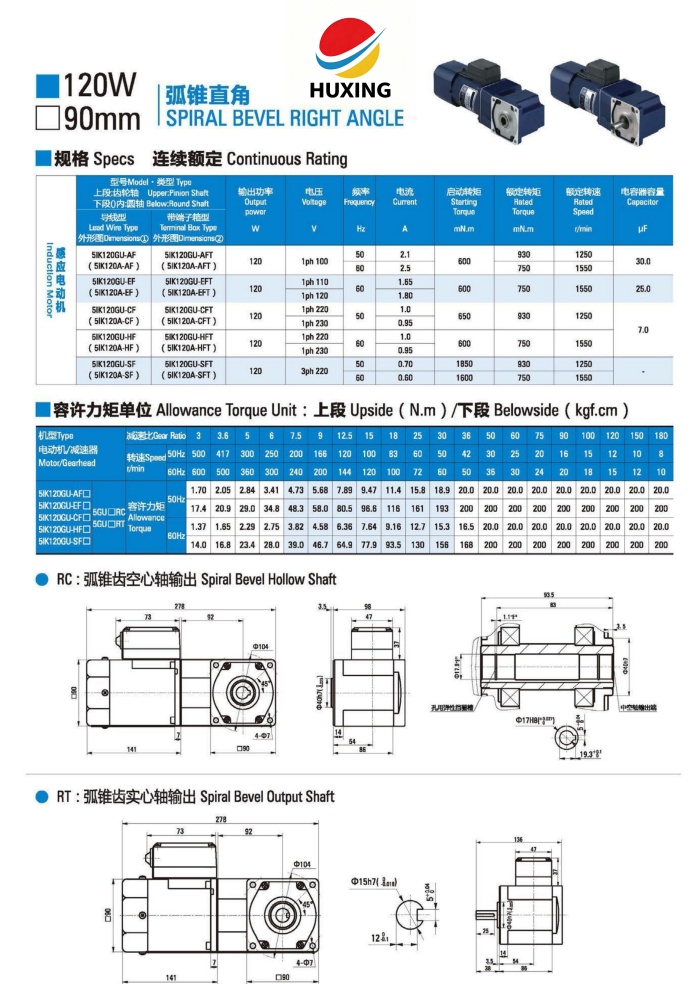

H1:120W 90mm Right Angle Gear Motor -5IK120GN Series Full Specification Dimensional
Parameters

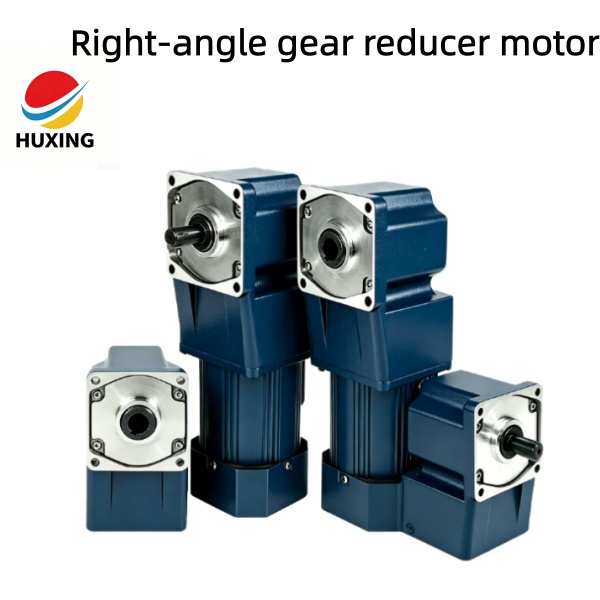

The 5IK120GN is the highest-power 90mm right angle unit in this series, delivering 120W with the same
5GN gearhead platform. Both hollow and solid shaft versions support gear ratios from 7.5:1 to 640:1.
H2:Solid shaft or hollow shaft right angle gear motor parameters for material handling system:
| Parameter | 5IK120GN-CF / 5GN7.5-640RH | 5IK120GN-SMF / 5GN7.5-640RS |
|---|---|---|
| Power | 120W | 120W |
| Voltage | 1AC 220V | 3AC 220V/380V |
| Rated Speed | 1350 rpm | 1350 rpm |
| Gear Ratio | 7.5:1 – 640:1 | 7.5:1 – 640:1 |
| Output Type | Right angle hollow | Right angle solid |
| Shaft Diameter | Φ15mm | Φ15mm |
| Protection | IP54 | IP54 |
| Insulation | Class F | Class F |
1.What is applications use gear motor?

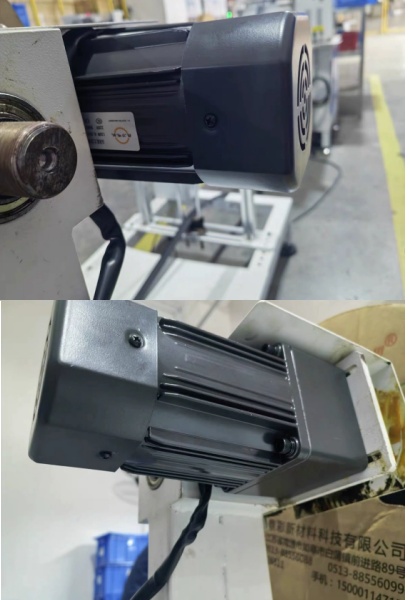

Electric gear motors are used in various applications that require for high output torque and low output rotation speed.
2.What is gear motor?
Gear motor is combined electric motor with gear reducer box.
