H1: 100mm Gear Motor 200W/250W: Dimensions & Installation Drawing
H2: 100mm 200W/250W Gear Motor Overview

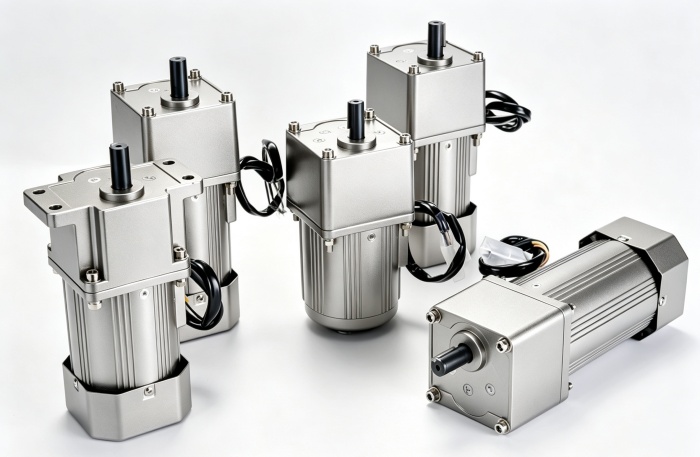

The 100mm gear motor series offers 200W and 250W power for industrial automation, conveyors, packaging lines, and material handling. It features a 104×104mm flange and a Ø15mm output shaft
H2: Gear Mini Motor Dimension Specifications
Flange Size: 104 × 104 mm
Mounting Holes: 4-M8 / Ø9, hole pitch 84.9 mm
Shaft: Ø15 mm (h7), key 5 mm, shaft length 32 mm
Gearbox Length: 65 mm
Motor Body Length: 172 mm
Total Length (excluding shaft): Approx. 279 mm
Body Width: 102 mm
Lead Wire: 300 mm
H2: Torque & Load Capacity
| Power | Reduction Ratio | Max Load |
|---|---|---|
| 200W | 3:1 – 250:1 | up to 440 / 43 N.m |
| 250W | 3:1 – 250:1 | up to 440 / 43 N.m |
OEM Customization & Inquiry
We support custom voltage, shaft, flange, gear ratio, and wiring for 100mm 200W/250W gear motors. Send your technical requirements to our engineering team for a tailored solution.
