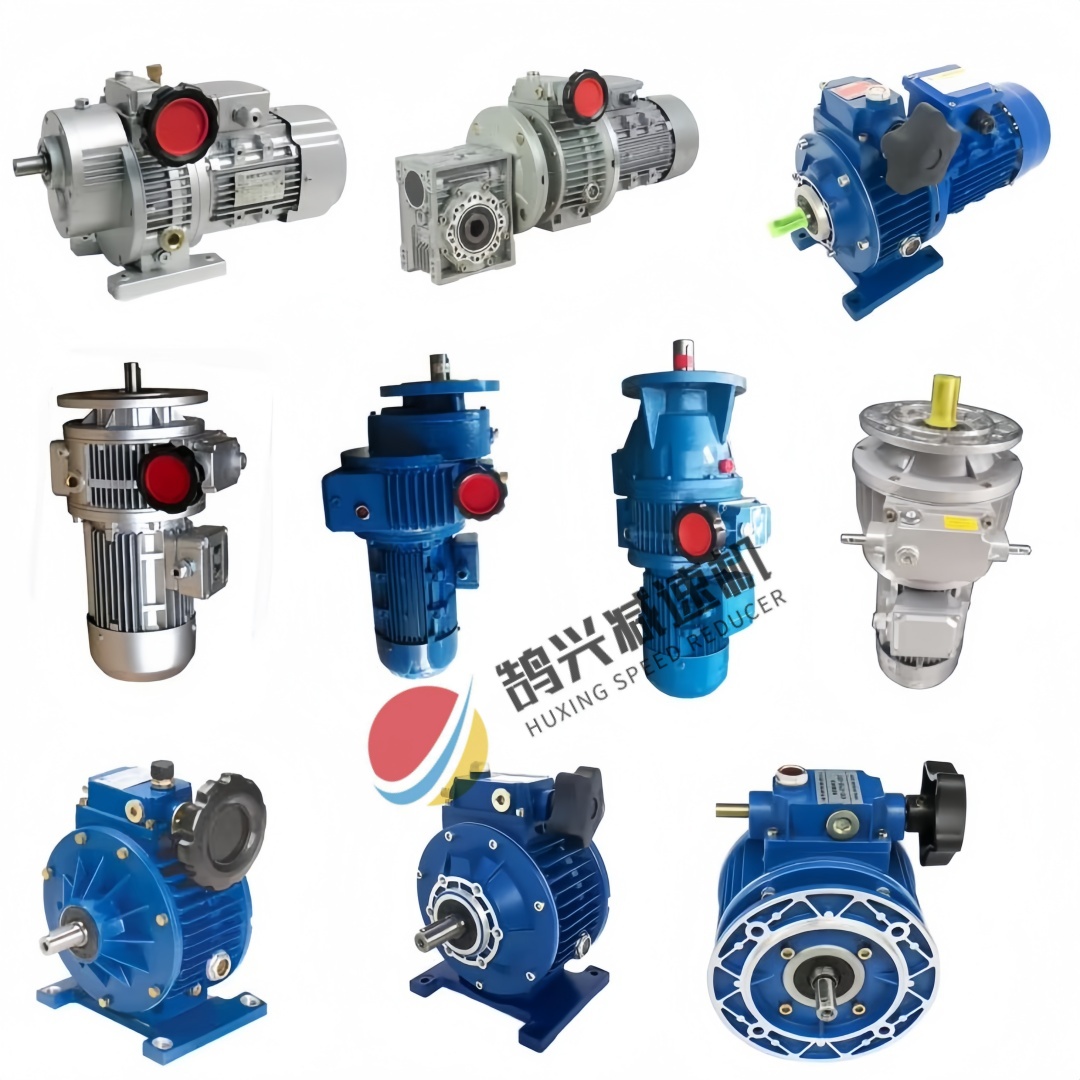

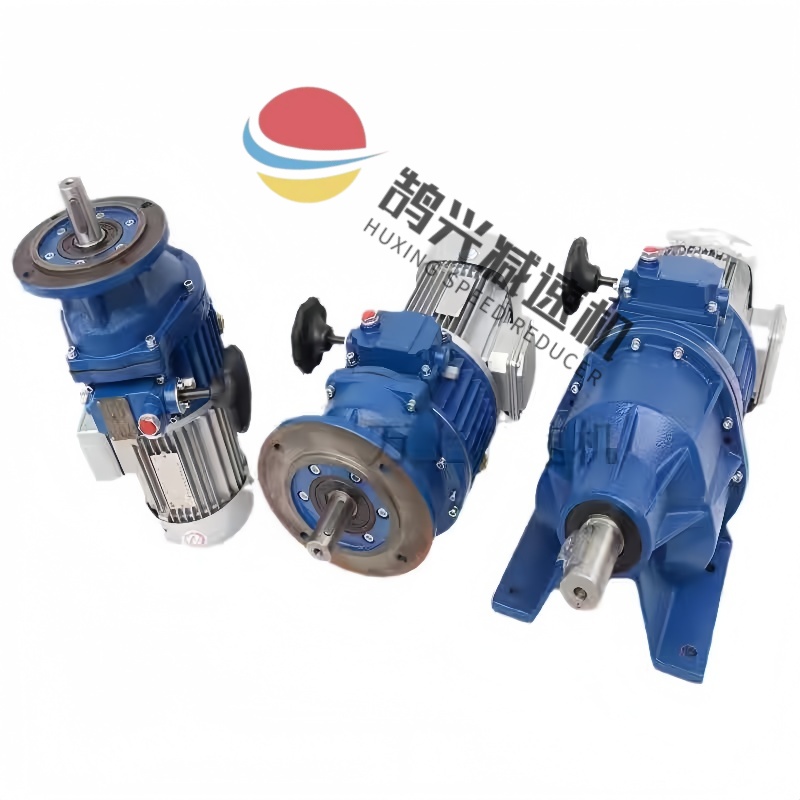

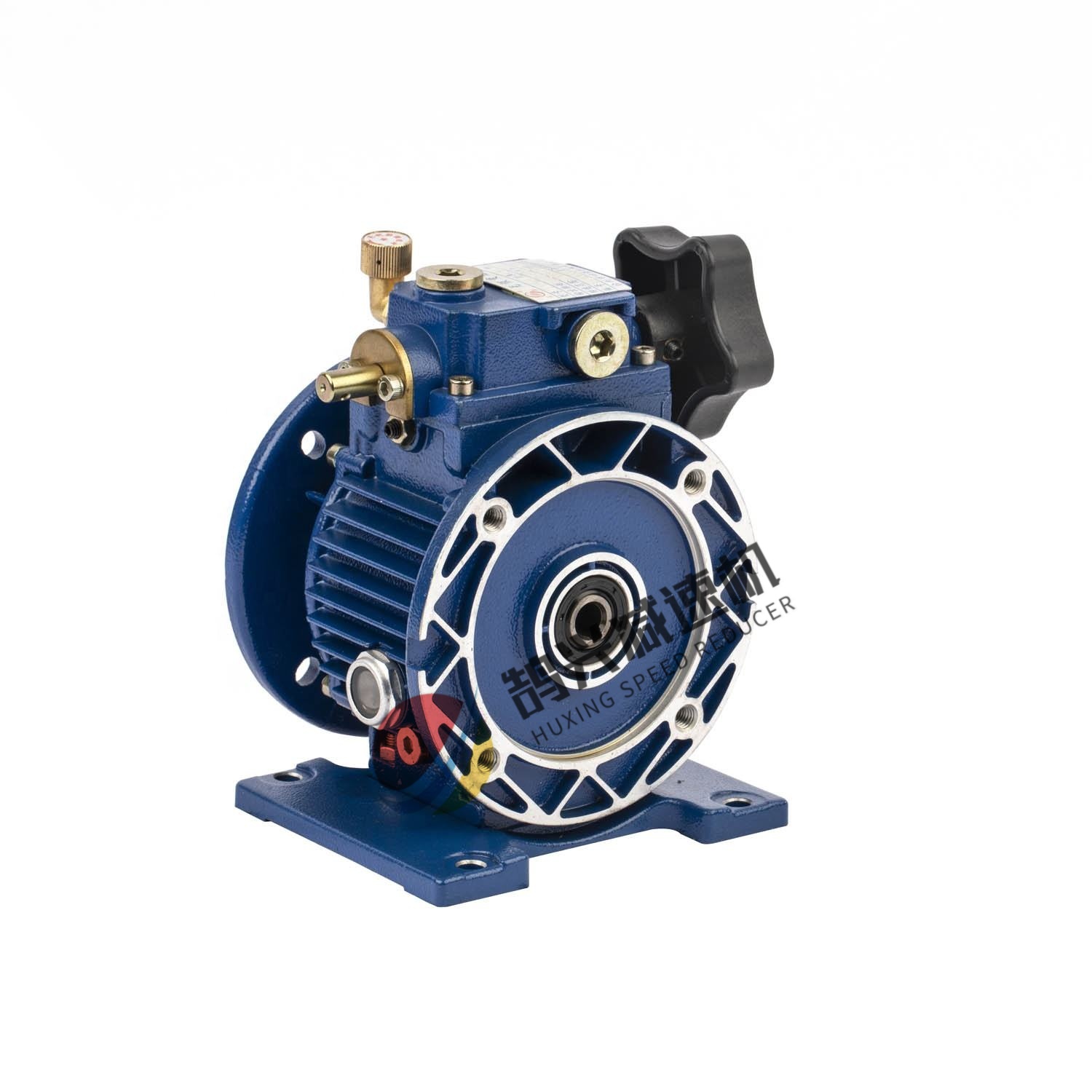

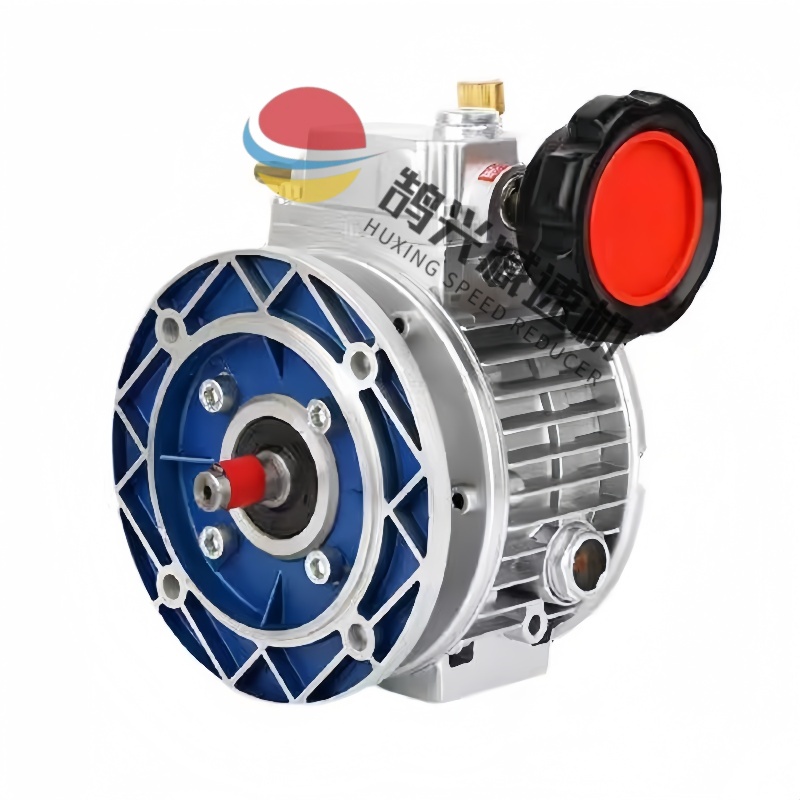

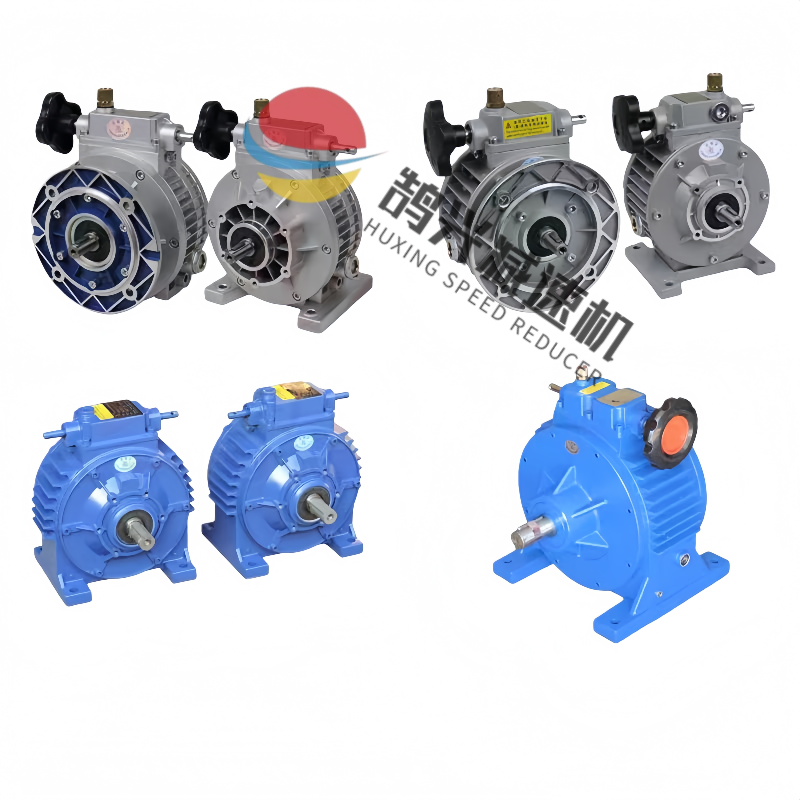

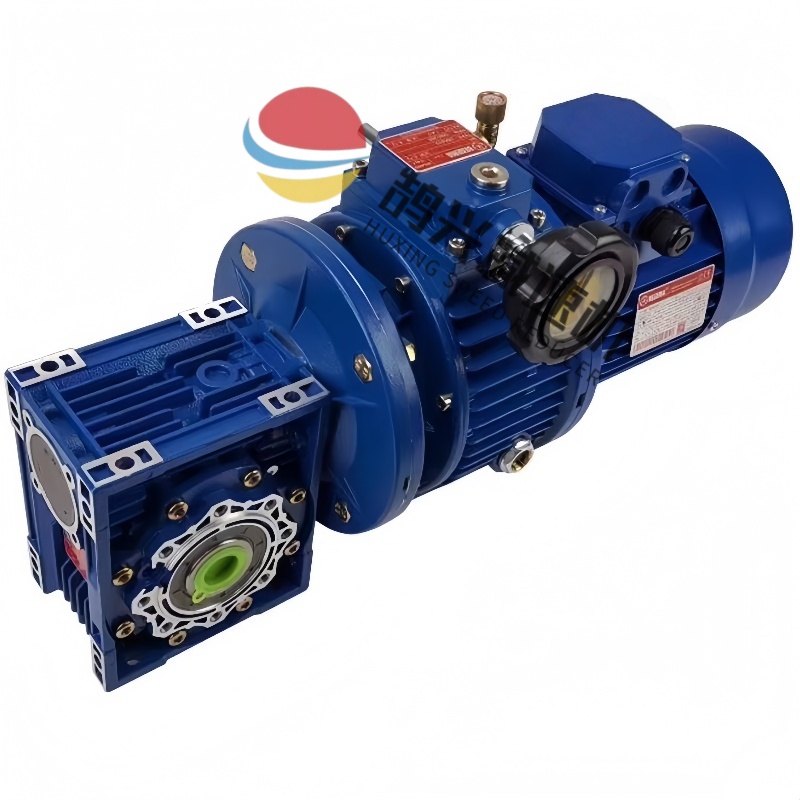

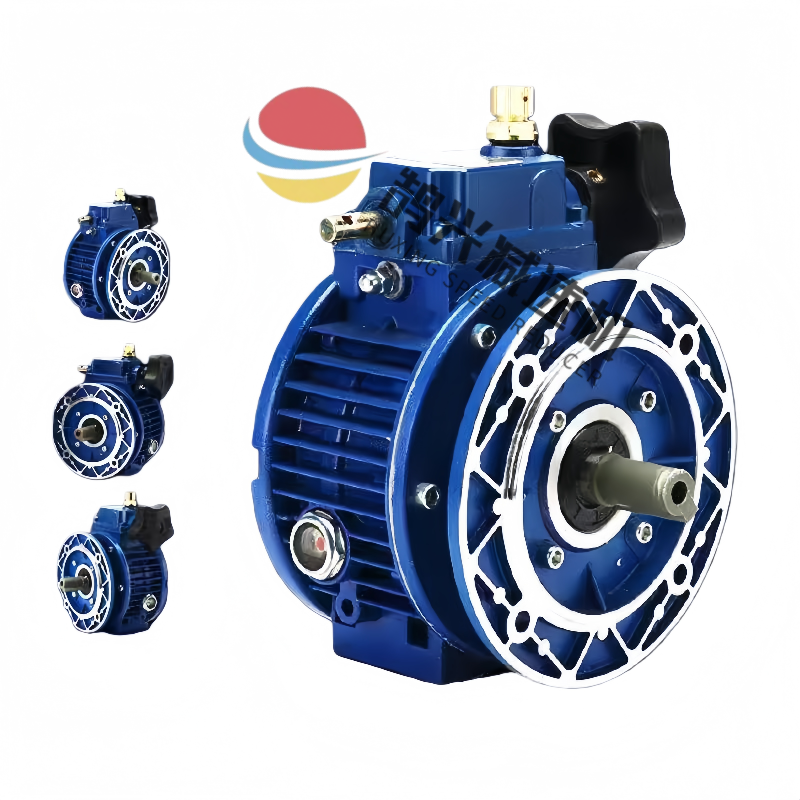

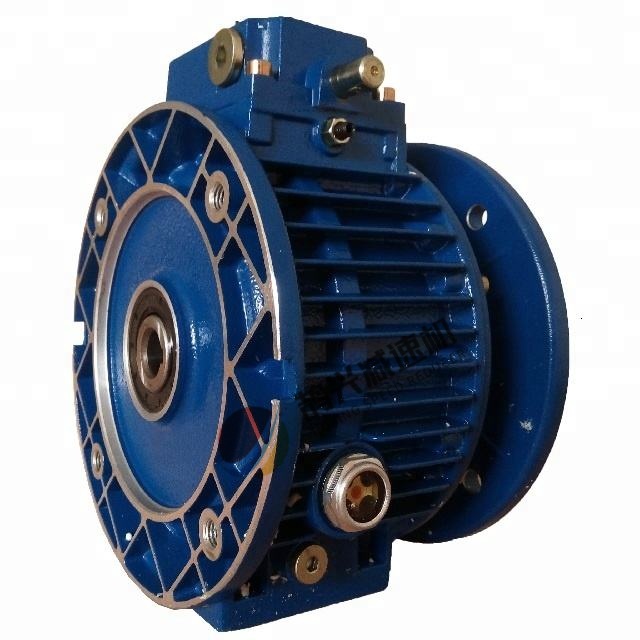

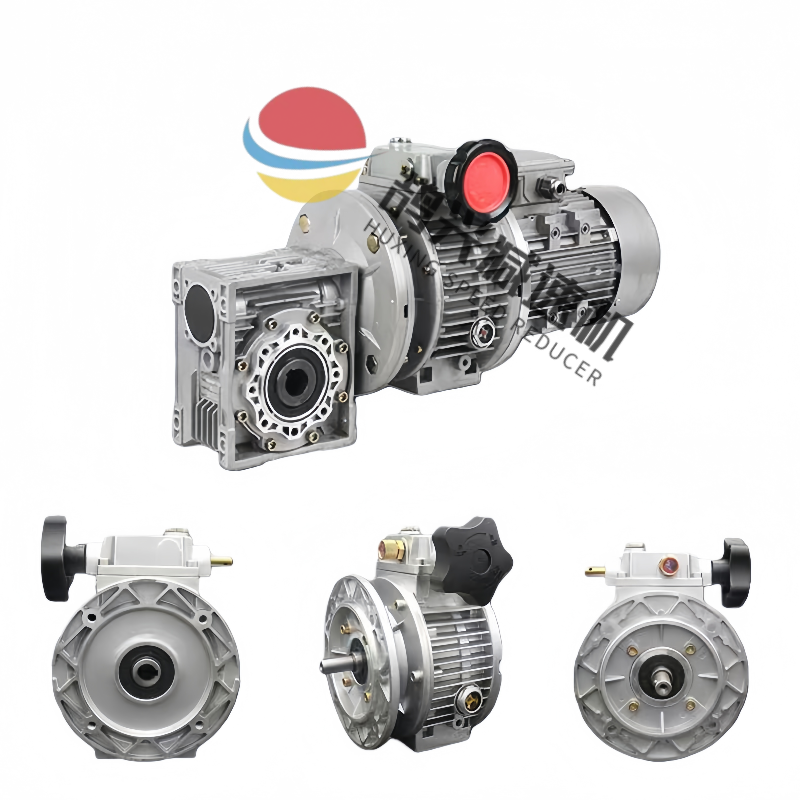

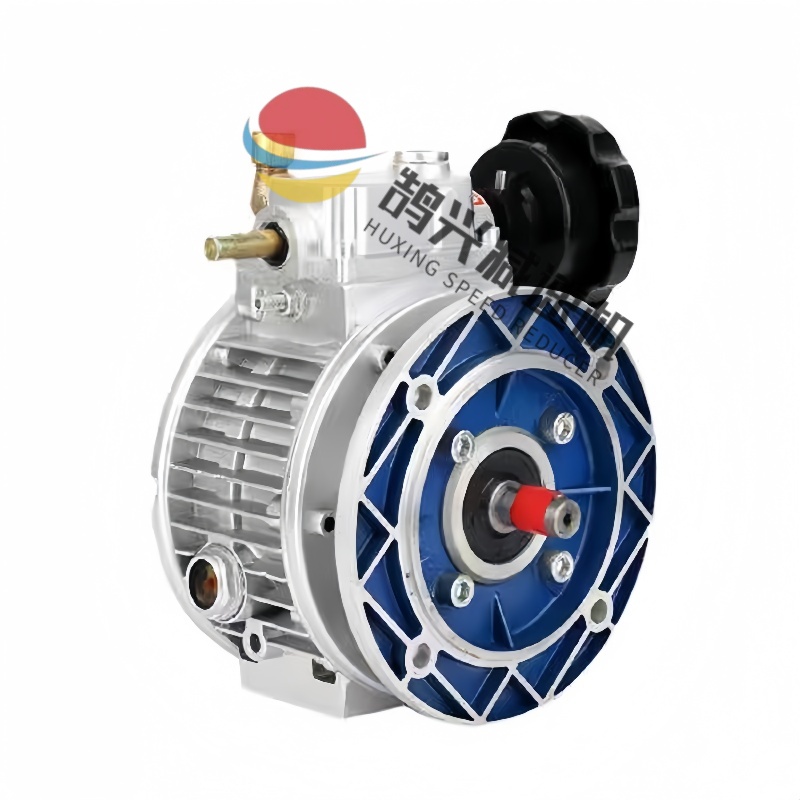

UDL stepless speed regulator
- CE & ISO9001 certified manufacturing
- OEM/ODM customization supported
- 24-month warranty
- Global shipping with fast lead time
- High precision UDL stepless speed regulator (0.5-1 rpm)

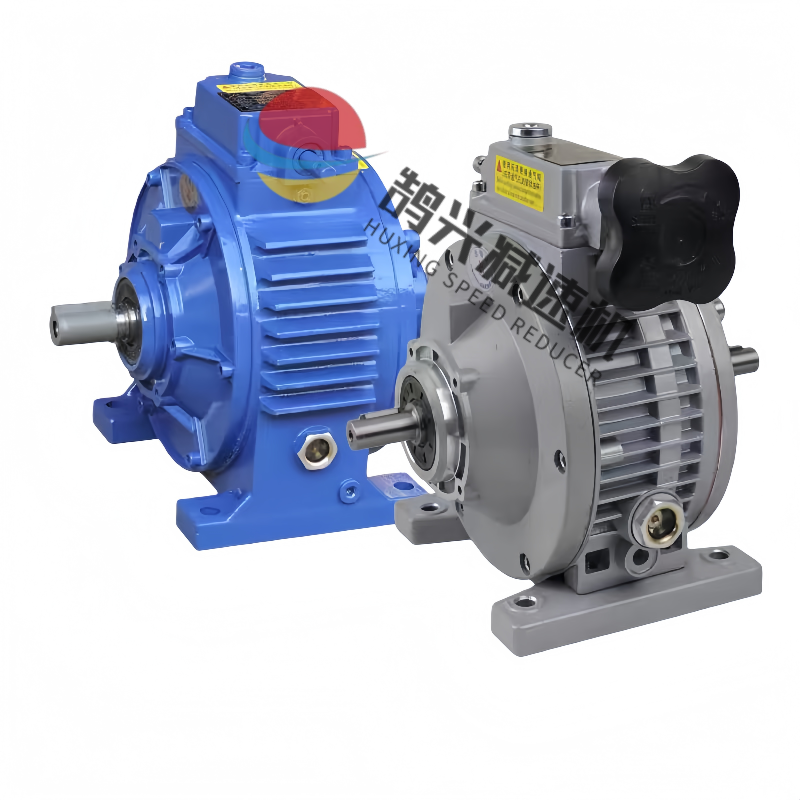

- Planetary cone disk technology

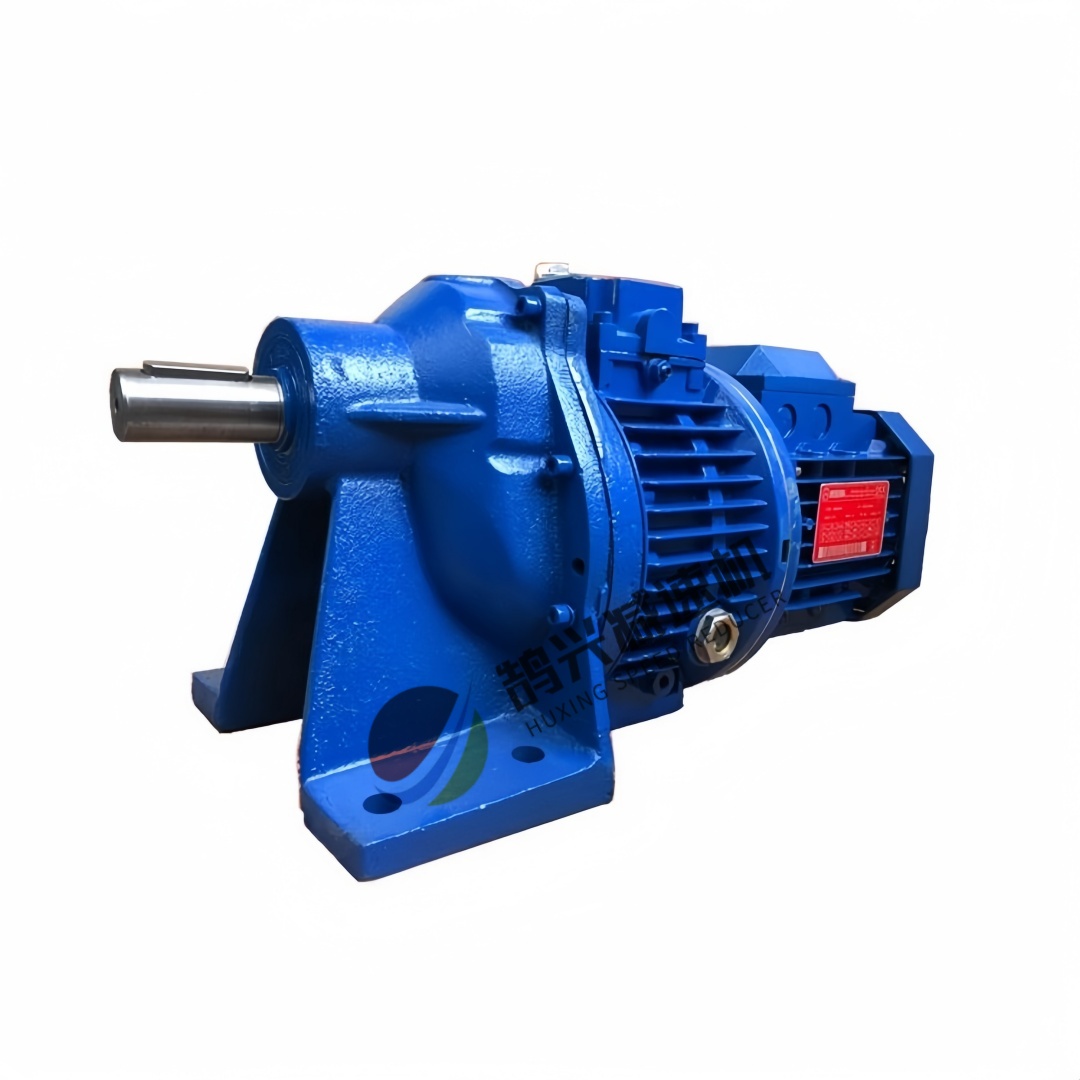

- Aluminum alloy housing

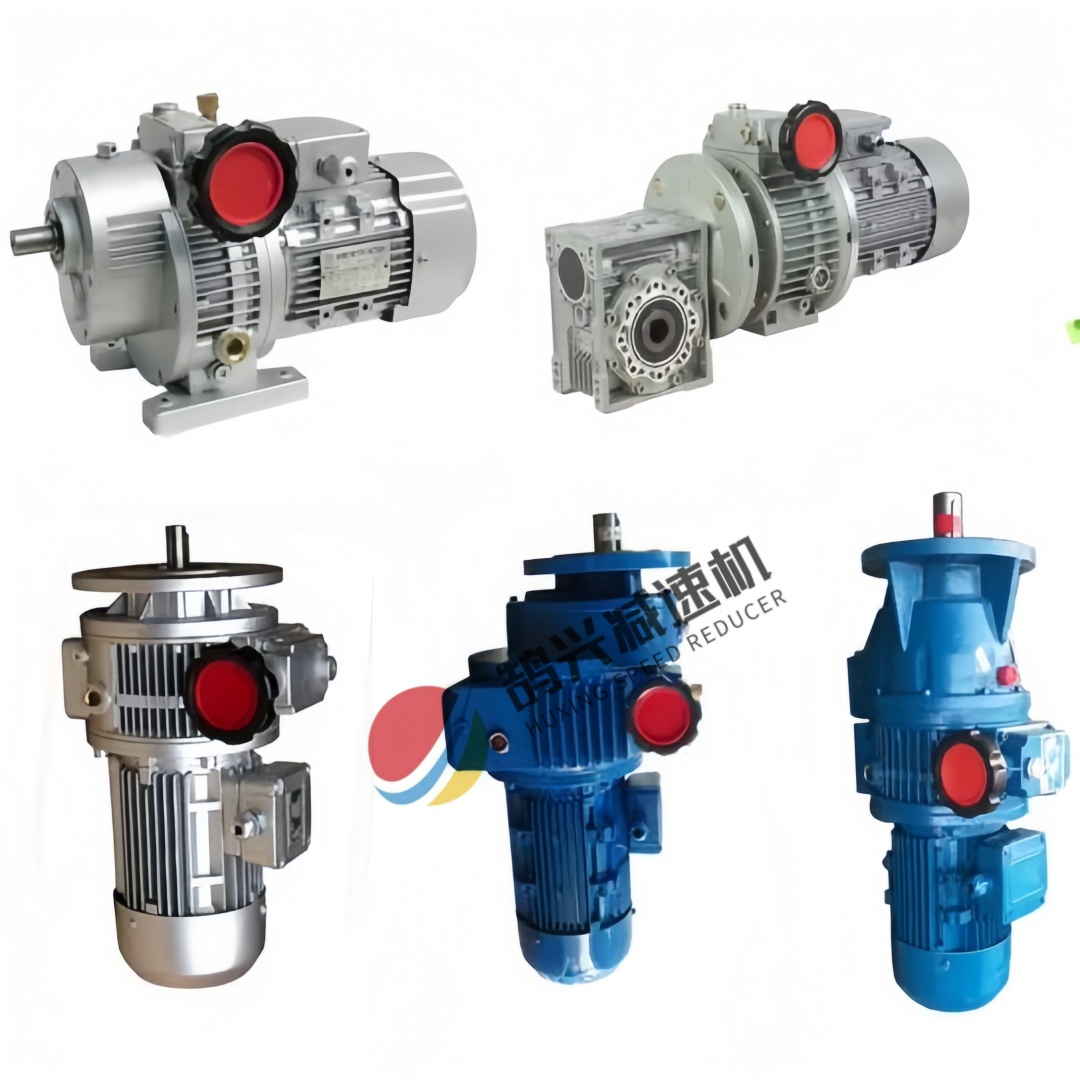

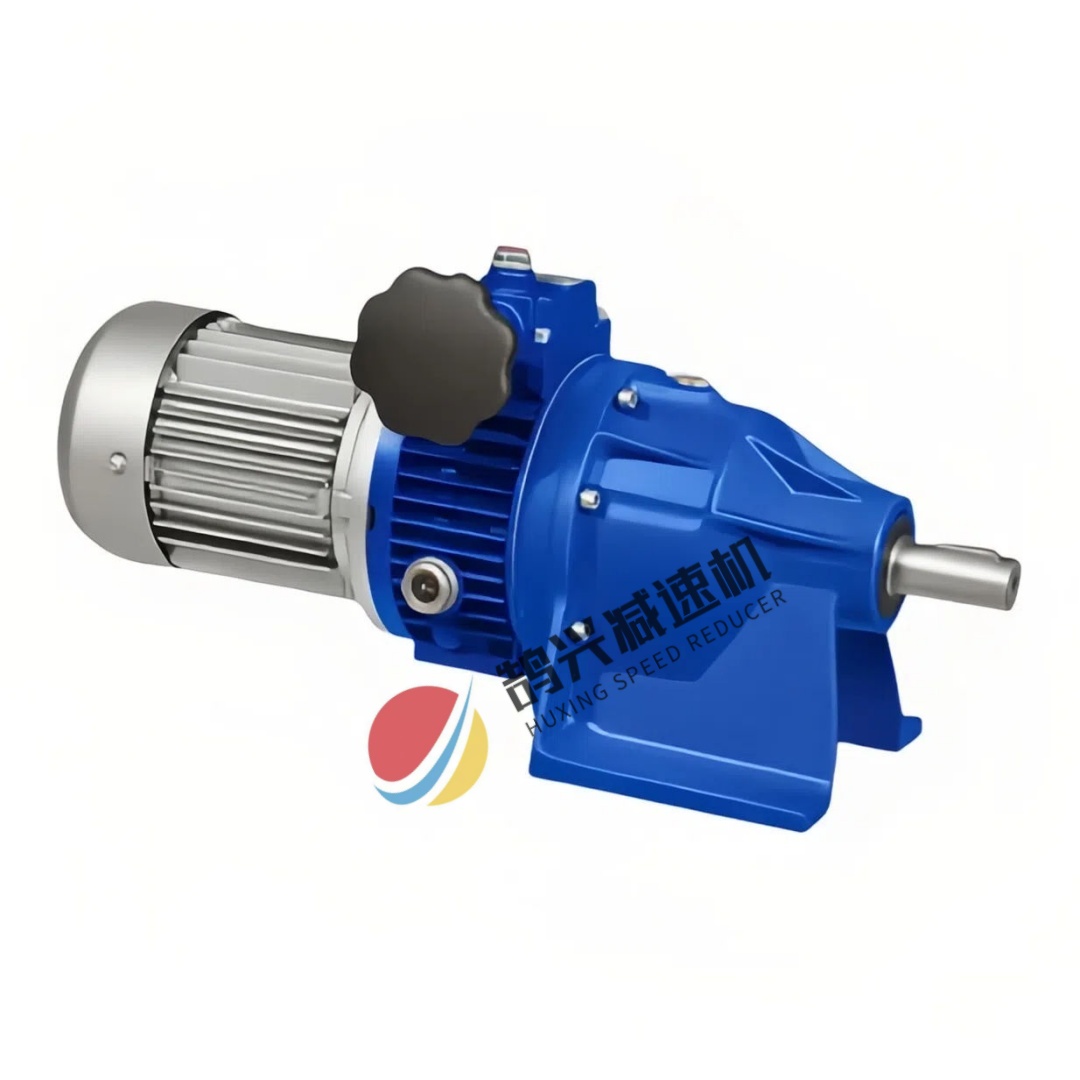

- Flange or foot mounted
- CE certified

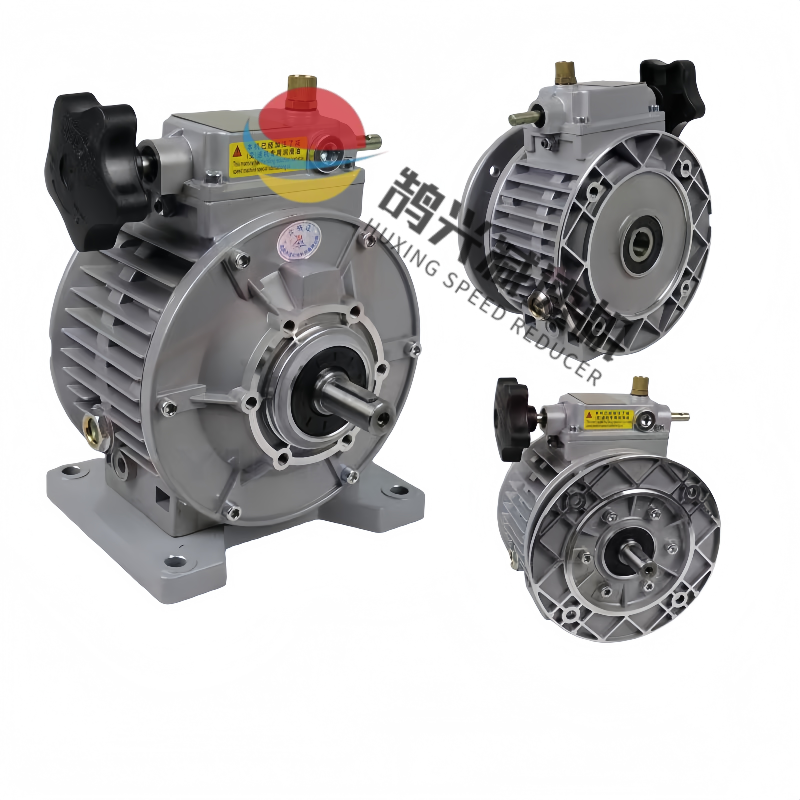

Features of UDL Continuously Variable Transmissions :
1. High speed adjustment accuracy: 0.5-1 rpm.
2. Wide speed range: Output speed ratio can be varied arbitrarily between 1:1.4 and
1:7.
3. High strength and long service life.
4. Convenient speed adjustment.
5. Continuous operation, can operate in both forward and reverse directions, with smooth operation,
stable performance, and low noise.
6. Fully sealed, with low environmental requirements.
7. Compact mechanism and small size.
8. Made of high-quality die-cast aluminum alloy, with an attractive appearance, light weight, and rust-free.

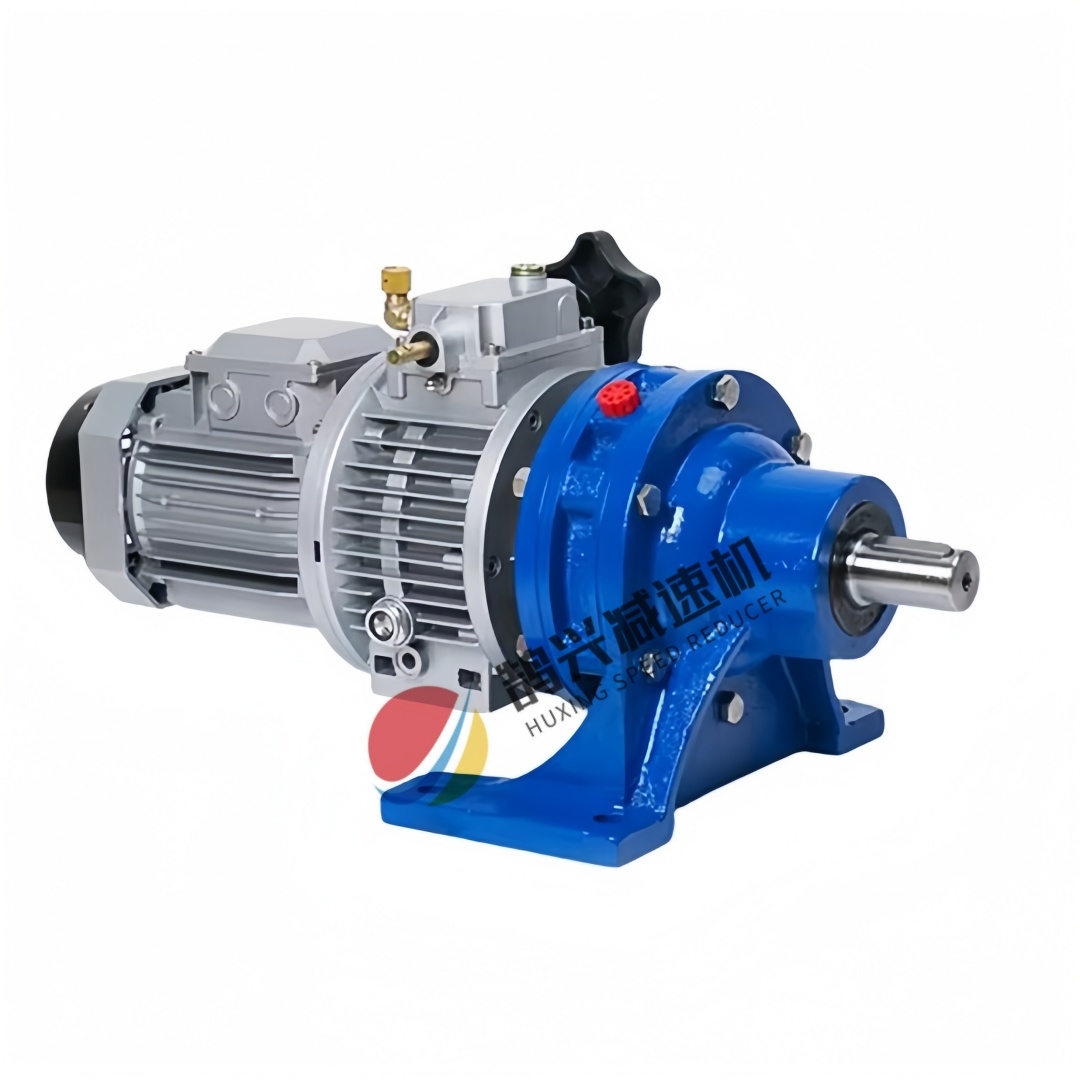

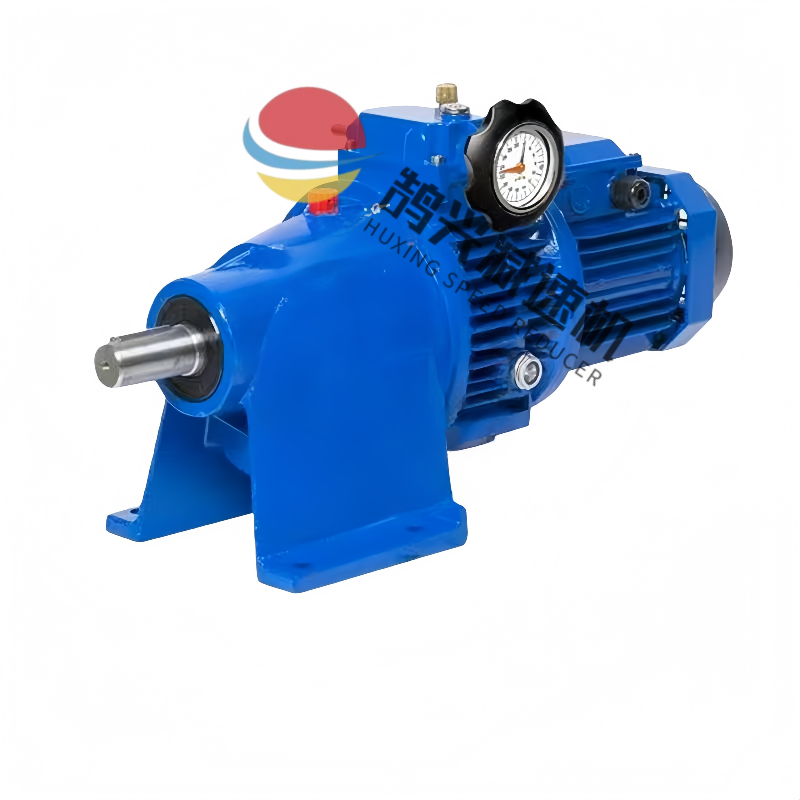

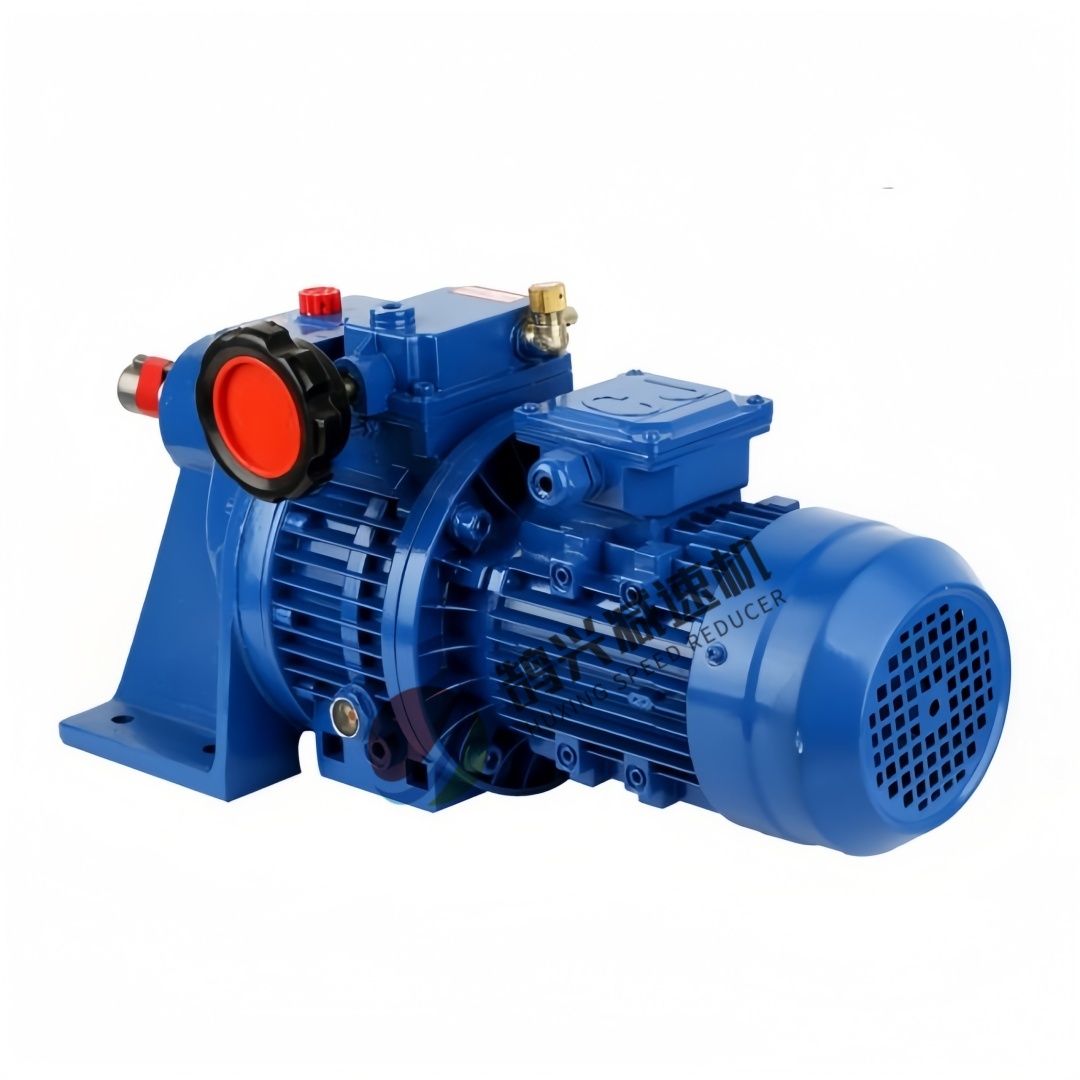

9. Good adaptability. UDL series CVTs can be combined with various reducers to achieve
low-speed stepless speed change.
UDL series CVTs are widely used in food, packaging, chemical, pharmaceutical, plastics, papermaking,
machine tools, transportation, and various automated production lines, conveyor lines,
and assembly lines requiring speed adjustment, making them an ideal partner for your machines.

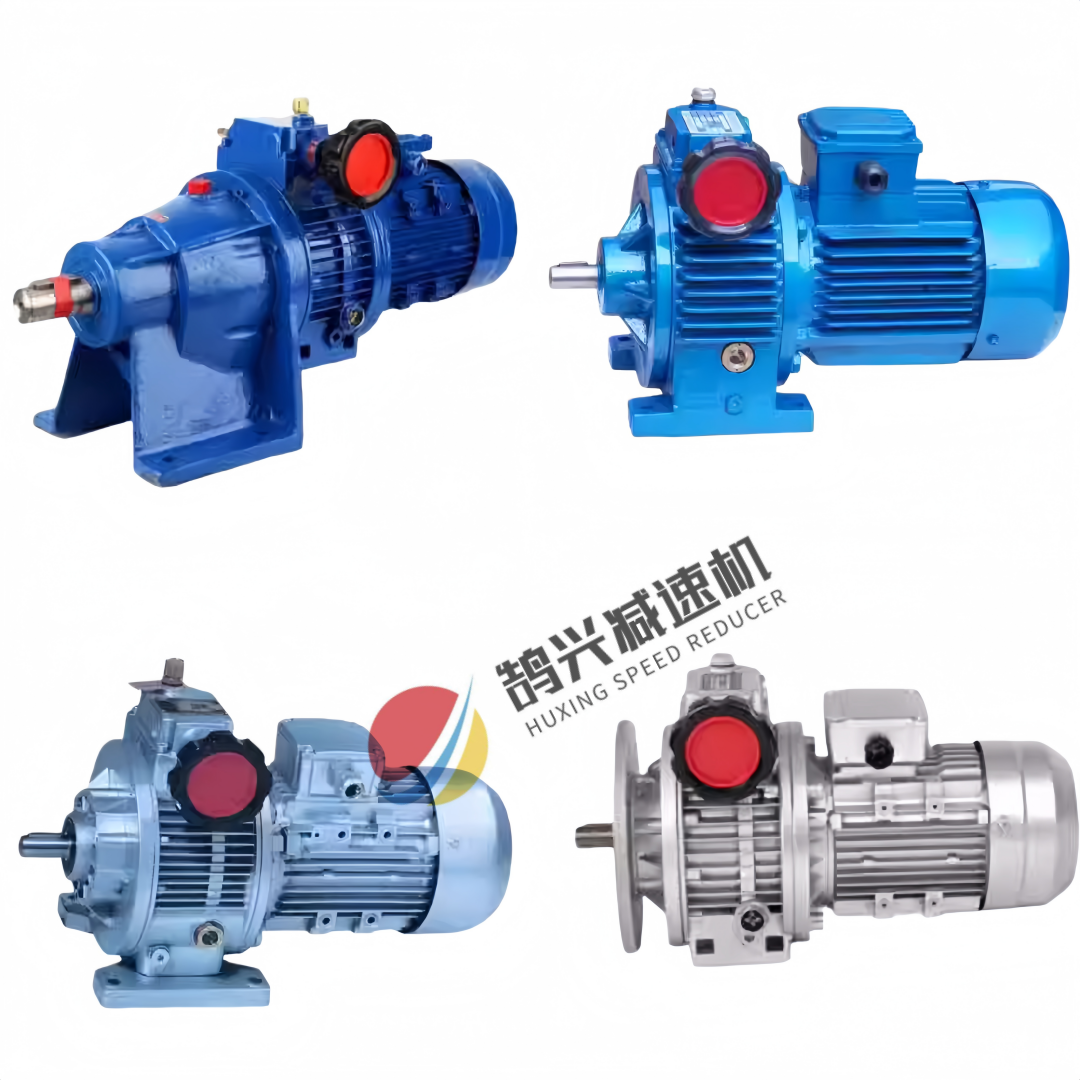

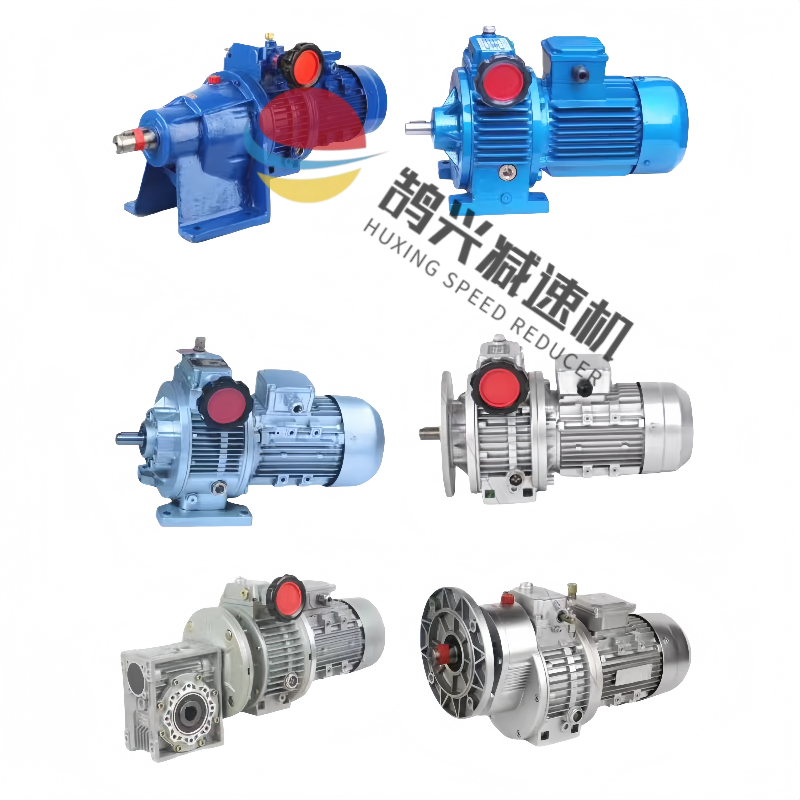

Specifications: Includes eleven different reducer specifications;
customers can choose according to their requirements.
Performance: The product's power ranges from 0.18 to 7.5 kW; the maximum output torque is 118 Nm.
Reliability:
Jack: Aluminum alloy, lightweight and rust-free (frame size: 0.18~1.1); Cast iron,
reliable and durable (1.5~7.5 frame).
The transmission gears are made of high-quality alloy material, surface hardened,
with a tooth surface hardness of 56~62 HRC.
