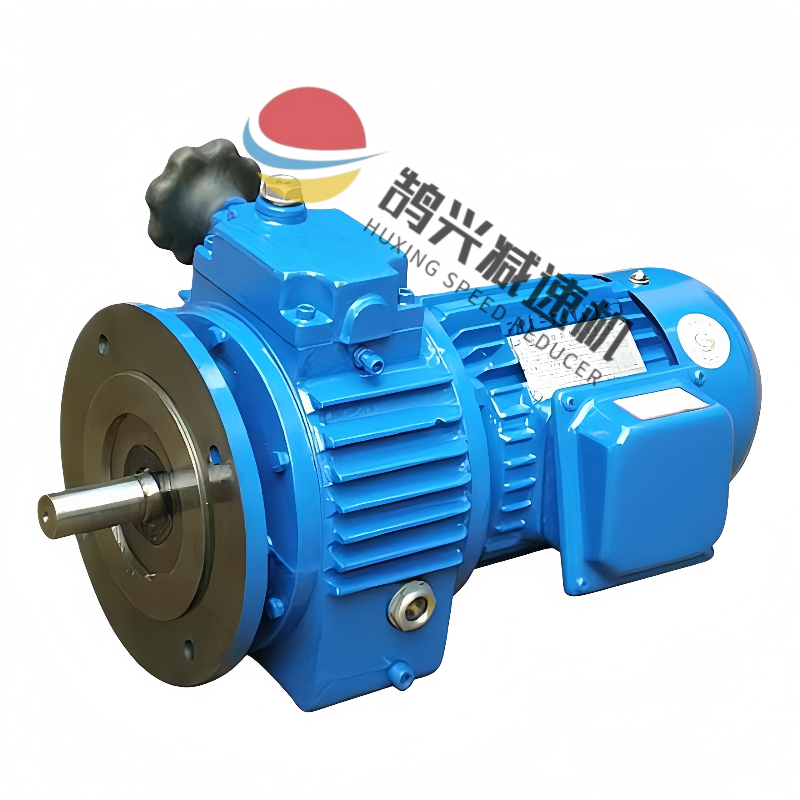

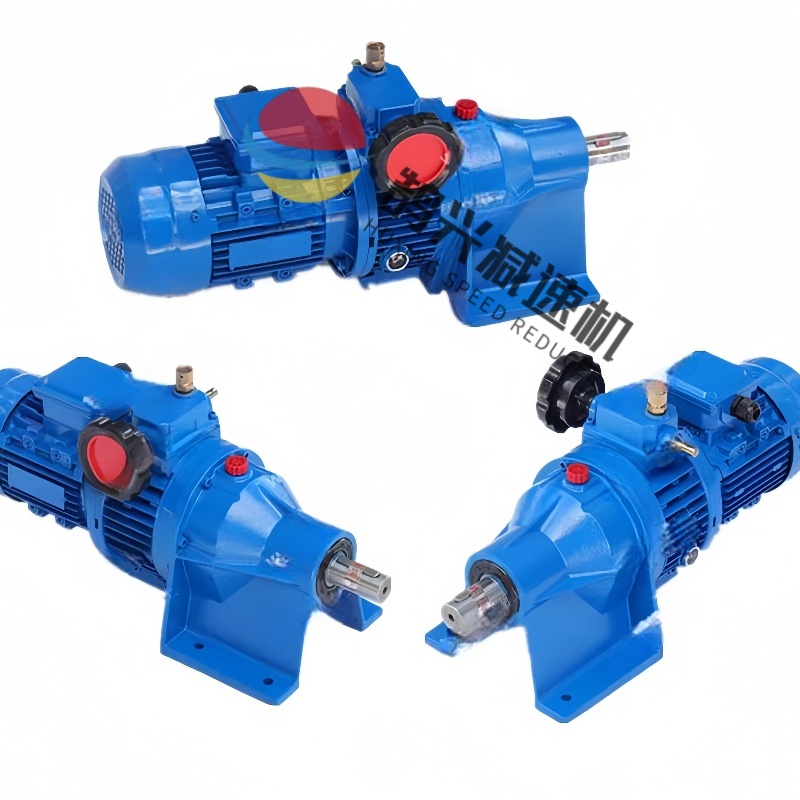

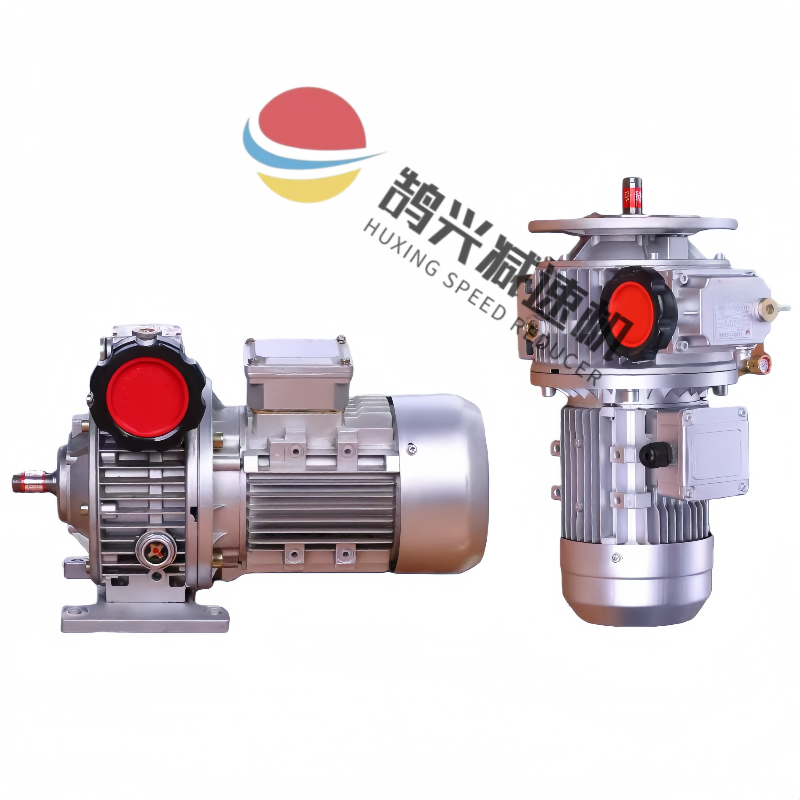

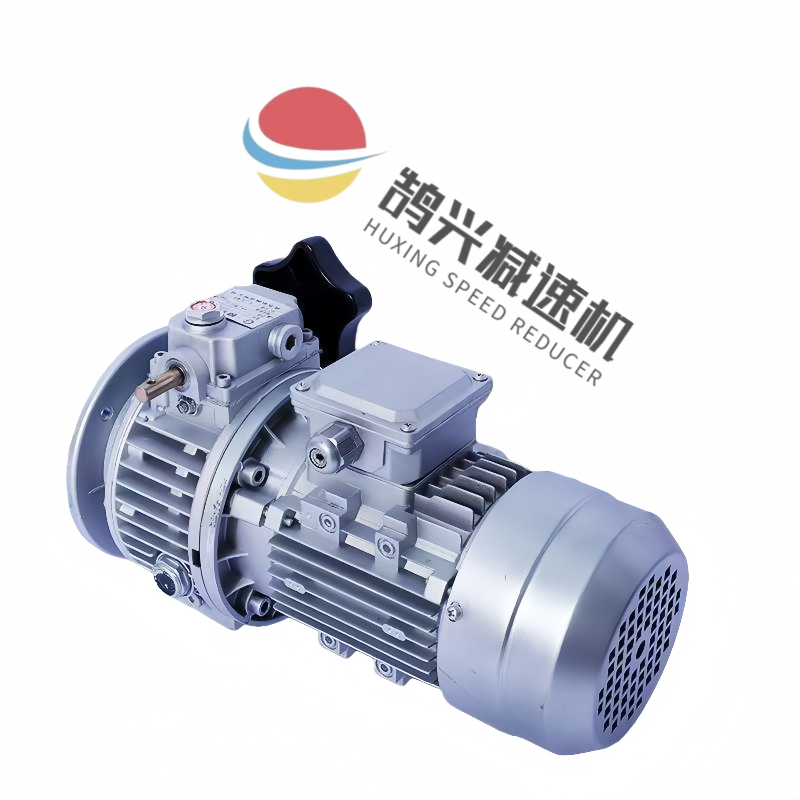

MB series stepless speed regulator

---

MB Planetary Friction Mechanical Continuously Variable Speed Controller

Tags: MB Continuously Variable Speed Controller | Planetary Friction Gear Reducer

Stepless Speed Regulator

Overview: Mainly composed of a pressed drive wheel device,

a friction transmission mechanism, and a speed control mechanism.

1. High Strength: The machine maintains reliable performance

and accurate rotation even under impact loads or machine reversal.

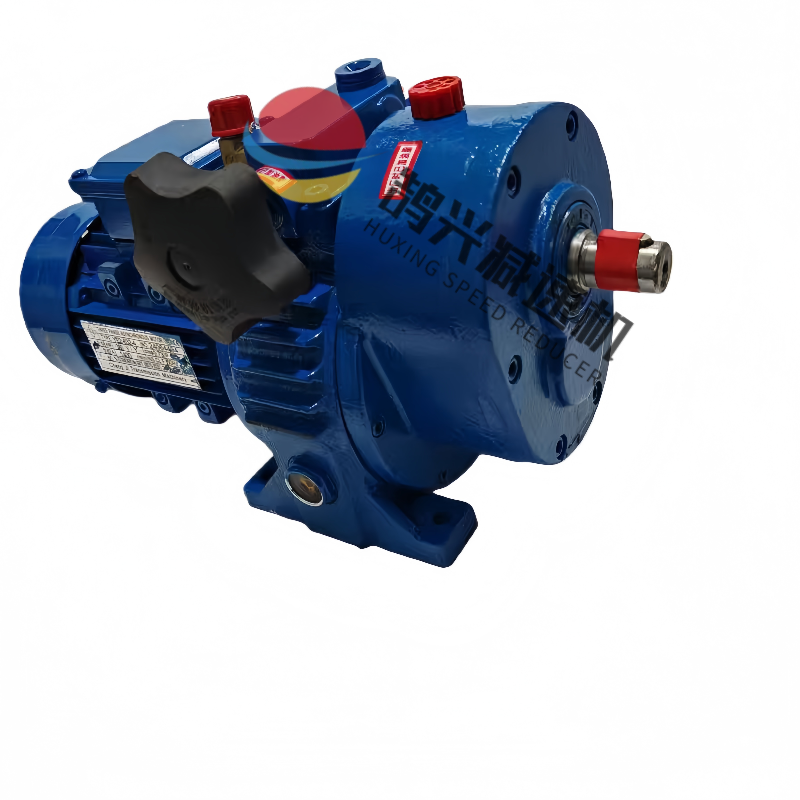

2. Wide Speed Range: All speed ratios are 1:5, meaning the output speed

 can be varied arbitrarily between 1:45 and 1:7.25.

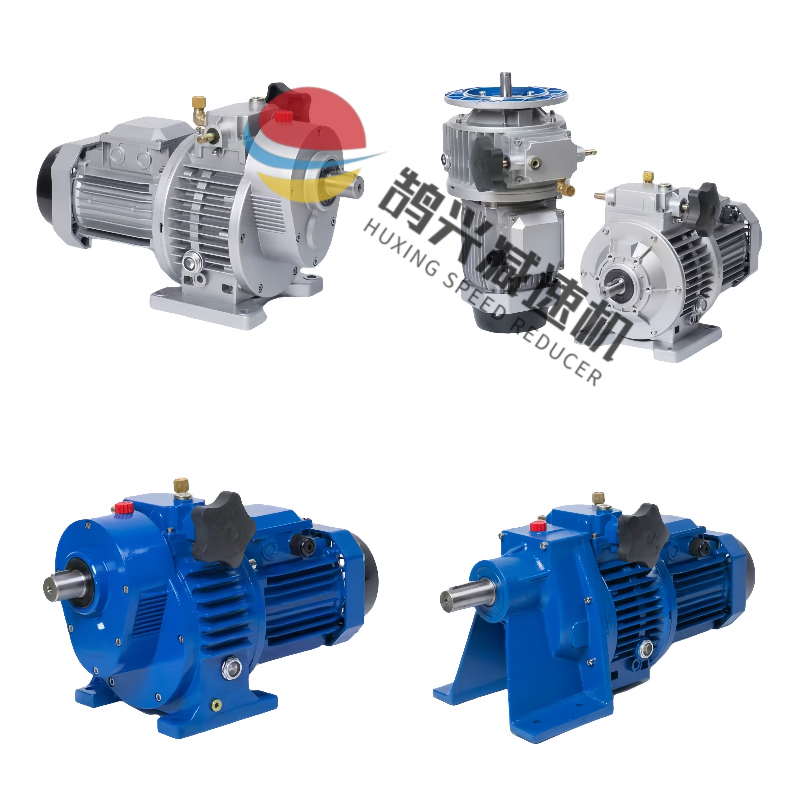

3. High Speed Adjustment Accuracy: Speed adjustment accuracy is 1-0.5 rpm.

4. Stable Performance: All transmission components are heat-treated,

and friction parts are machined for good lubrication,

resulting in smooth operation, low noise, and long service life.

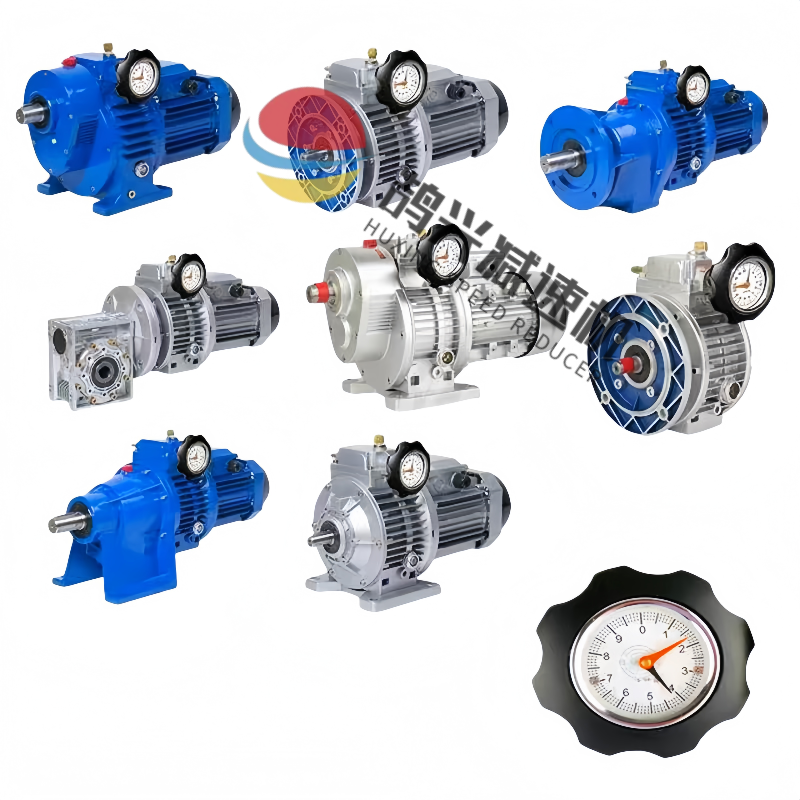

5. Coaxial Structure: The input and output shafts rotate in the same direction,

resulting in a small size and light weight.

6. Strong Combination Capability: This machine can be combined with various

types of reducers to achieve low-speed, high-torque speed change effects.

7. The set speed remains constant under permissible load conditions;

8. Fully sealed, suitable for humid, dusty, and mildly corrosive working environments.

Technical Parameters:

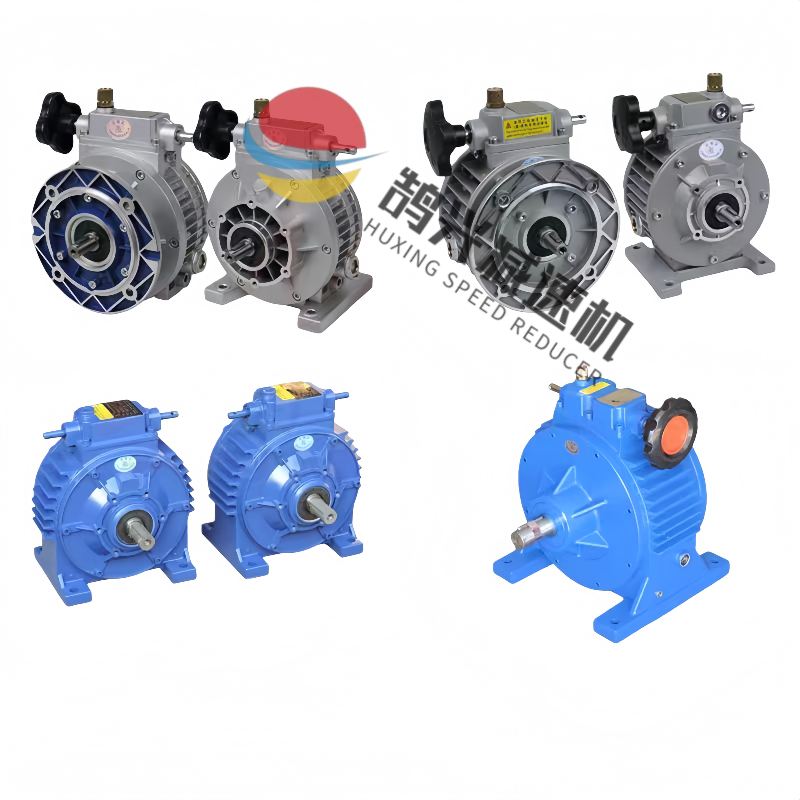

Power: 0.18KW～7.5KW

Torque: 1.5N·m～2062N·m

Speed Range:

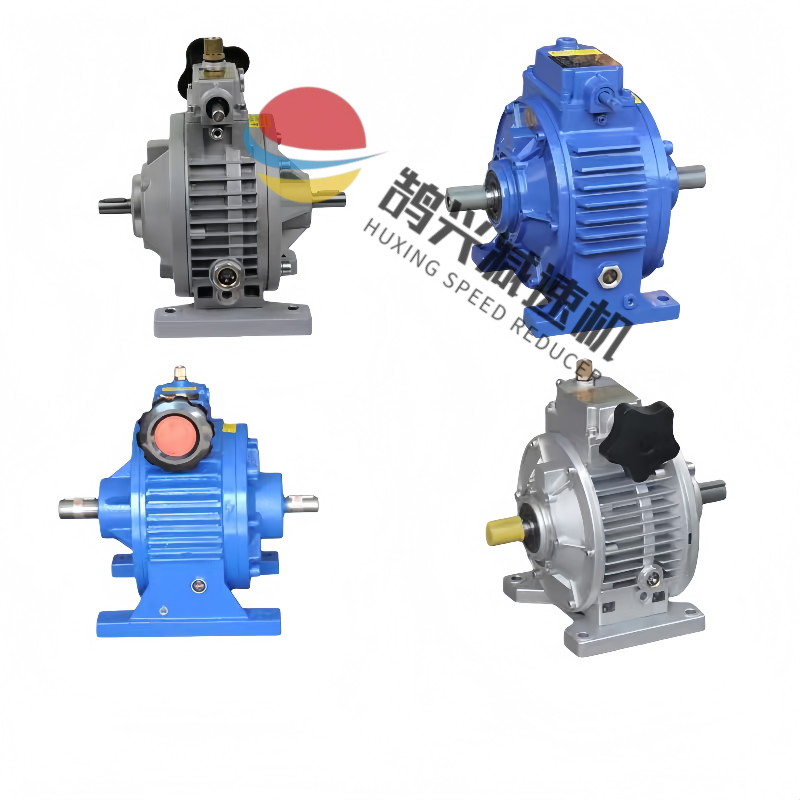

1. Basic type: 200-1000r/min

2. Gearbox with single-stage gear reduction (i=2.5-5): 40-200r/min

3. Gearbox with two-stage gear reduction (i=7.1-25): 8-140r/min

4. Gearbox with three-stage gear reduction (i=42-100): 2-23.5r/min

MB Continuously Variable Transmission (CVT) Models:

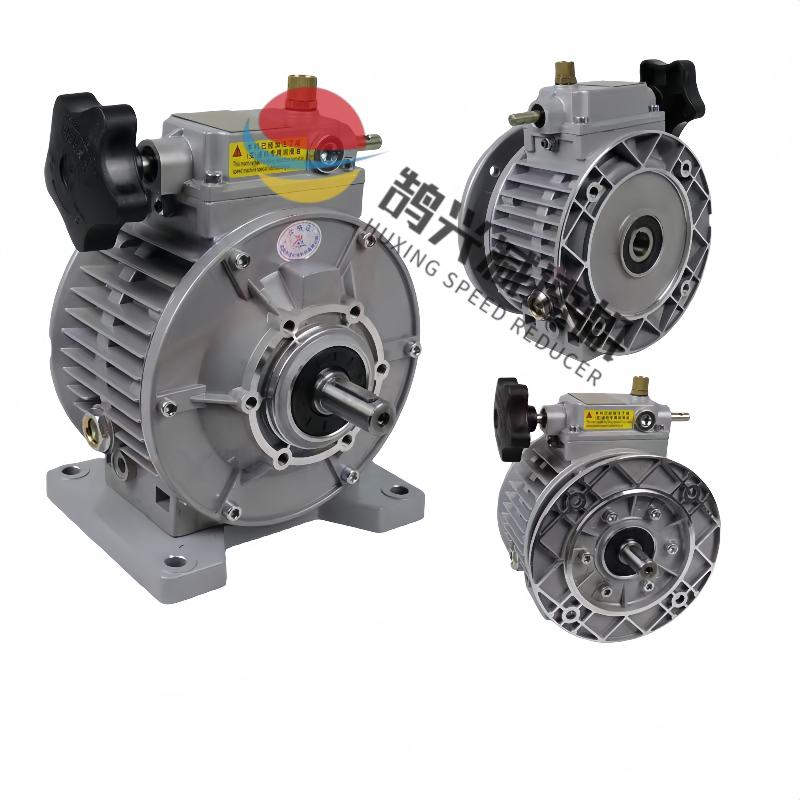

Basic type: MB02, MB04, MB07, MB15, MB15, MB22, MB40, MB55, MB75, MB150, MB220

Basic horizontal type: MBW02, MBW04, MBW07, MBW15, MBW22, MBW40, MBW55,

MBW75, MBW150 MBW220 MBWY02 MBWY04 MBWY07 MBWY15 MBWY22

MBWY40 MBWY55 MBWY75 MBWY150 MBWY220

Basic Vertical Type: MBL02 MBL04 MBL07 MBL15 MBL22 MBL40 MBL55 MBL75

MBL150 MBL220 MBLY02 MBLY04 MBLY07 MBLY15 MBLY22 MBLY40 MBLY55 MBLY75 MBLY150 MBLY220

First Stage Gear: MBW02-C MBW04-C MBW07-C MBW15-C MBW22-C MBW40-C

MBW55-C MBW75-C MBL02-C MBL04-C MBL07-C MBL15-C MBL22-C MBL40-C MBL55-C MBL75-C

MBWY02-C MBWY04-C MBWY07-C MBWY15-C MBWY22-C MBWY40-C MBWY55-C MBWY75-C, etc.
