ZH Hardened Tooth Surface Steering Gearbox
- ZH High Precision Hardened Tooth Surface Steering Gearbox
- carburized quenched precision ground bevel gear
- ultra-high hardness wear resistant long service life
- ultra-low backlash precise angle conversion
- high transmission efficiency low energy consumption
- high rigidity cast housing strong overload capacity
- multi-orientation mounting flexible layout
- multiple output forms optional
- stable operation low running noise
- fully sealed dustproof anti-leakage structure
- maintenance-free long-term operation
- non-standard customization supported
- CE certified for high-end intelligent automation equipment

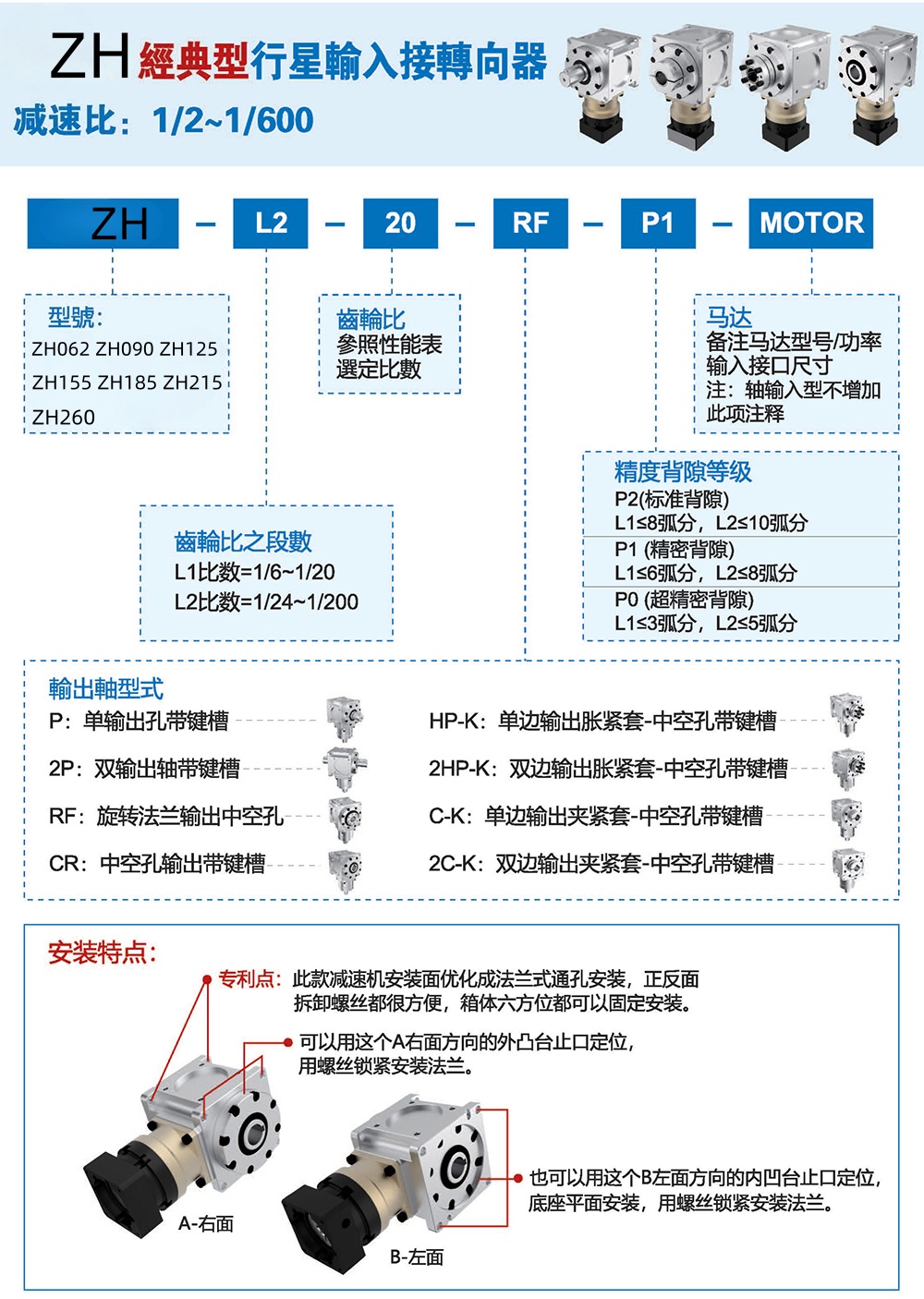

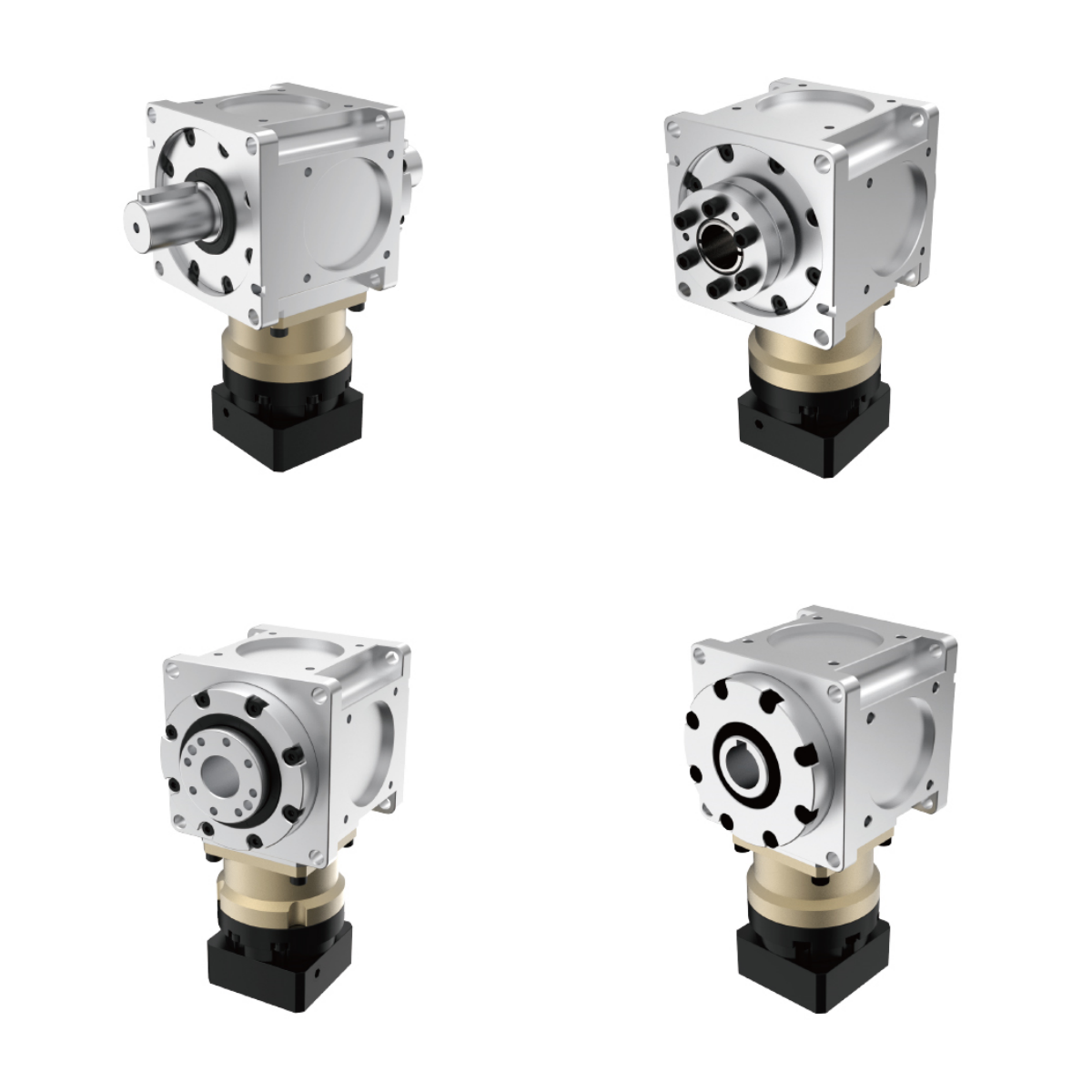

ZH-P single axis output with keyway classic planetary
input connected to steering gear
ZH-2P Dual axis Output with Keyway Classic Planetary
Input Steering Gear
ZH-RF Rotating Flange Output Hollow Hole Classic
Planetary Input Steering Gear
ZH-CK single clamping sleeve - hollow hole output
with keyway, classic planetary input with steering gear
ZH-2CK Double Clamping Sleeve - Hollow Hole Output
with Keyway Classic Planetary Input with Steering Gear
ZH-HPK Single Expansion Tightening Sleeve -
Hollow Hole Output with Keyway Classic Planetary
Input with Steering Gear
ZH-2HPK Double Expansion Tightening
Sleeve Hollow Hole Output with
Keyway Classic Planetary Input with Steering Gear
ZH-CRK hollow hole output with keyway classic
planetary input connected to steering gear
The Huxing ZH series precision gear commutator adopts
tapered roller bearings at the output end,
greatly improving the axial force of the product.
The output shaft form has added flange surface output and base installation,
which can be used for large load rotating platform applications.
The umbrella teeth are made of high-strength carburizing
alloy steel and undergo grinding process, effectively ensuring
the accuracy and noise of the product's use.
The speed ratio can be freely matched, and when
connected to a planetary gearbox, the speed ratio can reach up to 2000.
Imported lubricating grease is used inside the box, which is maintenance free.
The box is made of high-strength aluminum alloy,
ensuring strength while making the installation of the whole machine more lightweight.
Product Application
Shipbuilding industry
Shipbuilding industry
The steering gear can be used to control the direction of the steering wheel,
ensuring the stability of the ship's navigation,
and is a key component of the ship's navigation system.
automotive field
automotive field
Widely used in the steering system of automobiles,
it can easily achieve high torque, high transmission ratio,
and high-precision steering output through different tooth arrangements.
Industrial Automation
Industrial Automation
On an automated production line, its compact structural design
can achieve power transmission and steering functions
within a limited space, meeting the strict requirements of space
utilization for automated production lines.
textile machinery
textile machinery
With its precise transmission capability and stable performance,
it ensures that the yarn maintains a smooth transmission direction
during high-speed operation, easily achieving forward and reverse
transmission of yarn and meeting the needs of complex textile processes.
Product Introduction
The output end bearing adopts tapered roller bearings,
greatly improving the axial force of the product.
The output shaft form has added flange surface output and base installation,
which can be used for large load rotating platform applications.
The umbrella teeth are made of high-strength
carburizing alloy steel and undergo grinding process,
effectively ensuring the accuracy and noise of the product's use.
The speed ratio can be freely matched, and when connected to a planetary gearbox,
the speed ratio can reach up to 2000.
Imported lubricating grease is used inside the box, which is maintenance free.
The box is made of high-strength aluminum alloy, ensuring strength
while making the installation of the whole machine more lightweight.
