AT Series Precision Bevel Gear Steering Gearbox
- AT Precision Bevel Gear Steering Gearbox
- spiral bevel carburized hardened gear
- low backlash high positioning accuracy
- high torsional rigidity large load capacity
- multi-face multi-direction installation
- 90° angle power conversion
- dual shaft/hollow bore/flange multiple output optional
- transmission efficiency＞95%
- low running noise stable operation

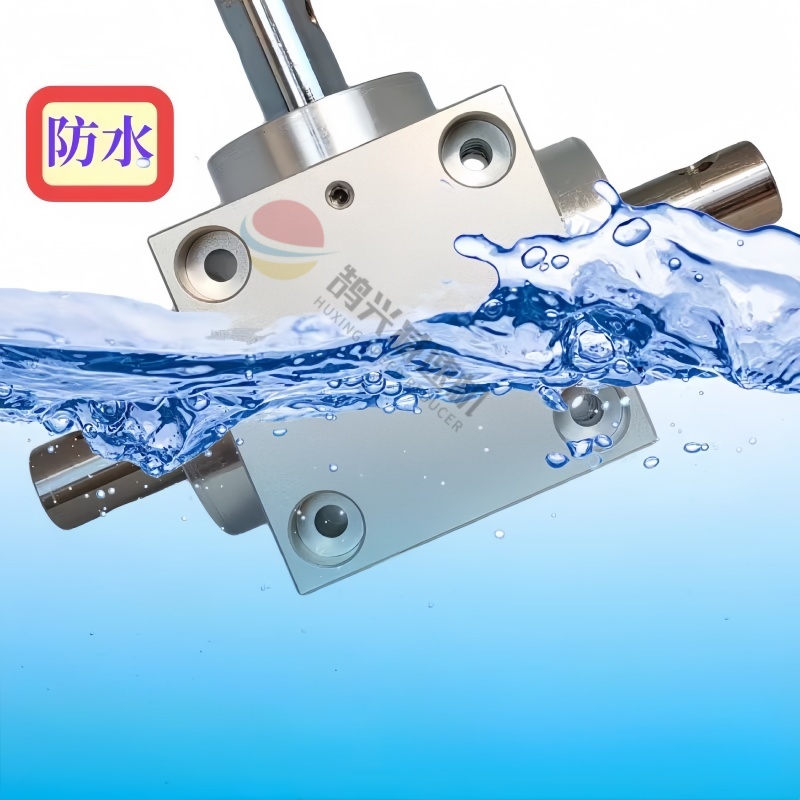

- fully sealed dustproof oil-proof
- standard fixed ratios + non-standard customization
- CE certified for servo automation equipment
Product Overview:
High strength: 90 degree type, high-precision spiral bevel gear, made of nickel chromium alloy steel SCM415 HRC60 degrees.
High efficiency: a combination of high-efficiency planetary mechanisms and precision spiral umbrella mechanisms.
High rigidity: This gearbox has an excellent rigid structure and is supported by double tapered bearings, making it particularly suitable for situations with large load changes at the output end.

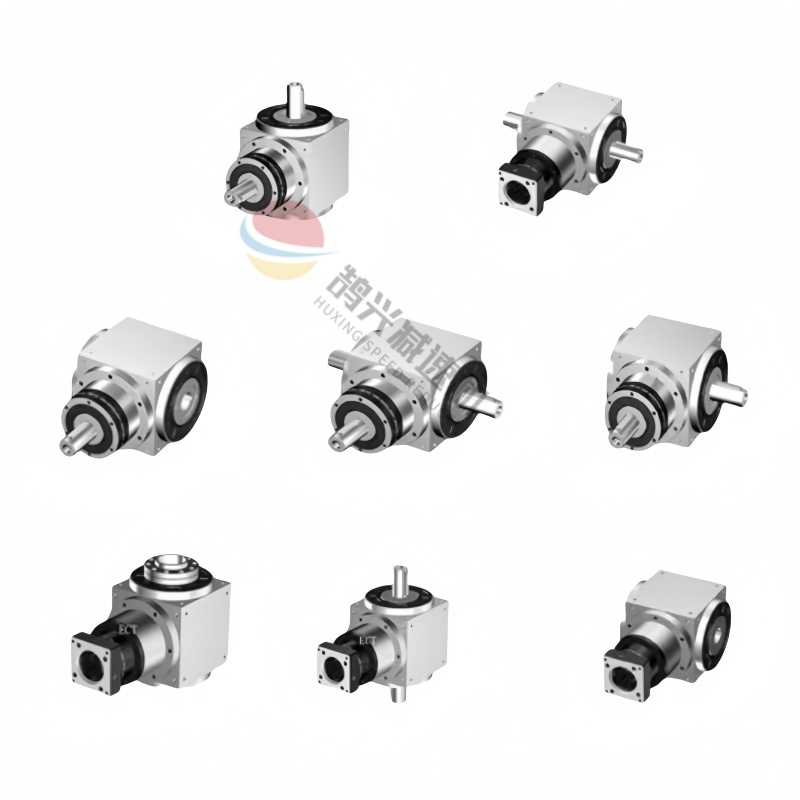

Diversification: There are various types of output shafts, including single output shaft type, double output shaft type, hollow shaft type, hollow flange type, hollow shaft cone urgency, screw linear type, and thread linear type.
Reduction ratio: Single section 1:3~1:10 Double section: 1:12~12:100
Small size, space saving: Box size 55MM~220MM
Output torque; 15NM~1600NM， Spiral umbrella gear module M1.0~M6.0
Easy to install: can be installed in all 5 directions.
Applicable capacity: 50W~15KW
