ARA Series Steering Gearbox

---

Tags: ARA Series Steering Gearbox_ARA Spiral Bevel Gear Steering Gearbox

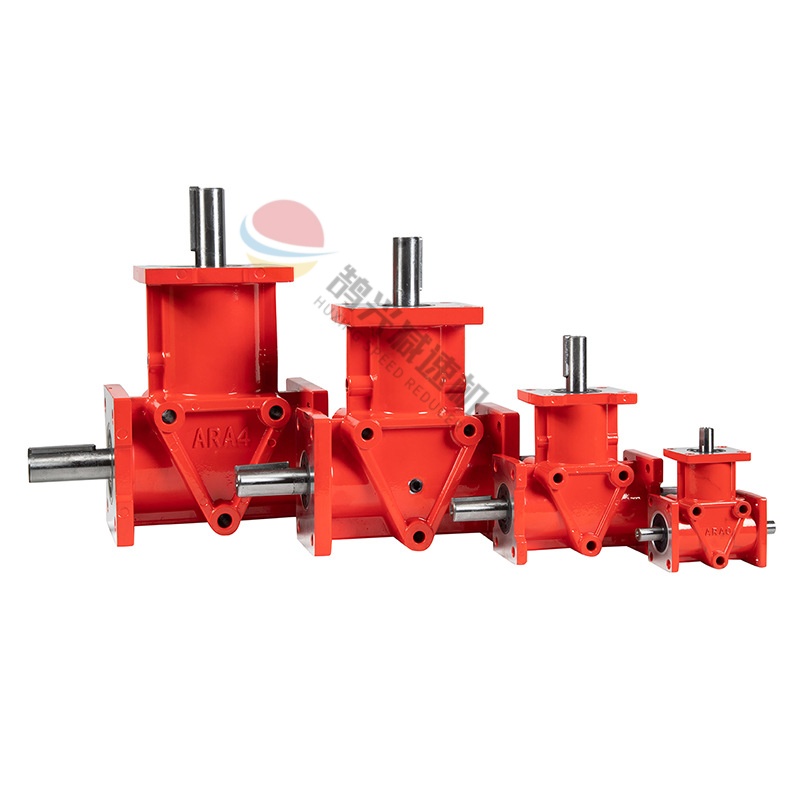

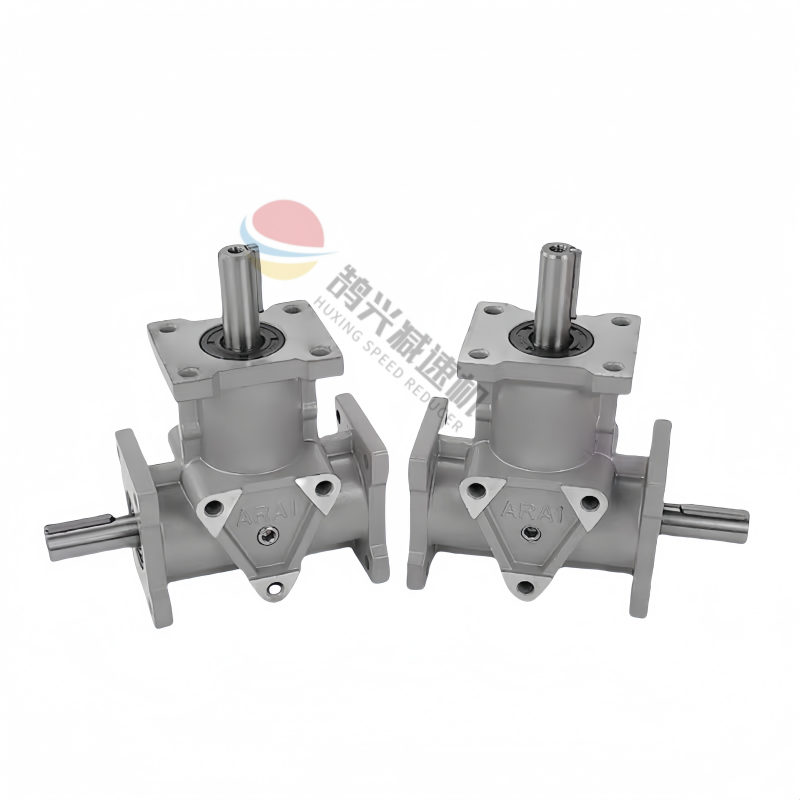

Huxing ARA Series Spiral Bevel Gear Steering Gearbox

Flexible reversing, powerful transmission, and stable precision

Multi-angle reversing, unrestricted layout adaptation

The spiral bevel gear transmission structure enables multi-angle power steering.

Diverse input and output shaft arrangements easily adapt to complex equipment transmission paths,

solving the problem of single steering in conventional models.

High-rigidity gear body, heavy-duty and impact-resistant

Precision-hardened and ground tooth surfaces ensure uniform meshing force, excellent overload

and impact resistance, and prevent deformation and tooth breakage under heavy load conditions,

leading the class in load-bearing capacity.

Smooth transmission and low noise, low power loss

High tooth profile fit results in low operating vibration and noise, minimal power transmission loss,

excellent energy efficiency, and lower long-term energy costs.

Robust sealing protection, strong versatility in various working conditions

The sealed housing with high-quality seals prevents dust and oil leaks, adapting to various harsh indoor

and outdoor environments, and ensuring excellent stability during continuous all-weather operation.

Unique Barriers & Pain Point Solutions: Self-developed bevel gear forming process ensures stringent control

over transmission precision. Highly versatile parts allow for replacement of mainstream similar products.

Customized specifications and installation styles are supported, with rigorous quality control before shipment.

Effectively solves common industry problems such as limited reversing, insufficient torque, easy oil leakage,

and operational vibration. Optimal reversing for mechanical transmissions in multiple fields,

suitable for various industrial equipment worldwide.

Product Features: The ARA series spiral bevel gear steering box is lightweight, compact, and has a high load capacity.

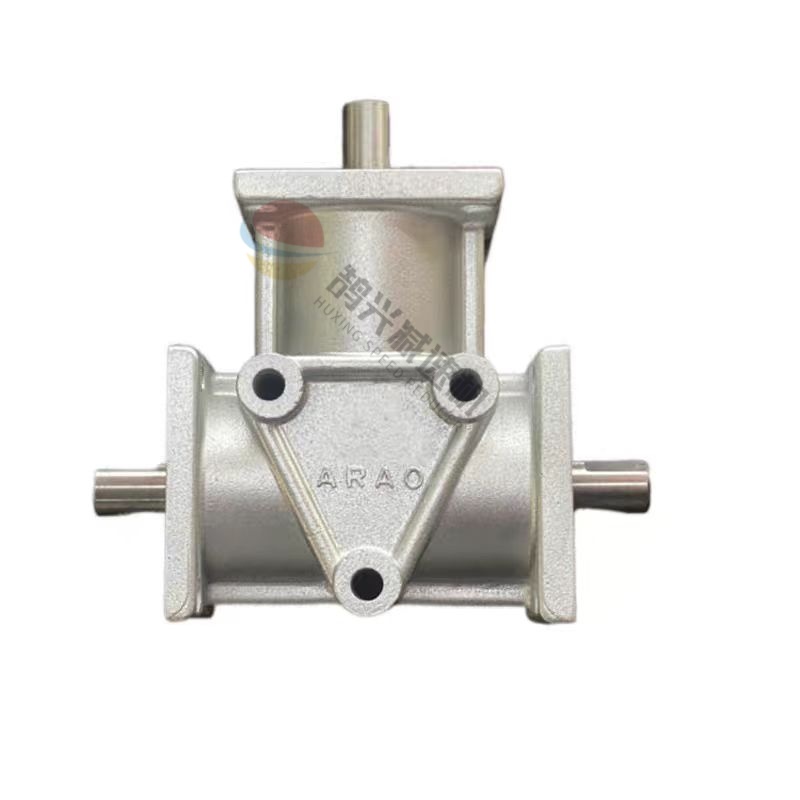

The robust housing is made of die-cast aluminum alloy. It features an attractive appearance, a reasonable design,

and can operate in both forward and reverse directions. Input and output methods utilize a multi-directional structure with

diverse output options. It has a wide range of applications, high torque, low noise, and long service life.

Technical Parameters:

Power: 0.018KW～4.94KW

Torque: 6.95～46.8Nm

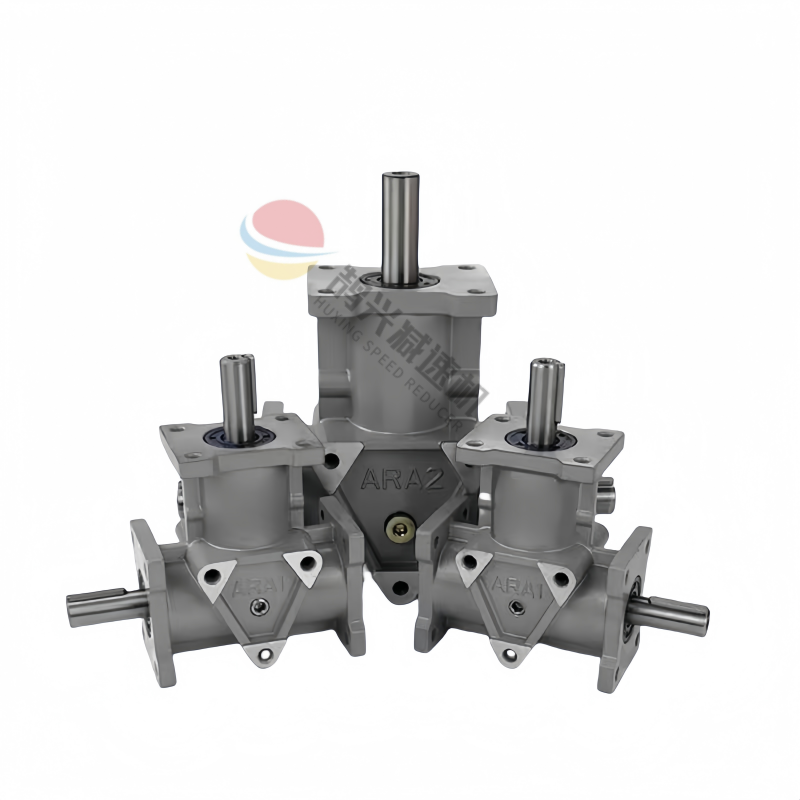

Gear Ratio: 1:1, 2:1
