planetary gearbox vs worm gear reducer

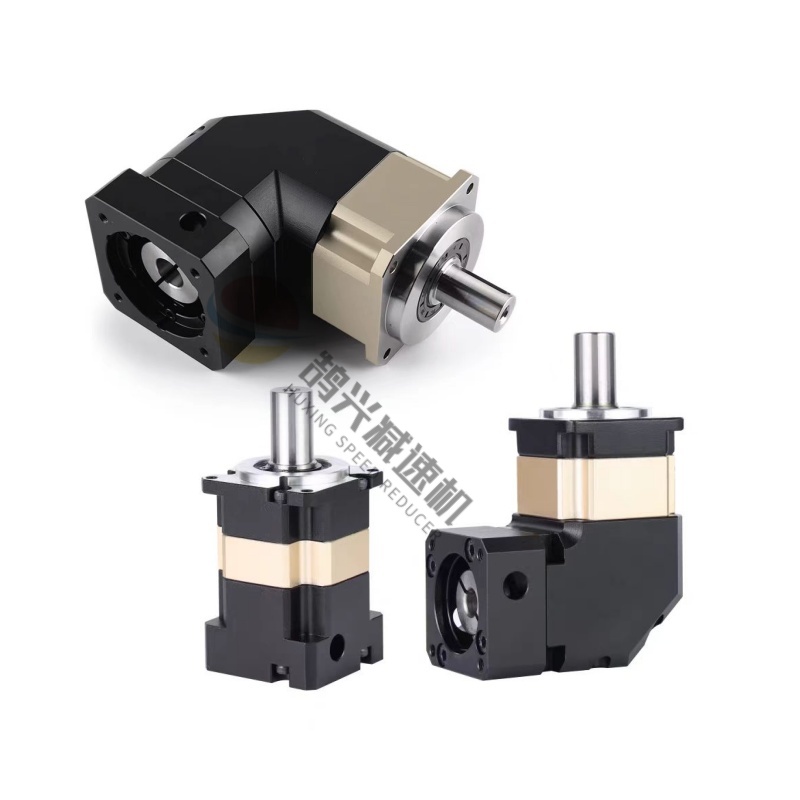

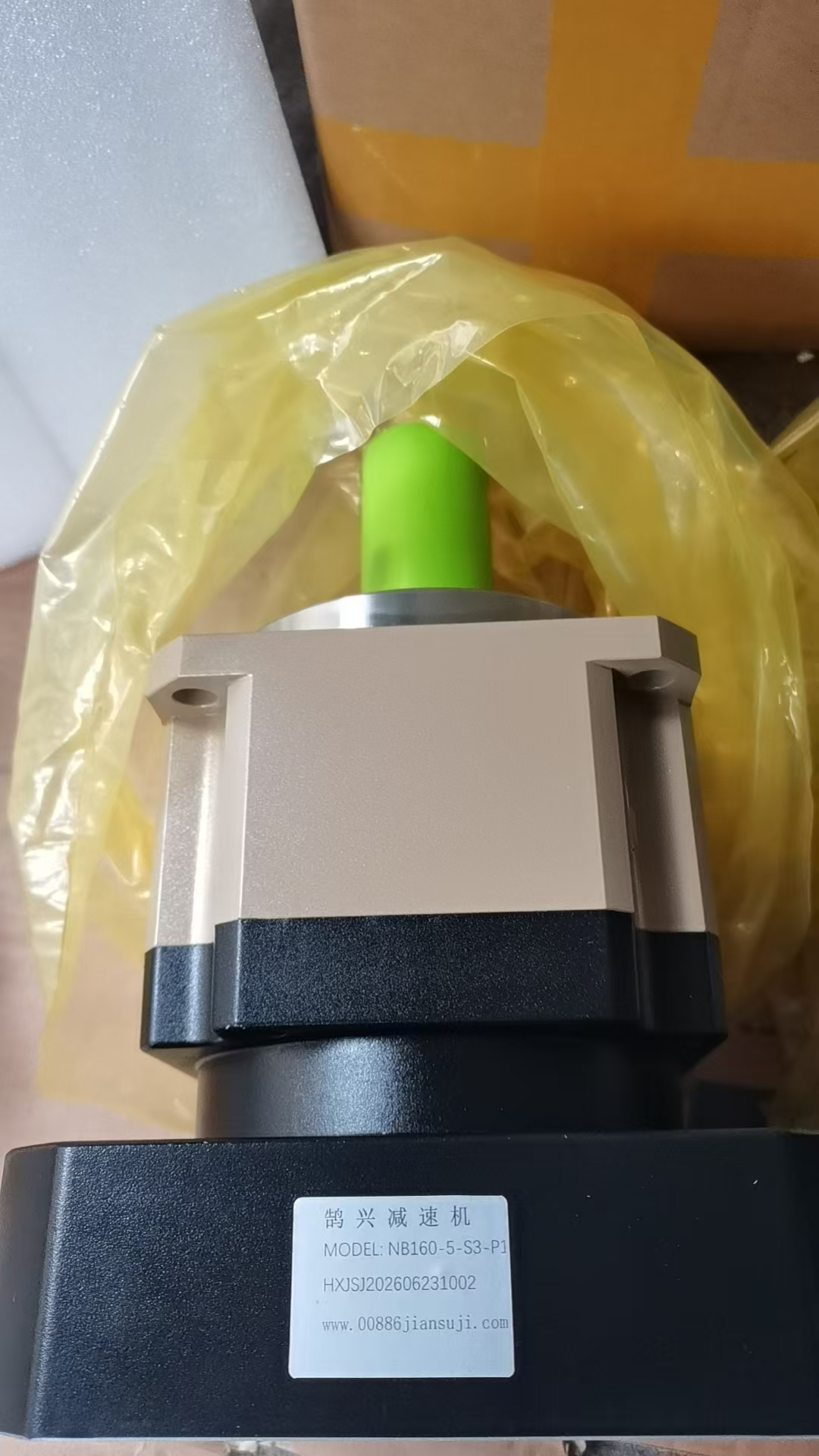

Planetary gear reducers boast high transmission efficiency, with single-stage reduction reaching 98%,
two-stage reducingrs reaching 95%,
and three-stage reducingrs reaching 92%. They also offer high precision (1-3 arc minutes),
a compact structure, a wide speed ratio range,
high torque capacity, and require no lubrication for life.

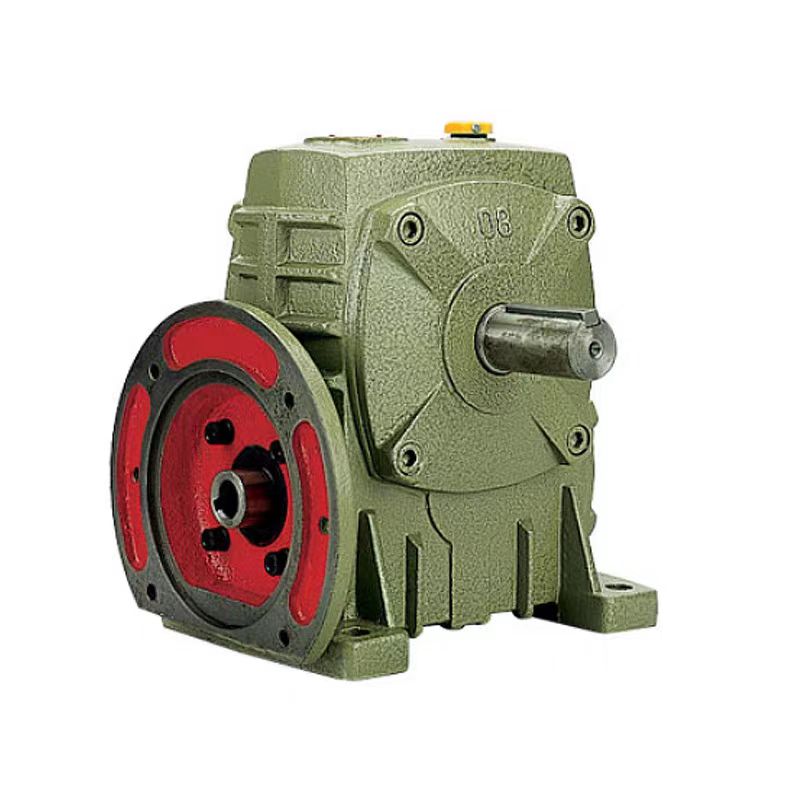

Worm gear reducers, on the other hand, have lower transmission efficiency, typically only 50%-85%.
The most significant characteristic of worm gear reducers is their self-locking function, meaning that
while the worm can drive the worm wheel, the worm wheel cannot drive the worm.
This self-locking function requires certain conditions to be met; generally, a speed ratio greater
than 40 is considered more reliable.
This characteristic is why they are widely used in vertical movements, inclined linear movements,
and applications
requiring protection against slippage, load drop, and other hazards, such as in lifting equipment,
winches, and inclined
conveyors. Of course, worm gear reducers also come in two-, three-, and multi-start configurations.
Two-head and
multi-head worm gear reducers lack self-locking functionality and offer higher transmission efficiency
than single-head worm gear reducers, making them suitable for high-speed motion.
Planetary Gear Reducers vs. Worm Gear Reducers: Professional Selection Comparison
I. Structure and Efficiency: Planetary gear reducers transmit power through a shared load across the sun gear,
planet gears, and ring gear, achieving a single-stage efficiency of 90%–97%. They generate very little heat,
making them suitable for continuous high-load operation. Worm gear reducers
rely on sliding friction for transmission,
typically achieving only 50%–85% efficiency. They generate significant heat at high speeds,
often requiring cooling
devices for continuous operation.
II. Precision and Backlash: Precision planetary gear reducers can control backlash
within 1–3 arcminutes, making
them the preferred choice for servo motors, CNC machine tools, and robotic arms.
Ordinary worm gear reducers
have larger backlash; although double-lead preload can reduce backlash,
the overall precision is far inferior to planetary structures.
III. Self-Locking and Safety: This is a unique advantage of worm gear reducers.
Most single-stage worm gear
reducers possess self-locking properties, meaning the output end cannot be reverse-driven,
inherently providing
braking functionality. This is particularly advantageous in anti-reverse driving scenarios
such as winches, lifting platforms,
and inclined conveyors. Planetary reducers lack this characteristic and require an external brake.
IV. Space and Installation Planetary reducers feature a coaxial design, extremely high torque density,
and a compact size,

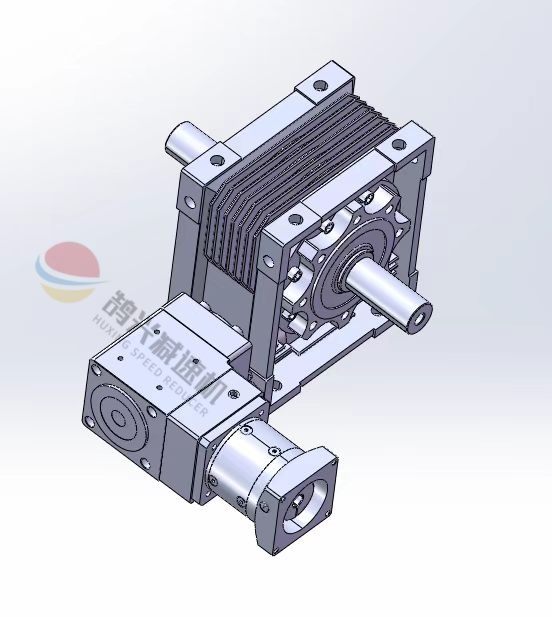

making them suitable for precision transmission applications with limited space. Right-angle planetary
reducers also exist,
where the worm gear output and input are at a 90° angle, inherently achieving right-angle transmission.
This makes installation on conveyor lines more convenient, but they are typically larger
in size for the same torque.
V. Cost and Life Cycle Worm gear reducers have low manufacturing costs
and a significant price advantage,
but their low efficiency leads to high long-term energy consumption,
and the worm gear requires periodic replacement
after wear. Planetary reducers have a higher initial investment,
but their high efficiency and long lifespan significantly
reduce the total life cycle cost, making them more cost-effective
for high-cycle production lines.
Quick Selection Guide
Specifications: Planetary Gear Reducer, Worm Gear Reducer
Efficiency: High (≥90%), Medium-Low (50–85%)
Backlash: Extremely Low, Medium to High
Self-Locking: None, Yes
Suitable Operating Conditions: Continuous, Precision, High Speed, Intermittent,
Anti-Reverse, Heavy-Duty Starting
Typical Applications: Robots, Machine Tools, Servo Machines, Elevators,
Winches, Inclined Conveyors
How to Decide?
For those prioritizing precision, efficiency, and long-term maintenance-free operation,
choose planetary gear reducers.
For those requiring self-locking, intermittent operation, or extreme cost sensitivity,
choose worm gear reducers.
If your operating conditions are complex and difficult to determine,
contact us for professional selection calculations.
