Gear Reducer Quality Standards: Ignoring These Six Items During Inspection is a Waste of Time
Gear reducer factory inspection is not simply a matter of "it can turn." A qualified gear reducer
must pass six independent tests of stringent standards before leaving the warehouse.
Neglecting any one of these is like planting a time bomb in the customer's production line.
1. Gear Accuracy: The Starting Point of Meshing.reducer quality inspection standards
Gear accuracy grade (DIN 6 and above) directly determines noise and lifespan. Inspection items
include cumulative pitch error, tooth profile error, and tooth direction error. If any of these three
exceeds tolerance, periodic impacts will occur during meshing, causing a sharp increase
in noise and a drastic decrease in lifespan. For batch sampling inspection, three consecutive
qualified pieces are required for the batch to be considered acceptable.
2. Housing and Mounting Surface: The Invisible Source of Off-center Load
The parallelism and perpendicularity of the mounting base and output flange must
be controlled within 0.02mm. Exceeding this tolerance means that after customer installation,
the gears inside the reducer will be unevenly loaded, and the bearings will bear additional
bending moments. Even with high gear accuracy, housing deformation will render
the entire process useless.
III. No-Load Operation: Troubleshooting by Sound
Each reducer must be run under no-load conditions. Vibration should be measured at the
input and output bearing housings using a stethoscope or vibration sensor.
A normal vibration should be a smooth, continuous humming sound. Regular clicking
or hissing sounds indicate gear damage, foreign objects, or bearing defects.
The no-load vibration value serves as a benchmark for comparison after customer installation.
IV. Load Temperature Rise: The Ticket to Thermal Balance
Randomly inspect reducers running continuously at rated torque and monitor
the oil sump temperature rise. After reaching thermal balance, the oil temperature
must stabilize within the allowable range without abnormal rise.
Excessive temperature rise indicates excessive gear meshing loss or oil churning loss,
leading to rapid lubrication failure.
V. Sealing Test: The Invisible Defense
Air pressure or immersion tests verify the sealing performance of all shaft seals, end covers,
breathers, and junction boxes. IP65 and higher models are tested individually.
Even a tiny leak at the customer's site can result in a mess of oil.
VI. Materials and Heat Treatment: Visible Only Upon Dissection, but Random Inspection is Mandatory
Gear hardness, carburized layer depth, and core microstructure must be verified using physicochemical testing.
No matter how good the appearance, insufficient hardness will lead to pitting and peeling within three months.
Metallographic samples are retained for each batch for future reference; this is the absolute minimum quality standard.
We make testing a standard part of our products.

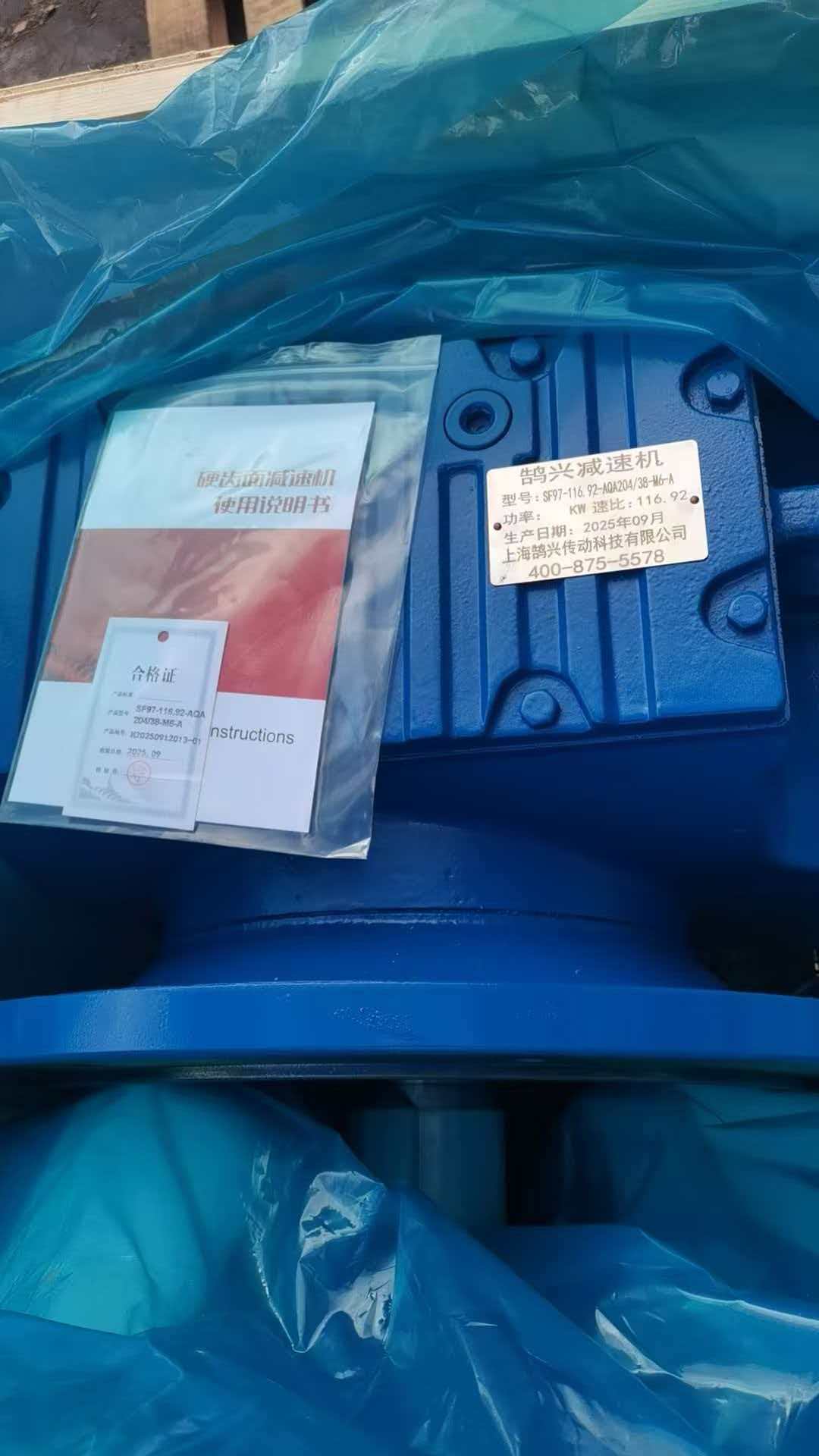

Each reducer comes with vibration, temperature rise, and gear precision test reports.
Magnetic particle testing and ultrasonic testing can be added for special operating conditions.
Contact the Huxing Transmission - Reducer - Motor Engineering Team for complete testing standards and report templates.
