Analysis of the Causes of Output Shaft Fracture in Gear Reducers:
One Shaft Breakage Causes Entire Equipment Shutdown; Root Cause Must Be Investigated

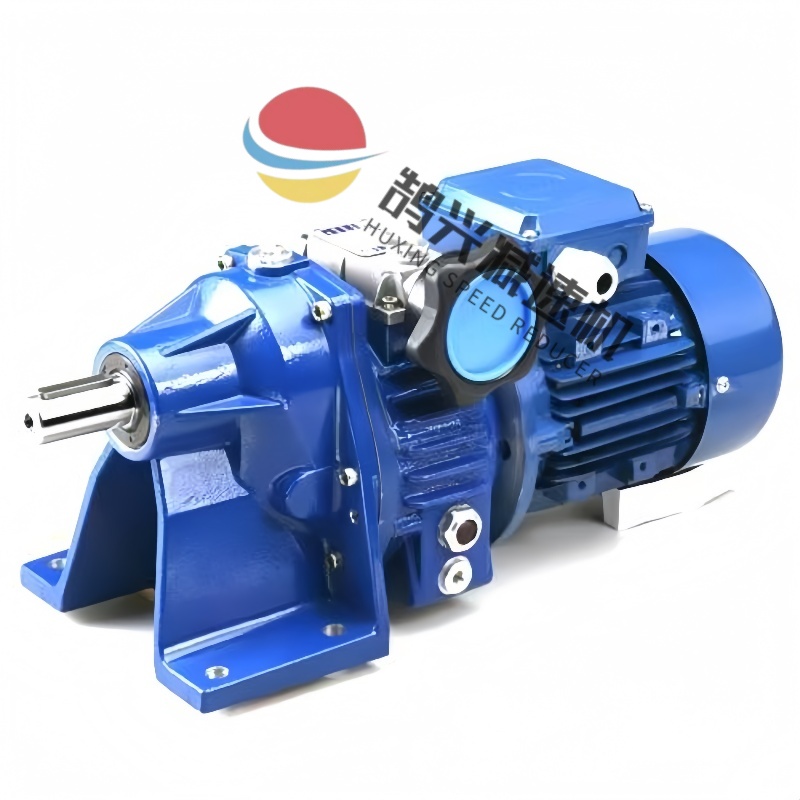

Output shaft fracture is one of the most serious mechanical failures of gear reducers,
directly leading to production line paralysis. Simply replacing the shaft without investigating
the root cause will likely result in repeated fractures. The following is a detailed analysis
from four dimensions: design, materials, installation, and operating conditions.
I. Five Root Causes of Shaft Fracture
| Causes of Fracture | Typical Characteristics and Mechanisms | Percentage |
| **Overload/Impact Load** | Rough instantaneous fracture zone, one-time overload fracture
or low-cycle fatigue. Torque exceeds the material's yield strength, commonly seen in stalled rotors,
emergency stops, and heavy-load jamming. | Highest |
| **Stress Concentration** | Fracture originates at the root of the shaft shoulder, keyway sharp corner,
or insufficient unloading groove. Clear fatigue source, shell-like cracks extend. | Extremely High |
| **Material and Heat Treatment Defects** | Inclusions, white spots, quenching cracks, and insufficient
tempering lead to high brittleness. The fracture surface is flat with no obvious plastic deformation.
| Medium |
| **Poor Alignment/Excessive Radial Force** | The output end is subjected to excessive bending
moment,
the shaft shoulder is subjected to symmetrical cyclic bending stress, fatigue sources originate
at multiple
points on the surface, and the propagation zone accounts for a large proportion.
| Medium-High |
| **Torsion Vibration/Resonance** | Torsional stress increases suddenly at a specific speed,
the fracture surface
is often oblique at 45°, and the instantaneous fracture zone is large. | Medium-Low |
II. Fracture Surface Analysis: Failure Clues You Can Understand at a Glance
- **Fatigue Fracture**: Smooth crack propagation zone (beach-like texture)
+ rough instantaneous
fracture zone.
Fatigue sources are commonly found at keyway corners, shaft shoulder roots,
and surface scratches.
- **Overload Fracture**: The entire fracture surface is rough and fibrous,
with obvious necking
or plastic deformation,
mostly at the section with the maximum torque.
- **Brittle Fracture**: The fracture surface is flat and granular, with no macroscopic
plastic deformation,
often seen in improper heat treatment or low-temperature environments.
- **Combined Torsional Bending:** The cross-section is star-shaped or 45° spiral,
often accompanied by multiple fatigue sources.
**Quick On-Site Assessment:** Shining a flashlight on the keyway root; if radial
cracks are present,
it almost certainly indicates fatigue fracture caused by stress concentration.
III. Design Checklist
1. **Safety Factor:** ≥1.5 under static load, ≥2.0 under fatigue load. Calculate the
shaft diameter based
on allowable torsional shear stress.
2. **Stress Concentration Attenuation:** The shaft shoulder root must have a
radius of radius R≥0.1d;
a stress relief groove must be provided at the keyway end; right-angle root
cleaning is prohibited.
3. **Radial Force Calculation:** When cantilevered sprockets/pulleys are installed,
bending
stresses are superimposed;
the combined bending moment stress at the bearing at the shaft extension end needs
to be checked.
4. **Material Selection:** 42CrMo and 40Cr tempered are preferred; 20CrMnTi carburized
and quenched is used for
heavy loads, and flaw detection is required.
IV. Prevention and Rectification
- **Installation:** The radial deviation of the coupling alignment should be ≤0.05mm.
The sprocket hub should be
tightly fitted to the shaft shoulder. Excessive cantilever is strictly prohibited.
- **Operation:** Severe jamming during load start-up is strictly prohibited. Install a torque
limiter or safety pin.
- **Inspection:** Regularly perform magnetic particle or ultrasonic testing on the output shaft,
focusing on keyways,
shaft shoulders, and unloading grooves.
- **Improvement:** If frequent impacts occur during operation, the single key can be
replaced with a spline or
shrink disc connection to distribute stress.
Shaft breakage is not the end, but the beginning of re-matching.
Breakage often exposes weaknesses in selection and design. We provide finite element strength
