DC gear motor vs AC gear motor which is better?
DC Gear Motors vs. AC Gear Motors: Which is Better?
The answer is: there is no absolute "better," only "more suitable."
DC and AC gear motors each have their advantages and disadvantages.
Which one to choose depends on your power supply, control requirements,
operating conditions, and budget. Below, we clarify the core differences between the two.

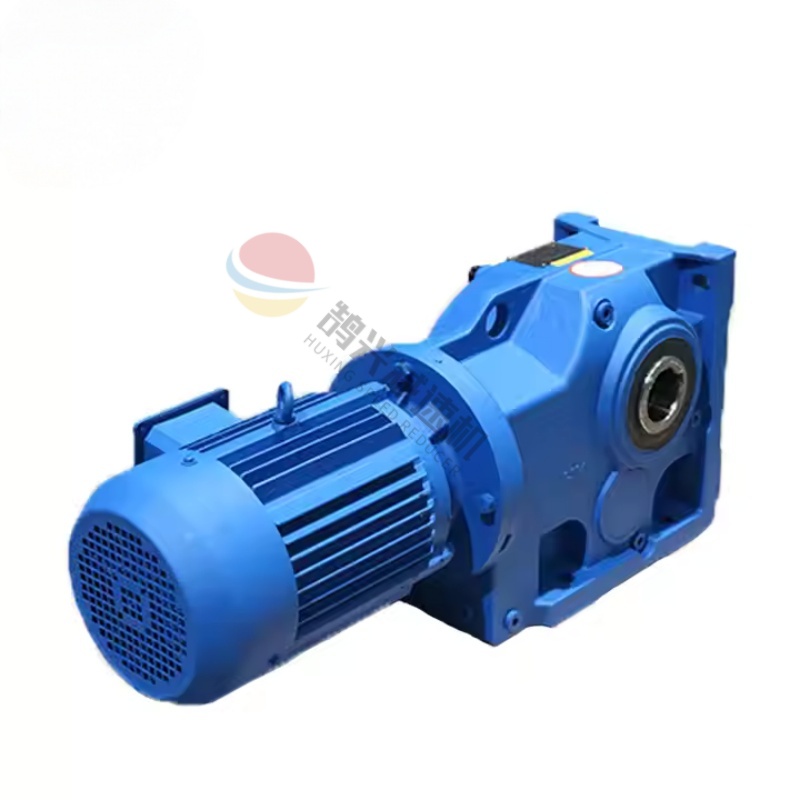

I. AC Gear Motors
Suitable for: Scenarios requiring mains power, continuous operation,
and where frequent speed adjustments are not needed.
Advantages:
- Lower Cost: AC motors are generally cheaper than DC motors of the same specifications.
- Virtually Maintenance-Free: No carbon brushes, no need for regular replacement of worn parts.
- Durable and Reliable: Simple structure, suitable for 24-hour continuous operation.
- High Efficiency: High energy utilization during constant speed operation.
Disadvantages:
- Speech Adjustment is Complicated: Requires a frequency converter (VFD),
increasing cost and complexity.
- Low Starting Torque: Weak initial acceleration.
- Frequent Start-Stops Can Cause Overheating: For example,
a split-phase motor may overheat if started more than 6 times per hour.
Typical Applications: Conveyor belts, water pumps, fans, compressors,
packaging machinery—equipment that "runs non-stop."

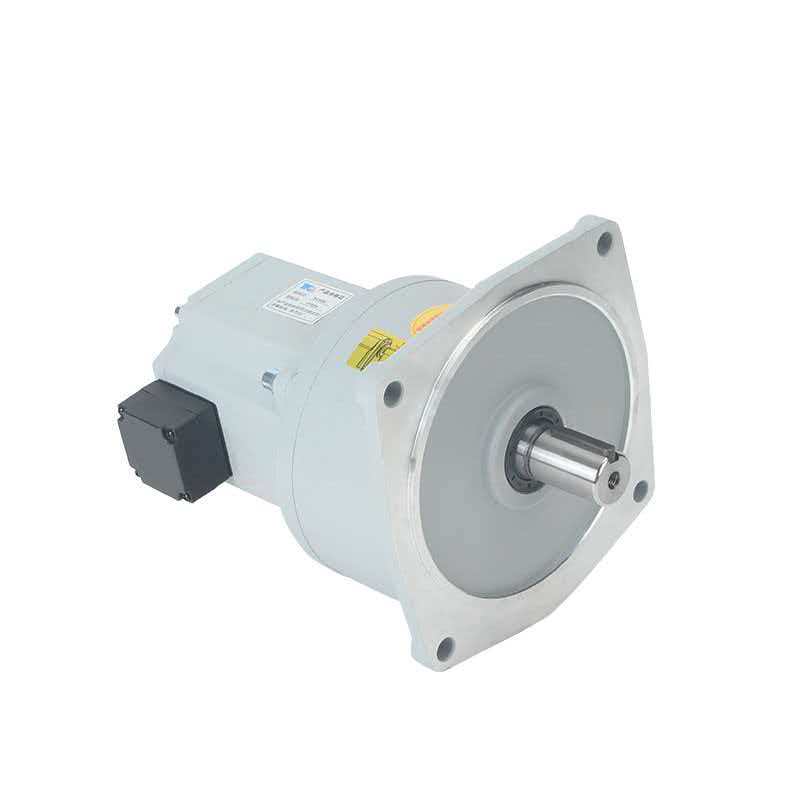

II. DC Gear Motor
Suitable for: Battery-powered applications requiring precise
speed control and frequent start-stop operations.
Advantages:
- Simple and precise speed adjustment:
Voltage directly determines speed; a simple knob adjusts it.
- High starting torque: Powerful from the start, suitable for heavy-load starts.
- Battery friendly: 12V and 24V low-voltage power supply, ideal for mobile devices.
- Fast control response: Flexible acceleration, deceleration, and forward/reverse rotation.
Disadvantages:
- Brushed motors require carbon brush replacement: Carbon brushes are consumables
and need replacement after prolonged use.
- Slightly higher price: Slightly more expensive than AC motors of the same specifications.
- Brushless DC (BLDC) motors are maintenance-free, but the controllers are more expensive.
Typical applications: Robots, medical devices, automotive parts
(seat adjustment, wipers, windows), portable devices, AGVs (Automated Guided Vehicles).
III. A Table to Help You Choose the Right Motor
| Comparison Items | AC Gear Motor | DC Gear Motor |
| Power Supply | 110V/220V AC Mains | 12V/24V Battery or Low-Voltage Power Supply |
| Speed Control | Requires an inverter, more complex | Simply adjust the voltage, simple and precise |
| Starting Torque | Average | High |
| Maintenance | Basically maintenance-free | Brushed motors require carbon brush replacement, brushless motors are maintenance-free |
| Price | Lower | Slightly higher |
| Suitable Scenarios | Constant speed, long-term continuous operation | Variable speed, frequent starts and stops, battery powered |
IV. Conclusion
Choose AC: If your equipment is plugged into AC power, runs continuously for hours,
and doesn't require frequent speed adjustments—choose AC; it's cheap, durable, and worry-free.
Choose DC: If your equipment is battery powered, requires precise speed control, or involves frequent starts and stops—choose DC.
Special Note: If you want the easy control of DC motors but don't want to replace carbon brushes,
you can consider brushless DC (BLDC) motors—they combine the advantages of both: maintenance-free, good speed control,
and high efficiency, but they are more expensive.
Choose the one that suits you best. Actually, DC gear motors and AC gear motors each have their own advantages and disadvantages.
It depends on your lifespan requirements.
