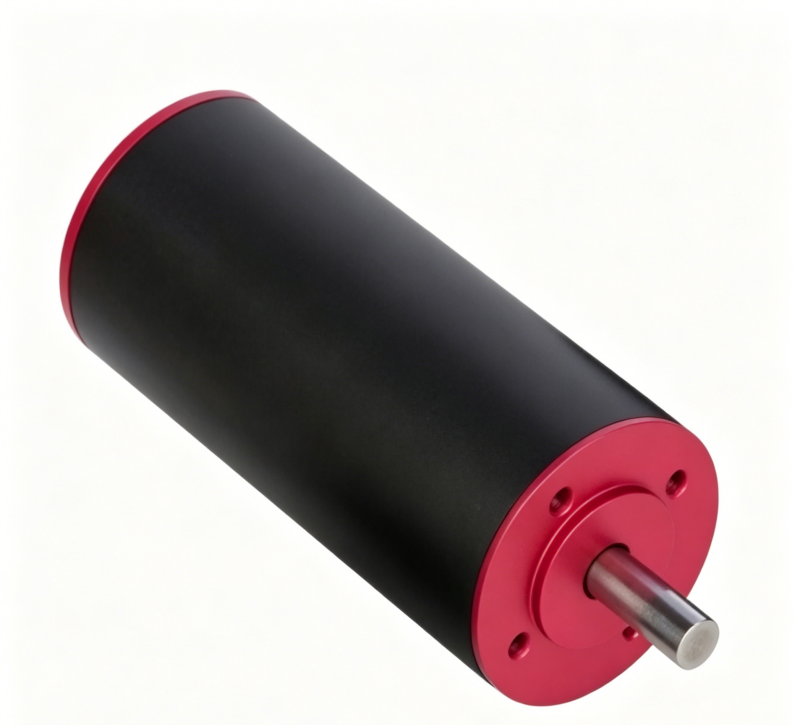

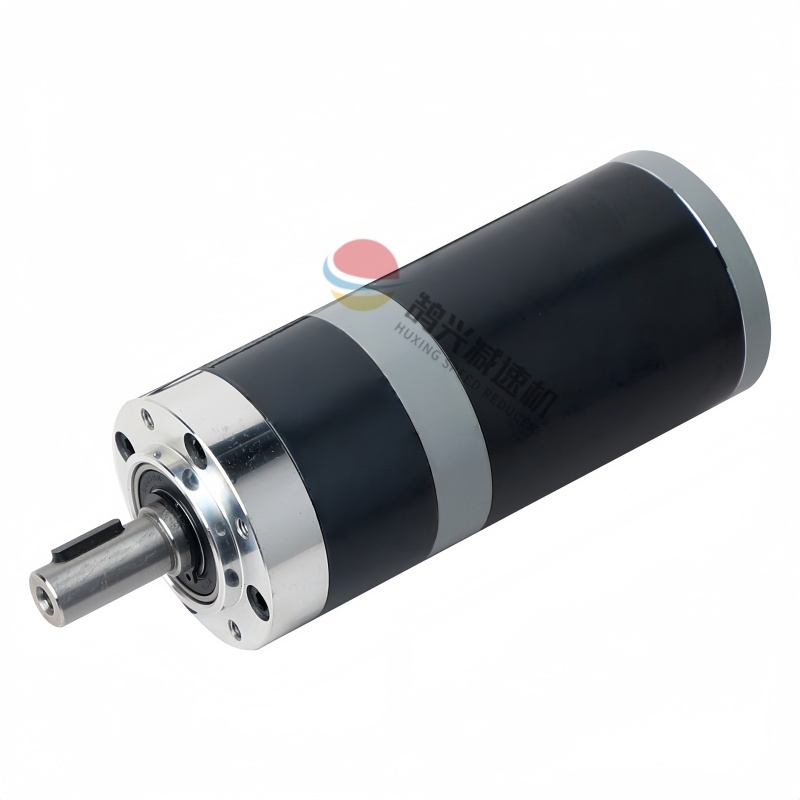

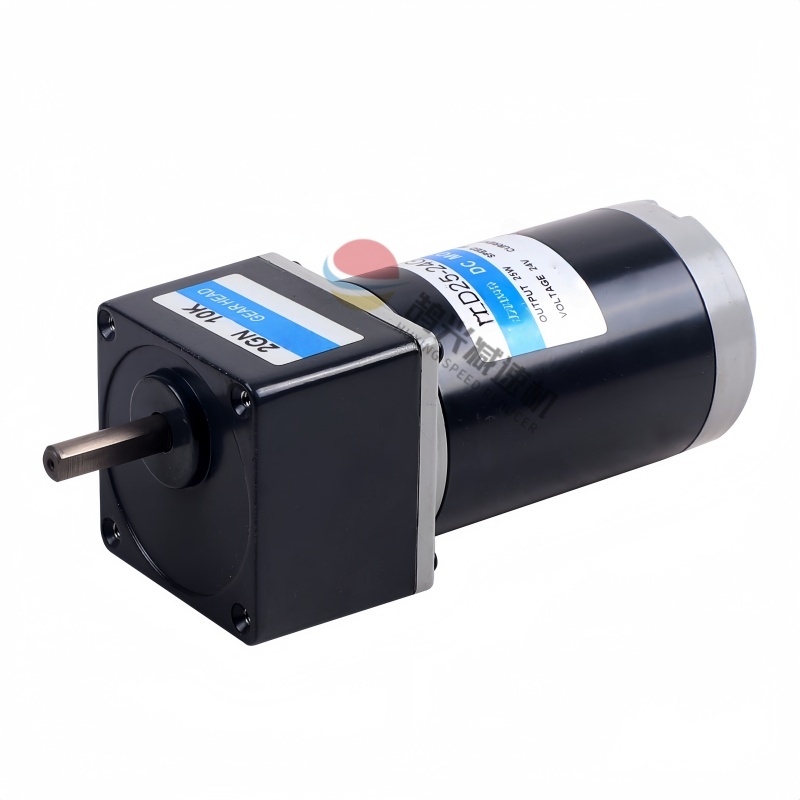

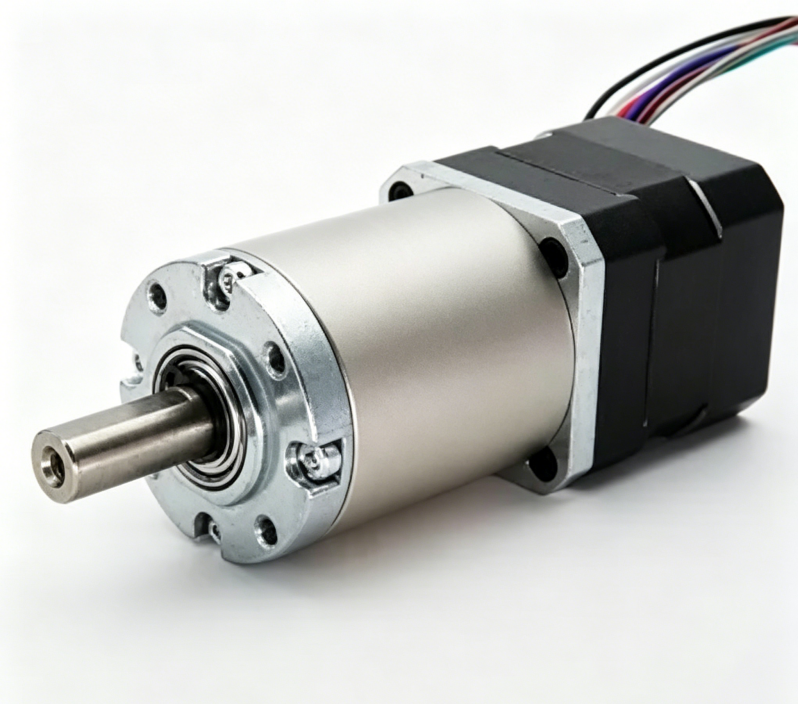

Brushless permanent magnet motor reducer

---

    As a well-known Chinese brand product, Huxing brushless permanent magnet motor reducer

is a new generation of intelligent energy-saving precision transmission upgrade solution,

exported to more than 80 countries and regions around the world, highly recognized

and stably repurchased by international high-end equipment manufacturers

and is a high-end preferred equipment to replace traditional brushed motors

and ordinary induction motors.

 The product adopts rare earth neodymium iron boron permanent magnet material

high-purity pure copper winding, alloy carburizing steel precision gear

combined with FOC vector speed control technology, precision gear grinding process

stress relief treatment and dust-free standardized assembly, to solve the industry pain points

such as traditional motor carbon brush vulnerability, spark generation, severe heating

high energy consumption, speed regulation lag, frequent maintenance

and short service life from the root.

Compared to similar products, this machine has six core advantages: ultra-low energy consumption

low-speed high torque without false standards, stepless precise speed regulation

silent and clean operation, maintenance free operation, and ultra long service life.

It supports 1.5 times short-term overload

RS485 intelligent communication docking and PLC system linkage

IP54 dust and moisture prevention, and can operate continuously and stably for a long time

 greatly reducing equipment operation and energy consumption costs.

Widely adaptable to various high-end working conditions such as industrial automation

packaging printing, food and pharmaceutical clean equipment, precision instruments

new energy intelligent equipment, and mild explosion-proof, it has become a benchmark for

domestic products in the global high-end automation precision transmission

field with stability and precision far exceeding the industry.

The core parameters are as follows:

-Power range: 25W-400W full coverage, can meet the needs of micro precision drive to

small and medium-sized heavy-duty transmission

-Rated voltage: DC12V/24V/48V/60V with multiple voltage options, suitable for

industrial DC, intelligent equipment, and new energy supporting scenarios

-Input speed: 3000-4500rpm, uniform and stable speed, no no-load shaking or load drop phenomenon

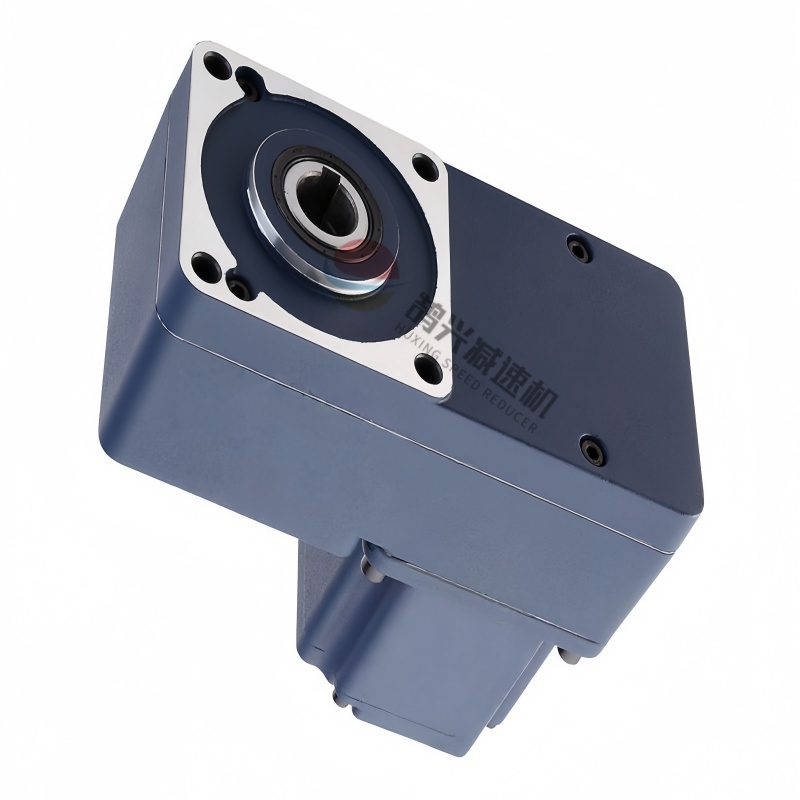

-Reduction ratio: 6.3-810 with multiple gear options, supporting single-stage and multi-stage reduction

capable of achieving ultra-low speed and ultra large torque output

-Output torque: 0.2-120N · m, supports 1.5 times short-term overload, does not slip under heavy load

and has no power attenuation

-Work efficiency: up to 85% -90%, far exceeding traditional brushed motors

with outstanding energy-saving advantages

-Service life: The continuous operation life can reach 5000+hours

which is 3-5 times that of ordinary brushed motors

-Control mode: Supports stepless speed regulation, forward and reverse rotation, precise start stop control

compatible with FOC magnetic field orientation control

RS485 communication, and can be connected to PLC intelligent systems

-Protection level: IP54 dustproof and moisture-proof

suitable for complex working conditions such as high dust, humidity, and room temperature

-Operating noise: The whole machine operates with low noise, reducing 20-30dB

compared to similar traditional motors, meeting the requirements of quiet workshops and clean equipment
