70mm 15W/20W Micro Gear Motor Dimensions & Installation Drawing

H1: 70mm 15W/20W Micro Gear Motor Dimensions & Installation Drawing

H2: 70mm Gear Motor Overview

This 70mm micro gear motor series is available in 15W and 20W power ratings. It features a compact 70x70mm square flange design, offering high torque density for automation, packaging, and medical equipment. Both fixed speed and variable speed (with speed controller) configurations are available for OEM integration.

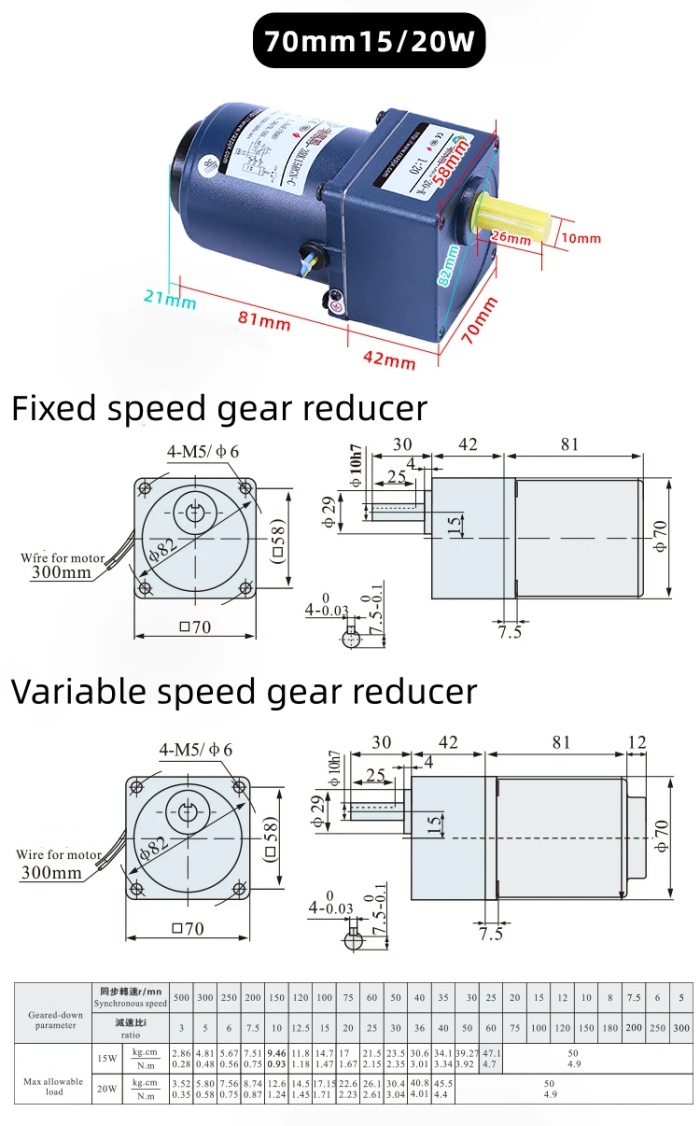

Dimensional drawing of 15W/20W gear motor

H3: Key Applications

  • Industrial automation equipment

  • Packaging machinery

  • Medical devices

  • Vending machines

  • Conveyor systems

AC gear motor Model: 5IK120GU, 5IK120A, 5IK120GU-A, 5IK120GU, 5IK120GU-S3.

5RK120GU, 5RK120A, 5RK120GU-A, 5RK120GU-C, 5RK120GU-AM, 5IK120GU-CM, 5IK120GU-SM.

2GN, 3GN, 4GN, 5GN, 5GU, 6GU.
