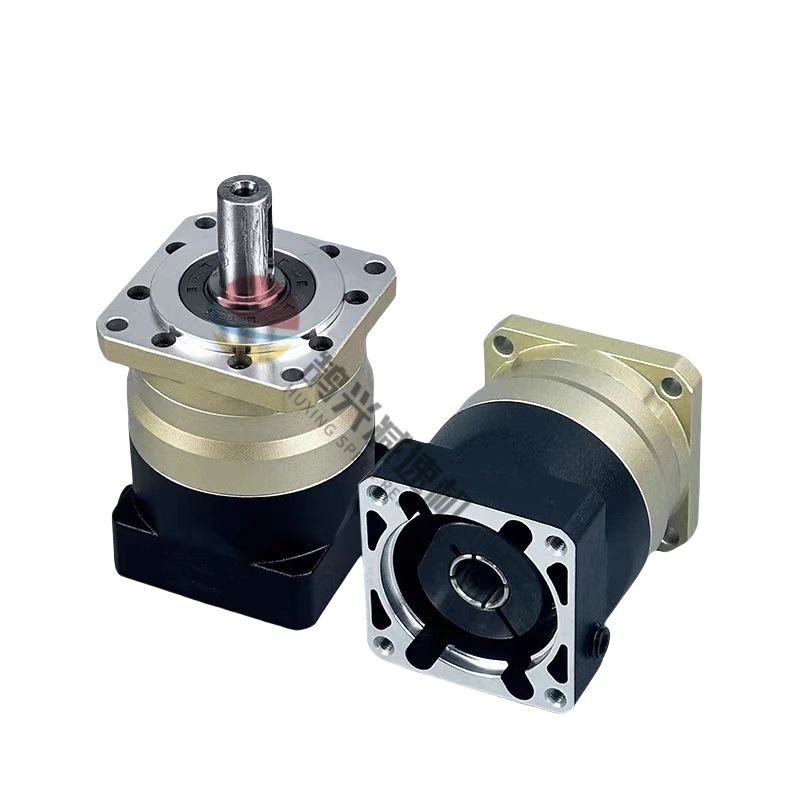

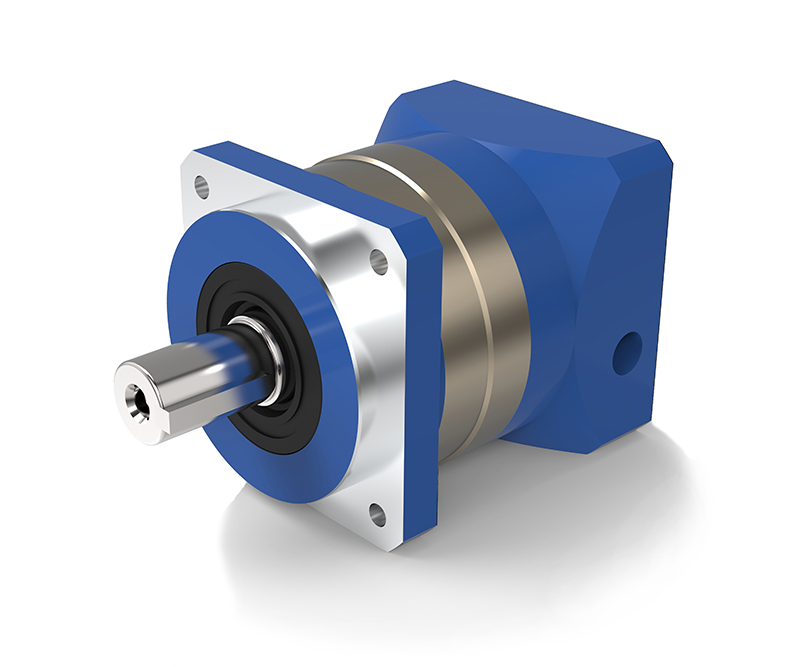

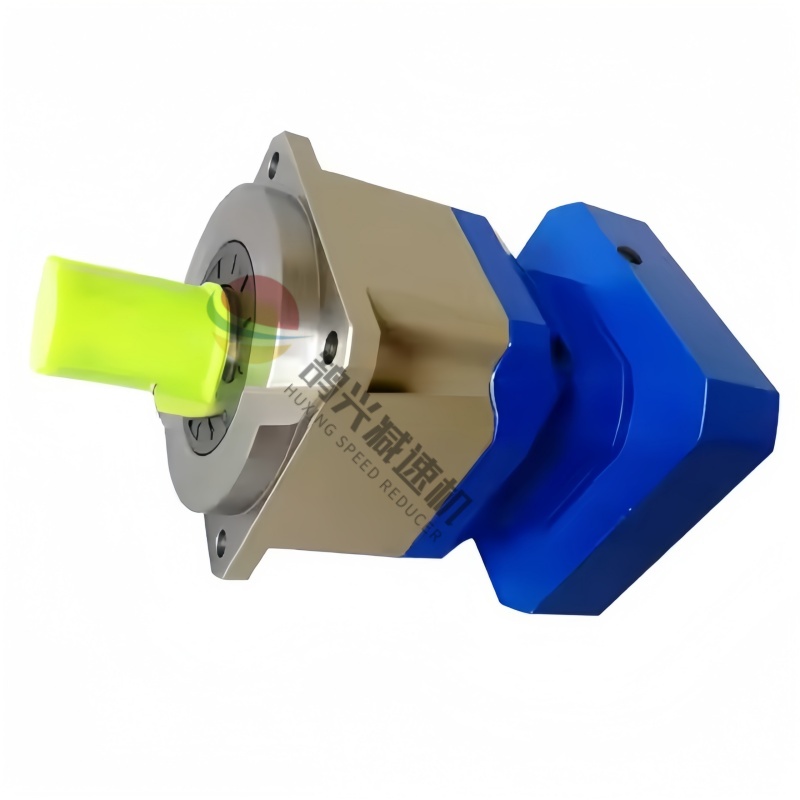

AF Helical planetary gearbox

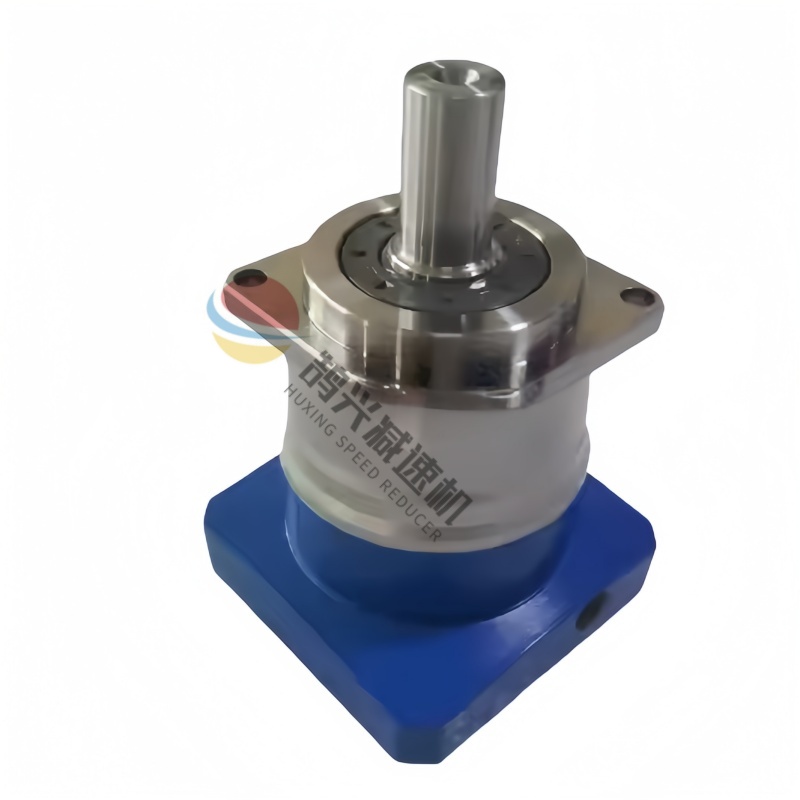

- 100% helical gearing for ultra smooth and quiet operation
- Ultra low backlash P0 ≤1 arcmin for highest precision positioning

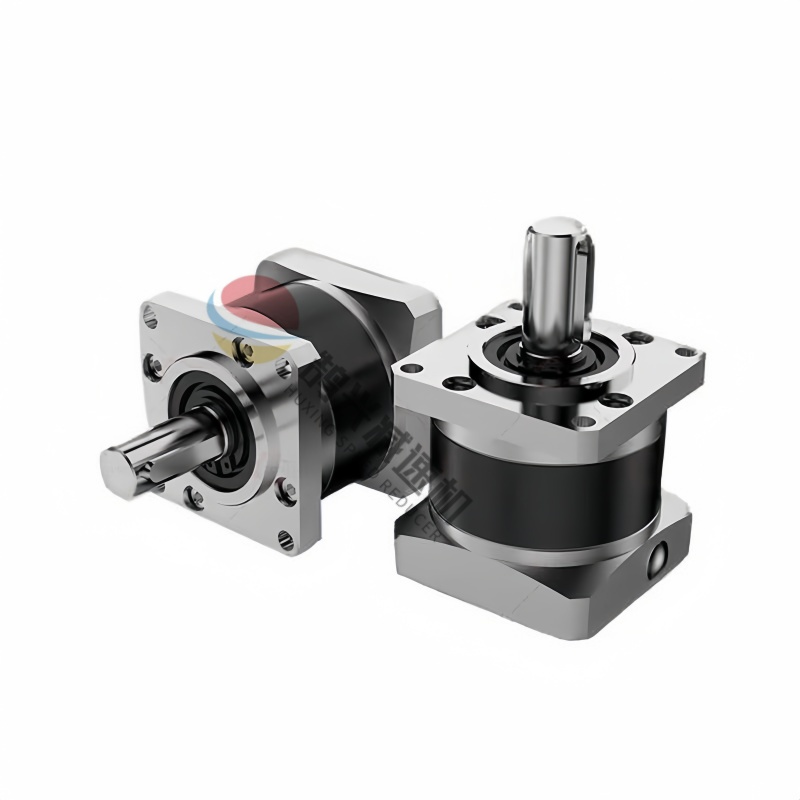

- High precision taper roller bearings for superior axial/radial load capacity
- Single stage efficiency ≥97% for maximum energy savings

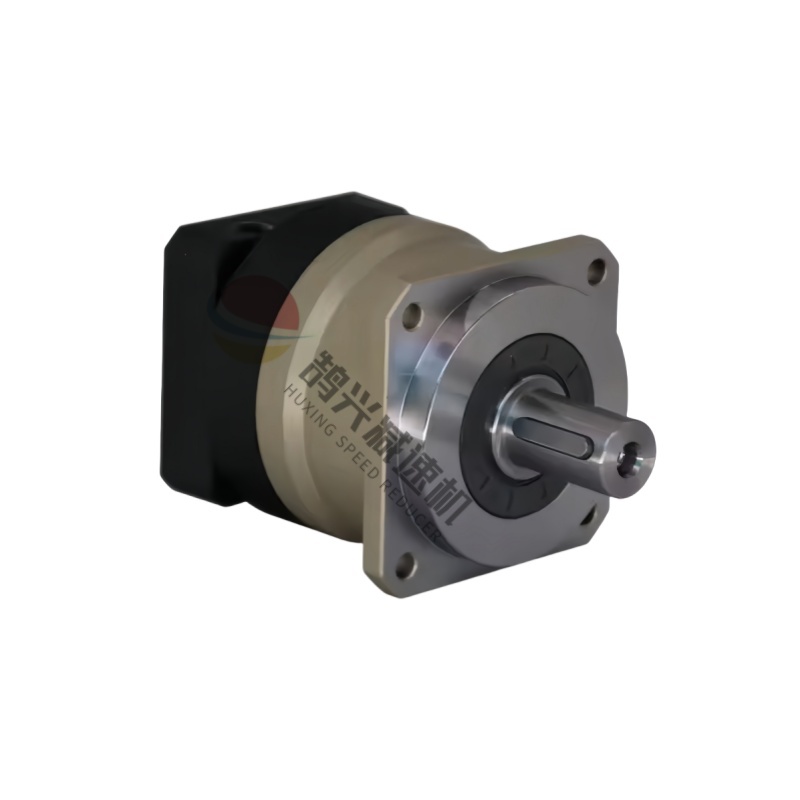

Product Name: Precision Planetary Reducer
Product Series: AF Series Performance Features
Performance Characteristic
Output size: 60-180mm
Speed ratio: 3 4 5 6 7 8 10, 15-200
Minimum back clearance:
Single Stage ≤ 1 Arcminute Double Stage ≤ Arcminute
Performance Data
The AF series reducer has the characteristics of low inertia, low vibration, low noise, high rigidity,
and easy installation, and is suitable for the acceleration
and deceleration transmission of AC servo motors,
DC servo motors, stepper motors, and hydraulic motors.
The AF series reducer targets those applications requiring extremely smooth operation
even athigh axial or radial load at high speed, The enhanced load bearing
capacity guarantees itsdesign precision at almost any demanding condition.
