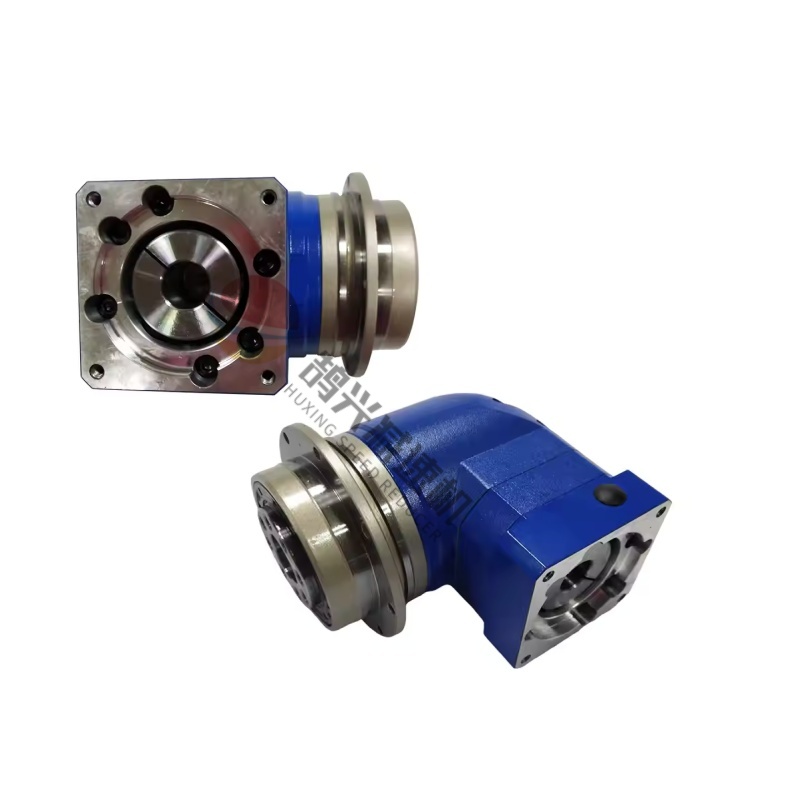

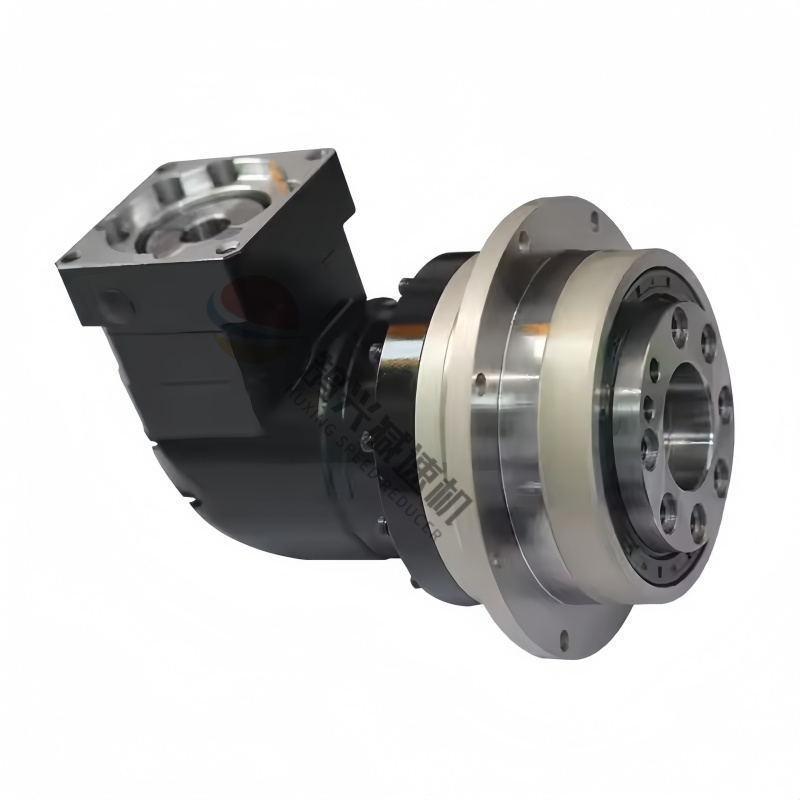

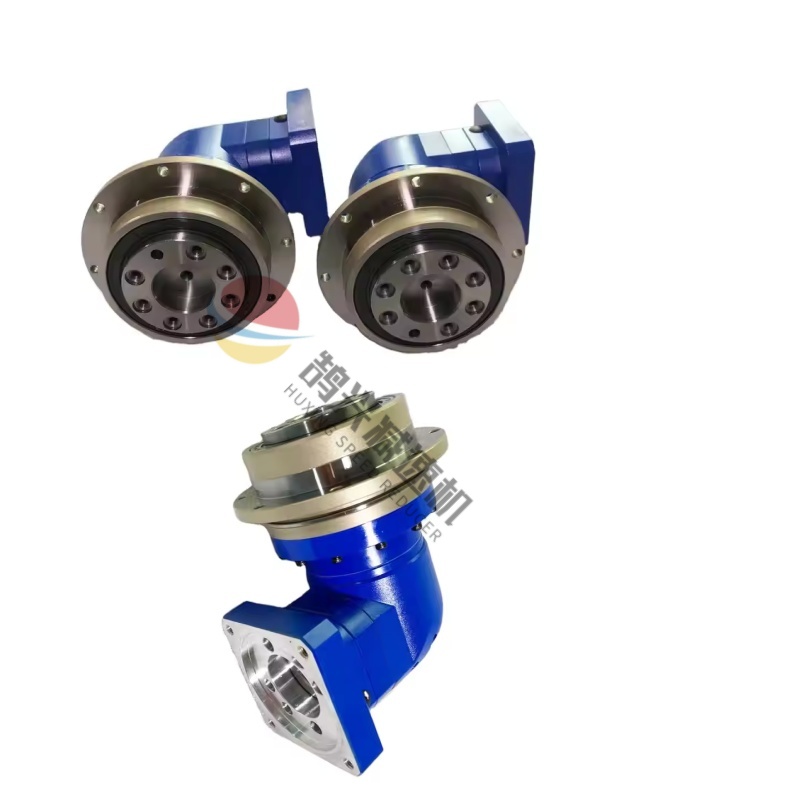

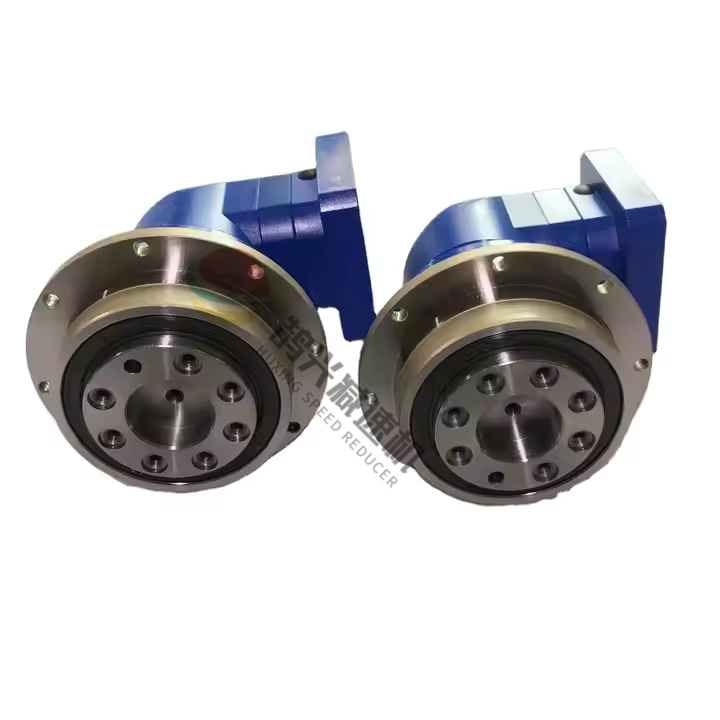

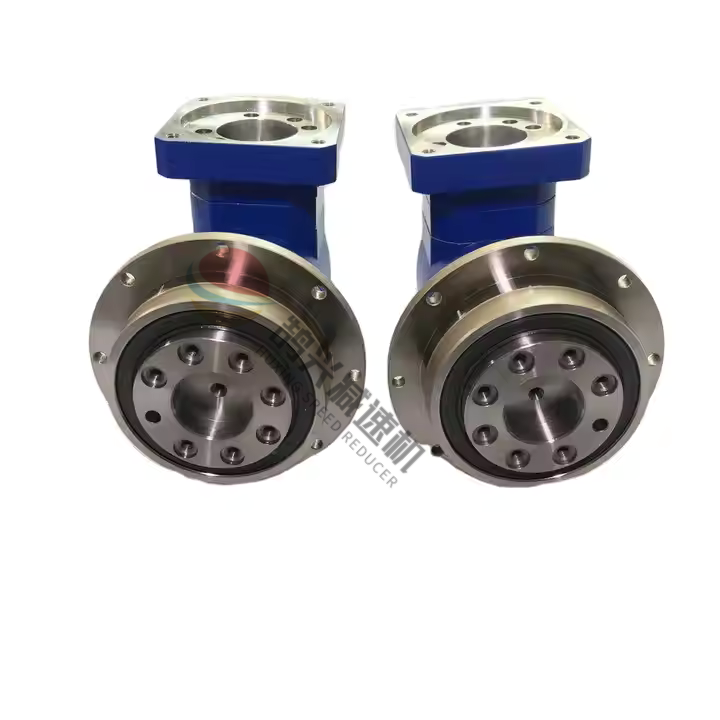

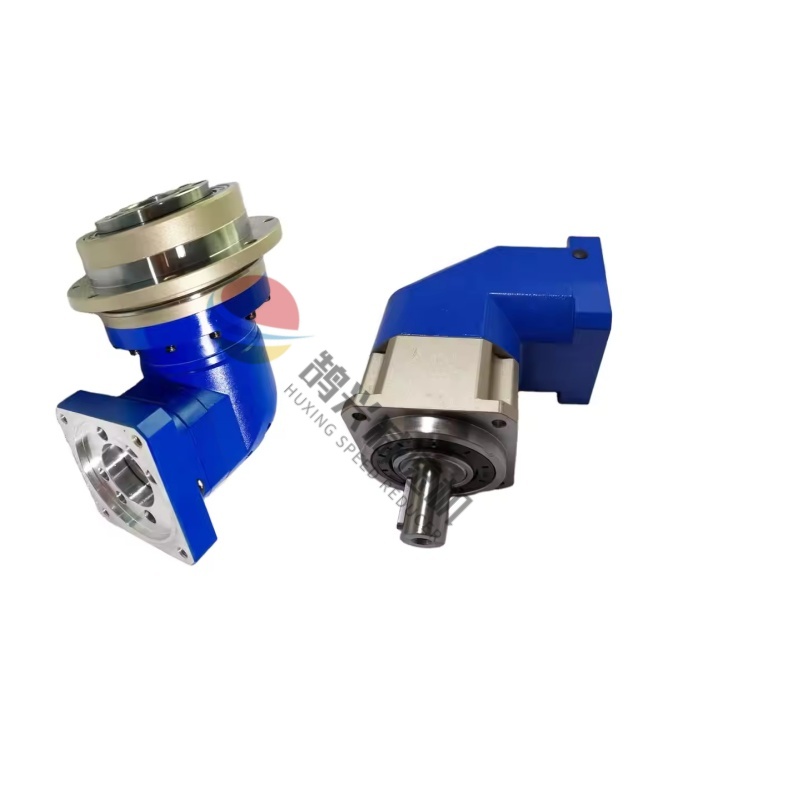

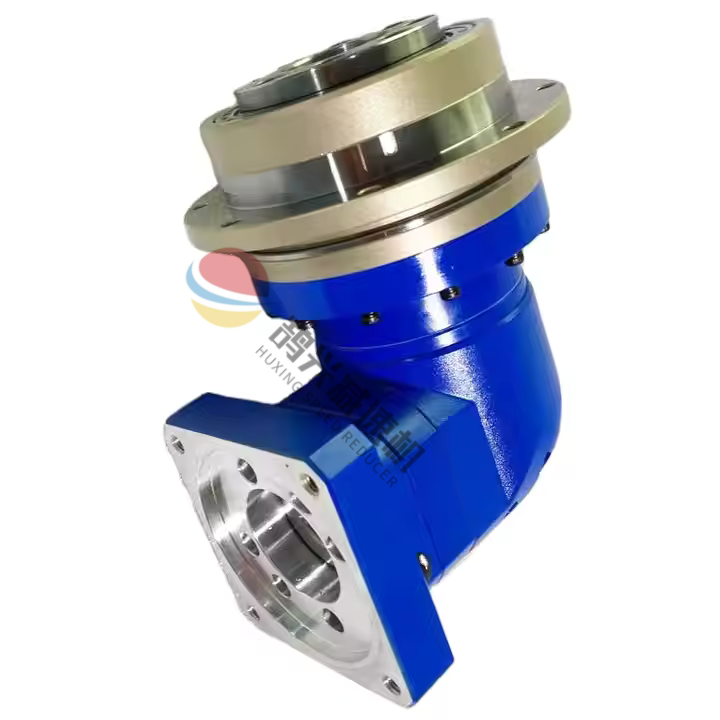

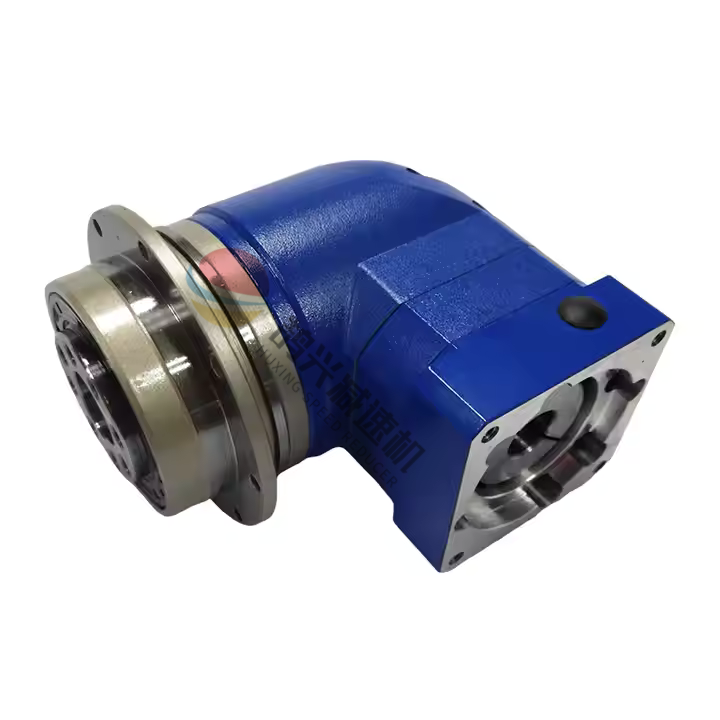

ADR Series 90-Degree Servo Precision Planetary Gearbox
- Disc flange output for rigid and compact machine mounting
- Right angle 90° design saves installation space
- IP65 sealed structure for dust and water protection
- Flange mounted design for direct servo motor attachment
ADR Series Gear Reducer
ADR Series Product Models: ADR064/ADR090/ADR110/ADR140/ADR200
Product Features: Multi-sided Installation, Space-Saving
Product Introduction: High Torque, Low Backlash, Low Noise
● Compact rotary flange output shaft, saving space while enhancing torsional stiffness
Product Series: ADR Series
Performance Characteristic
Output size: 47-255mm, 355mm
● Speed ratio: 4/5/7/10, 20-200
● Minimum back clearance:
Single stage (One Stage) ≤ 2 arcminutes (Arcminute)
Double stage (Two Stage) ≤ 4 arcminutes (Arcminute)
Performance Data
This planetary gearbox provides you with innovative and advanced technical solutions,
delivering exceptional performance across all functional domains.
ADRseries planetary reducer offers you innovative and advanced solutions in terms oftechnology,
which has achieved outstanding results in any flange-driven applications.
