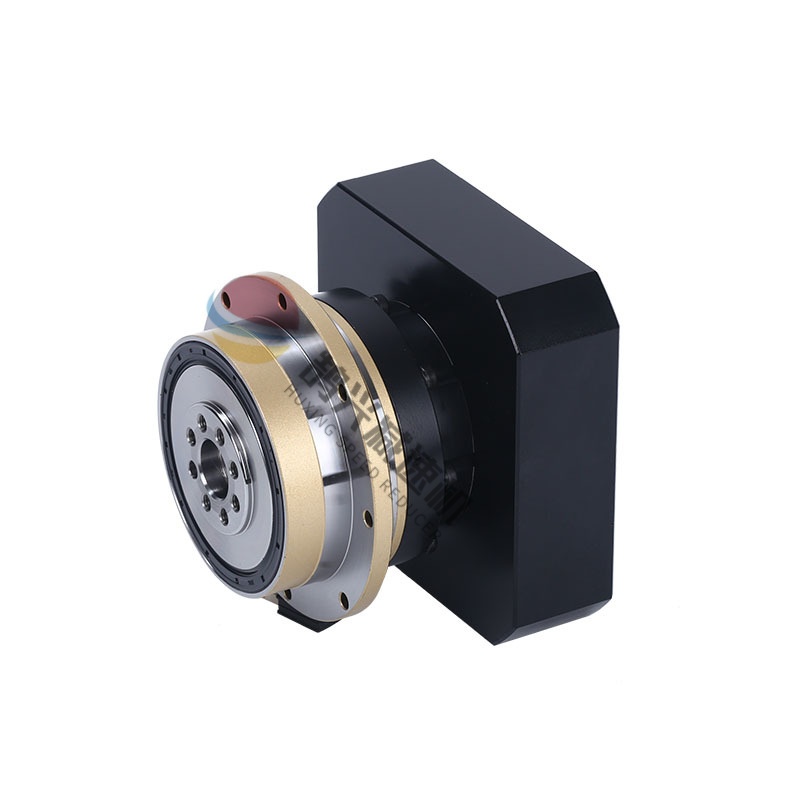

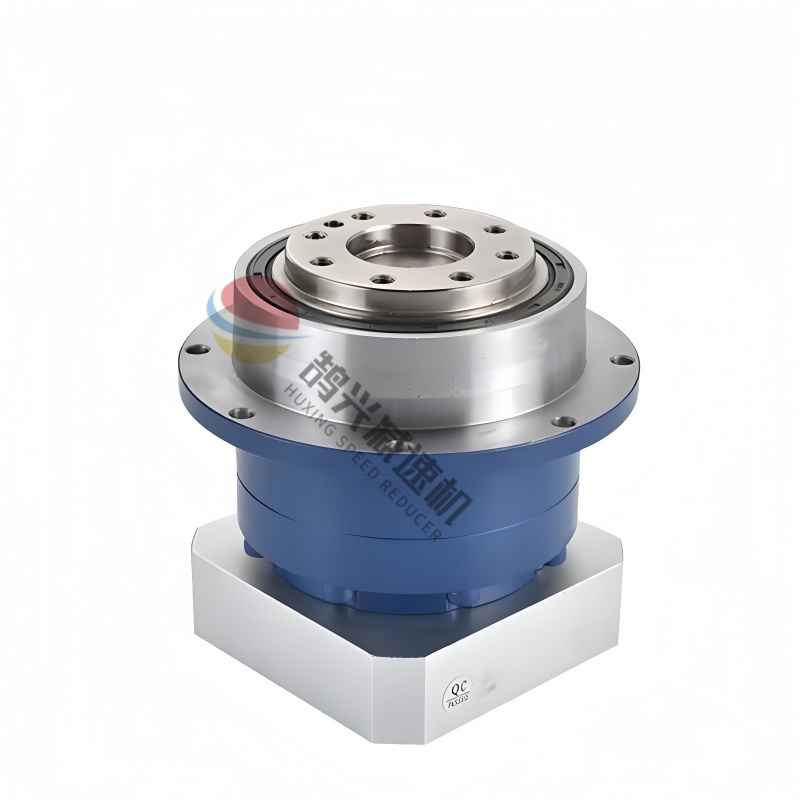

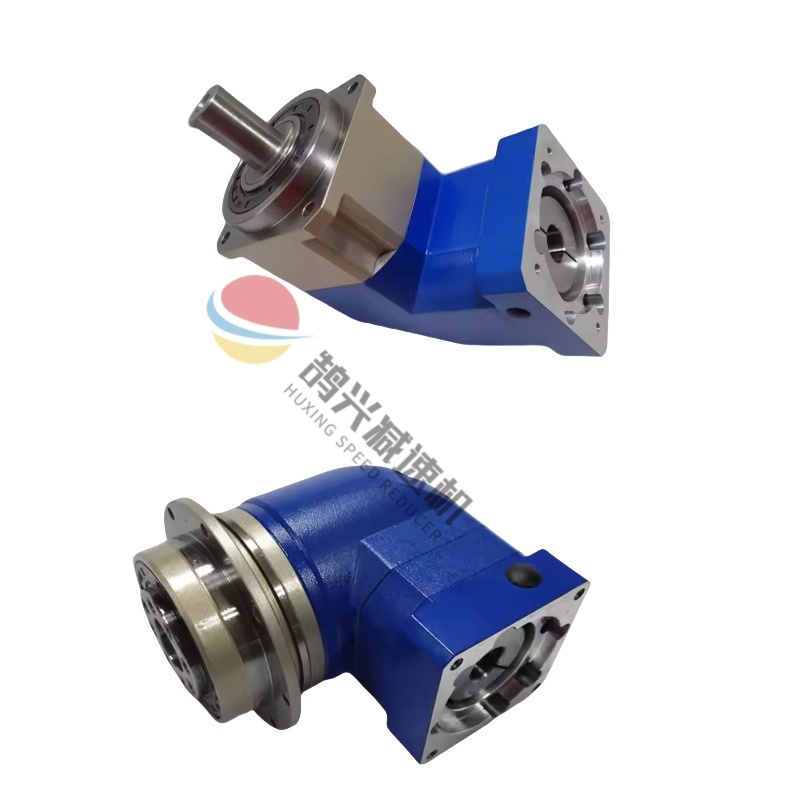

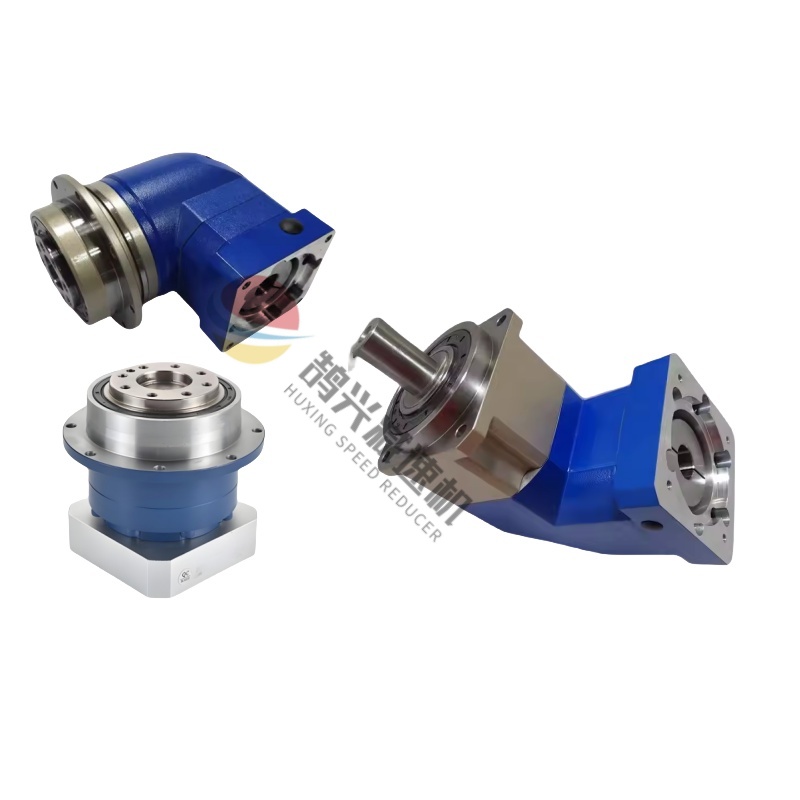

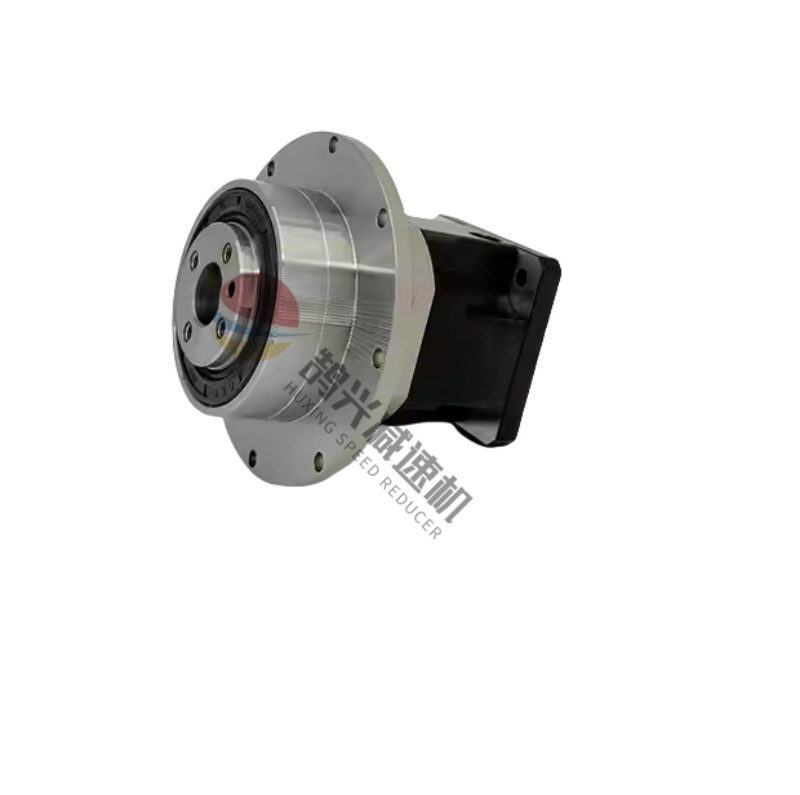

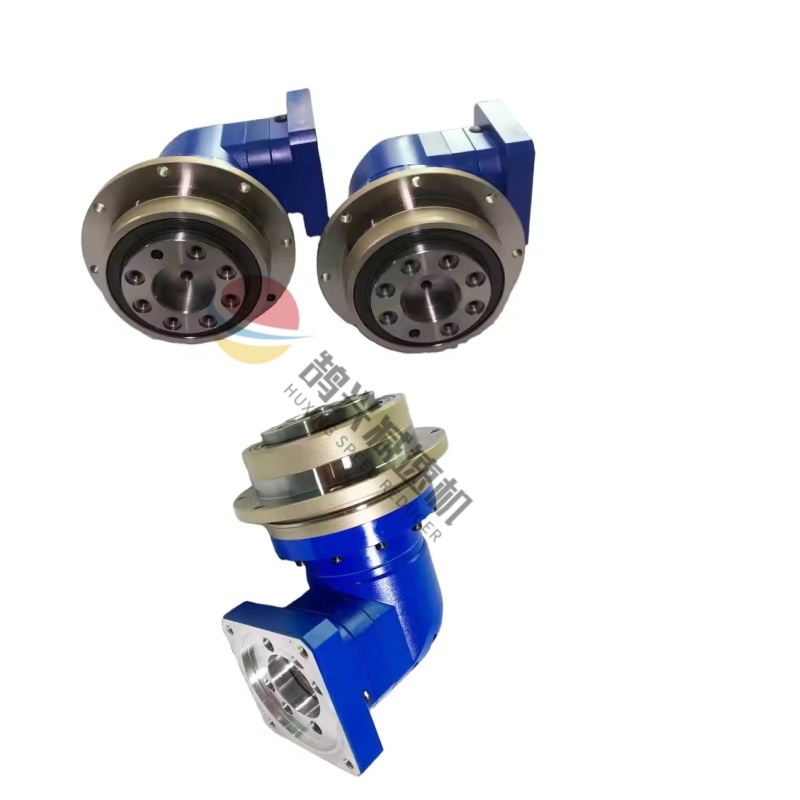

AD disc type high-precision servo planetary gear reducer
- Ideal for semiconductor manufacturing equipment
- Perfect for industrial robots and collaborative robots
- Suitable for precision CNC machine tools and rotary tables
- Reliable solution for medical devices and aerospace applications

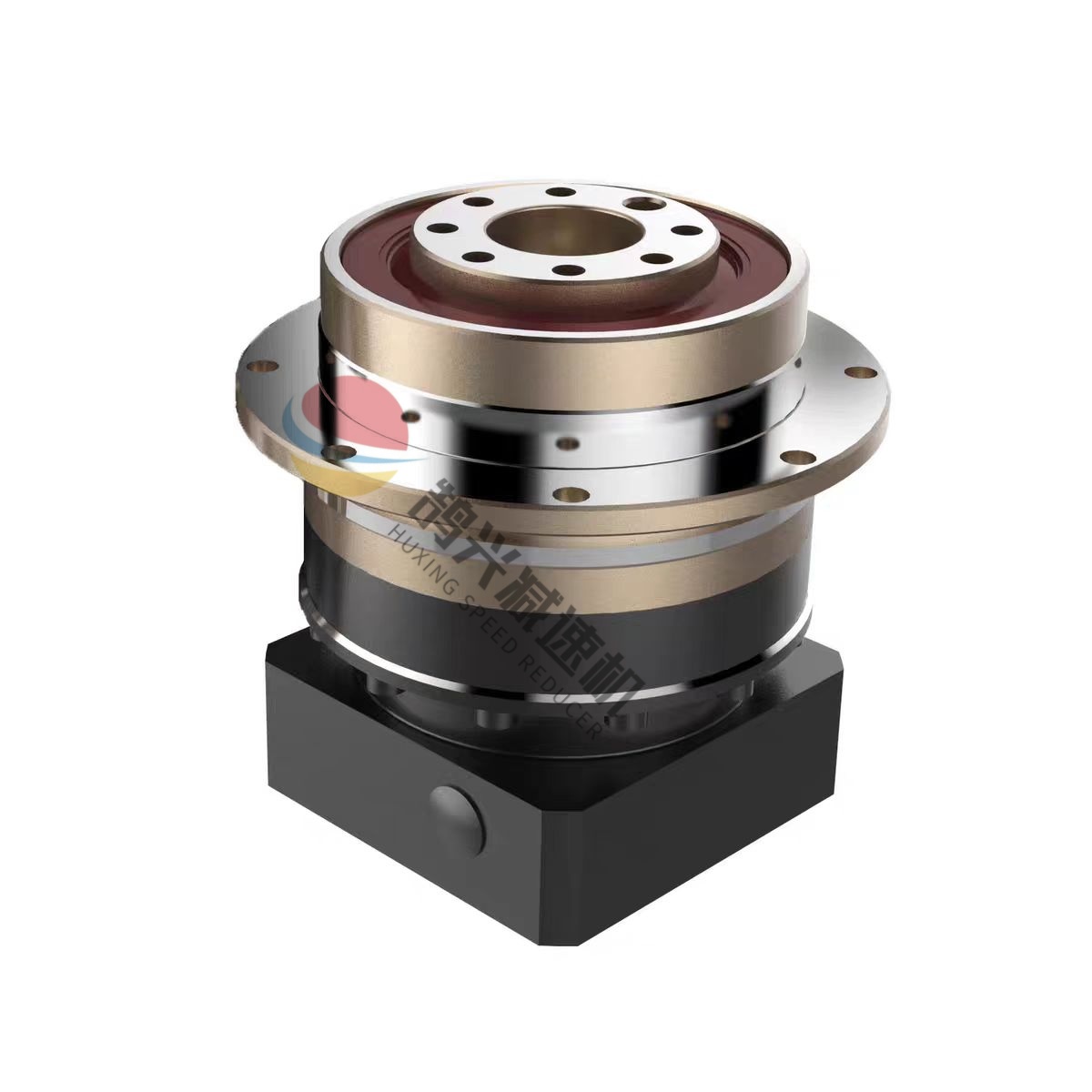

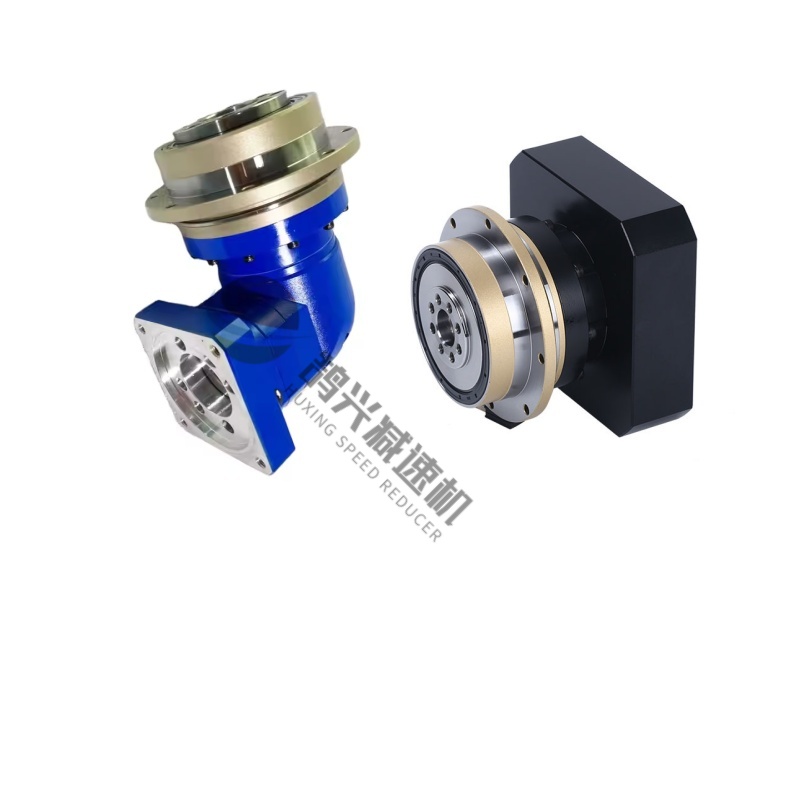

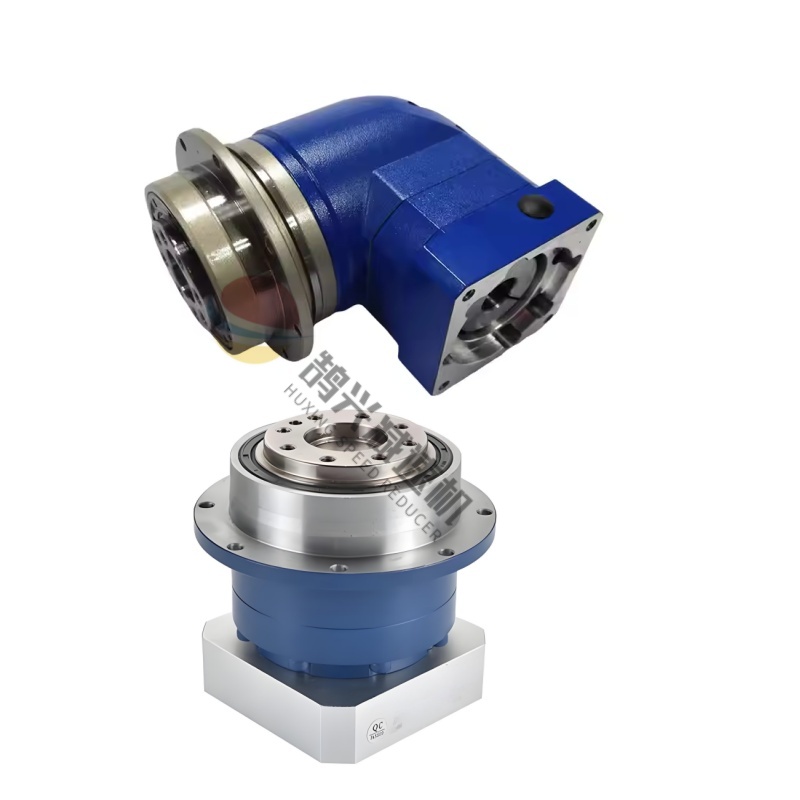

AD series reducer

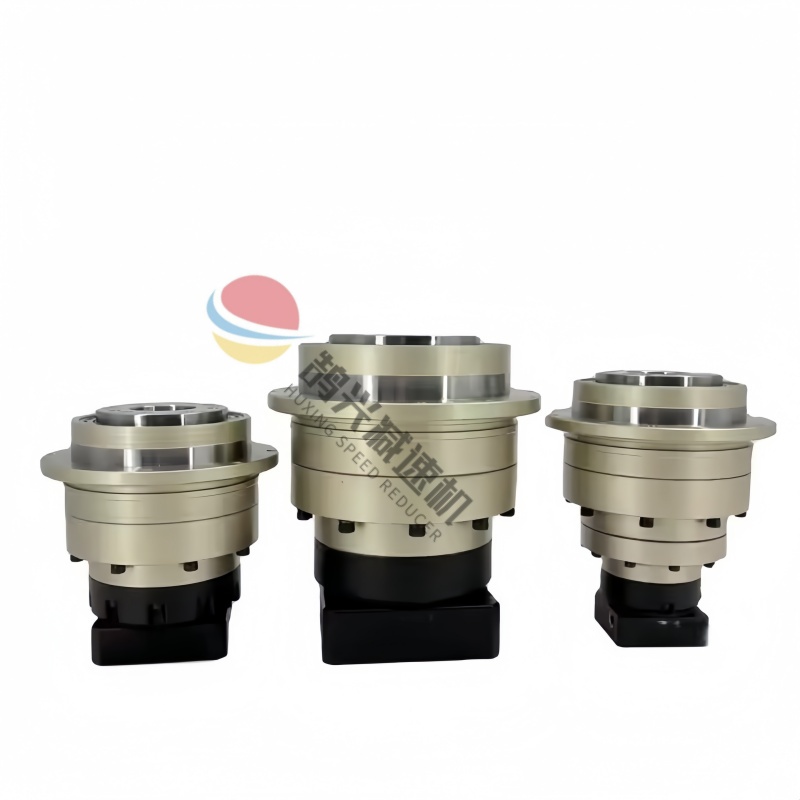

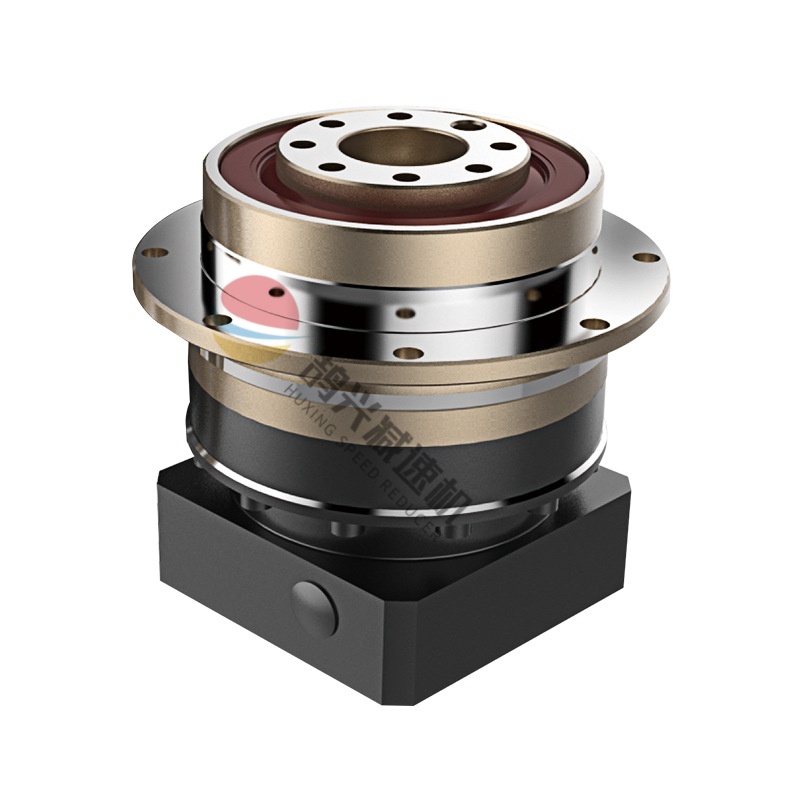

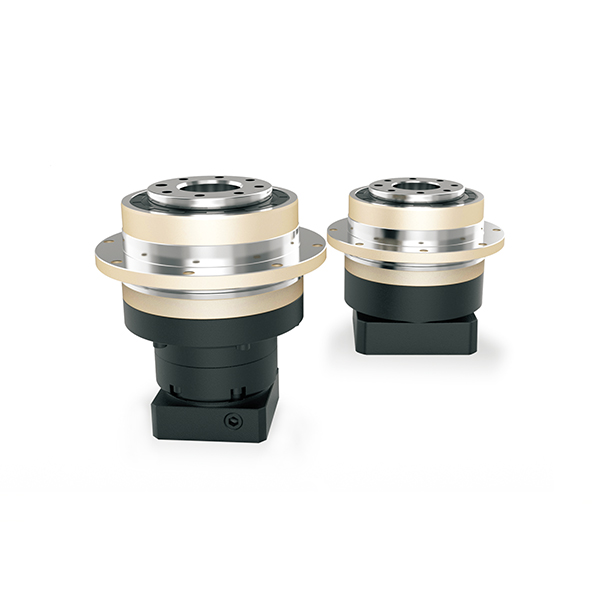

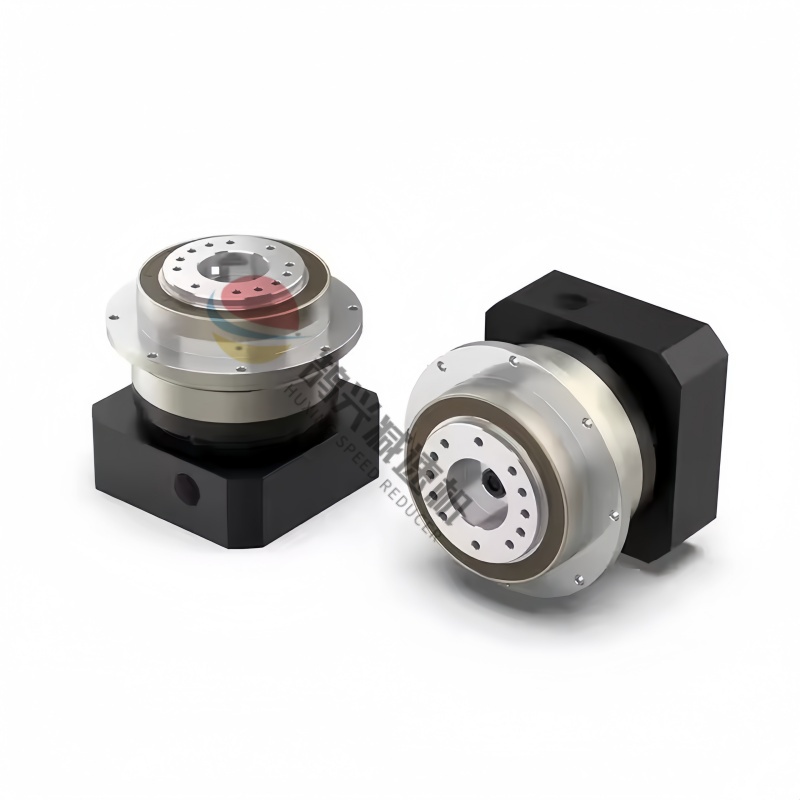

Product Name: Precision Planetary Reducer Product Series: AD Series Product Model: AD064/AD090
/AD110/AD140/AD200 Product Features: High rigidity, high efficiency, small size, large torque,

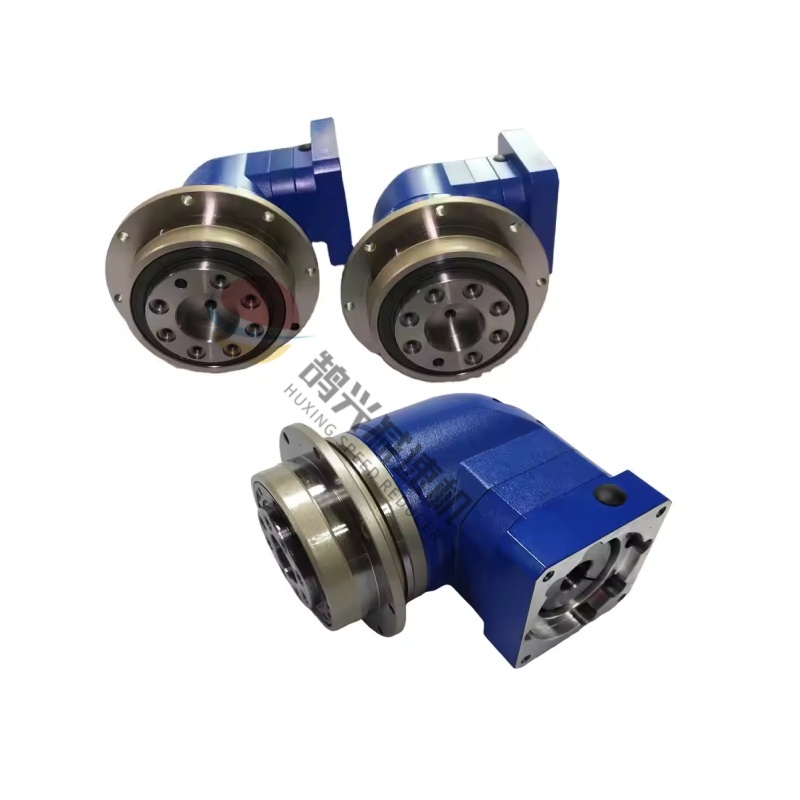

low backlash, low noise Product Introduction: ● Compact rotating flange output,
saving space and improving torsional stiffness ● Standardized
Product Name: Precision Planetary Reducer
Product series: AD series
Performance Characteristics
Output size: 47-255mm, 355mm
Speed ratio: 4 5 7 10, 20-200
Minimum back clearance:

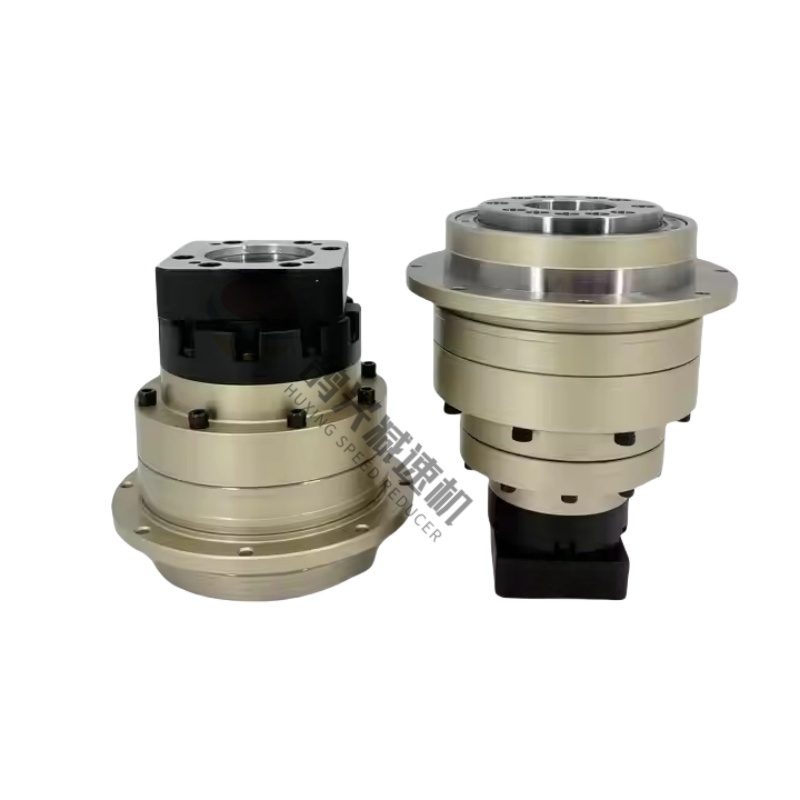

Single Stage ≤ 1 Arcminute Double Stage ≤ 3 Arcminute
Performance data
The AD series reducer can meet some very special needs, with high stiffness, high performance,
and compact and versatile structure being the main features of this product,
which can be freely matched.
AD series reducer offers quiet operation with high axial load and tilt moment,.
High qualityand capacity load bearing ensures smooth operation for any flange-operated applications.
