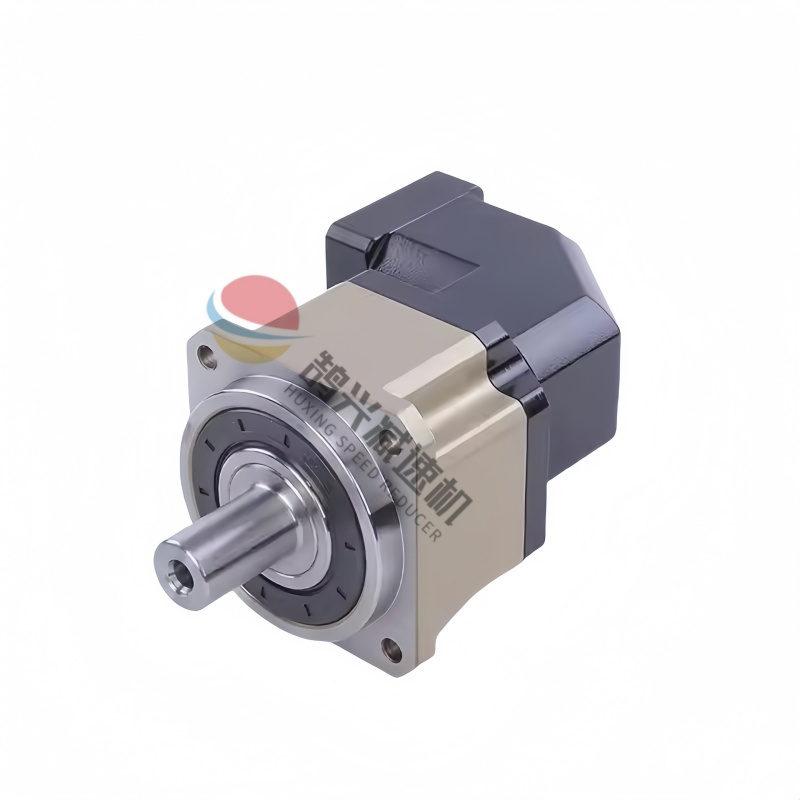

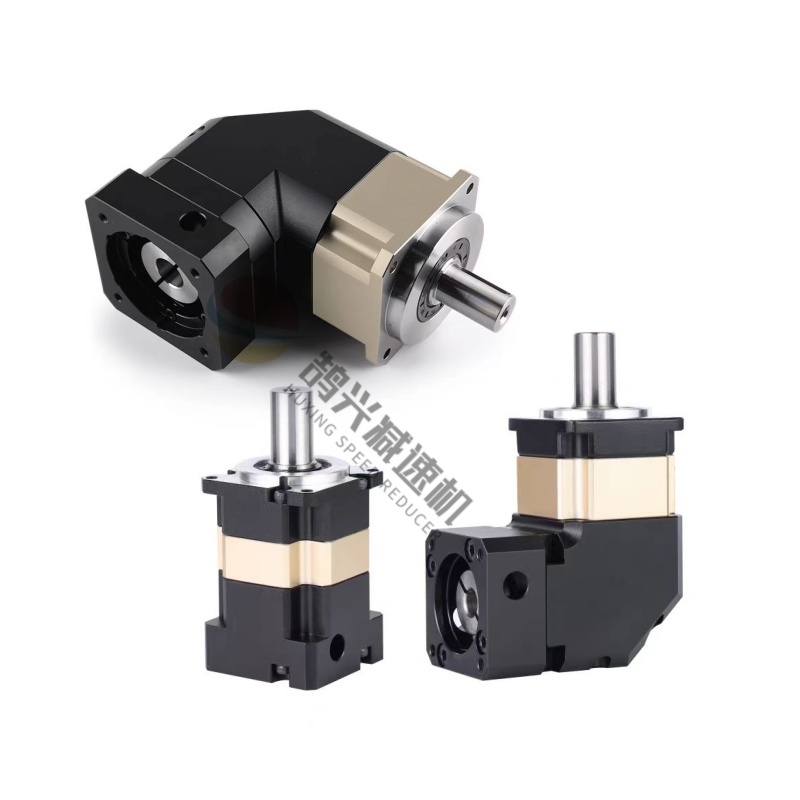

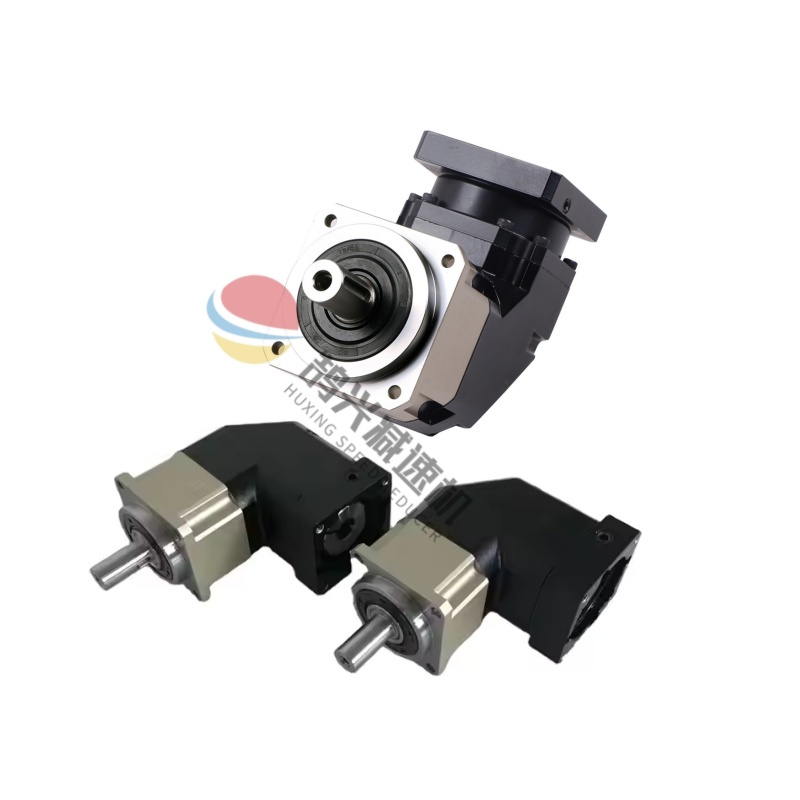

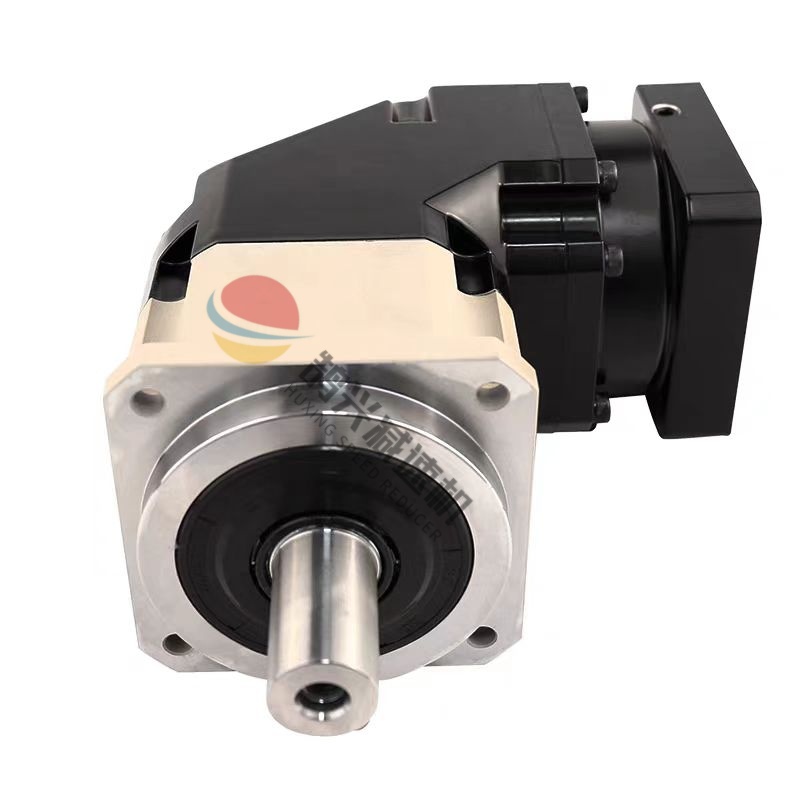

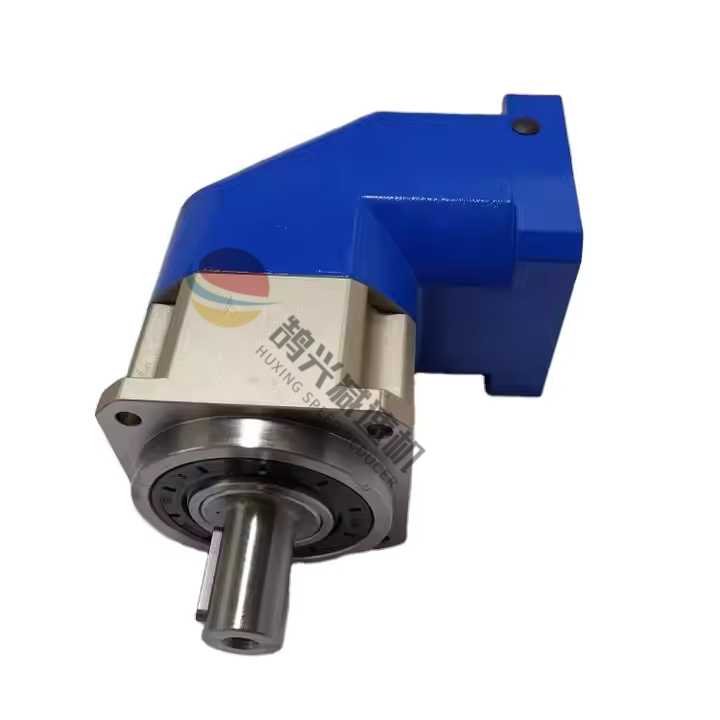

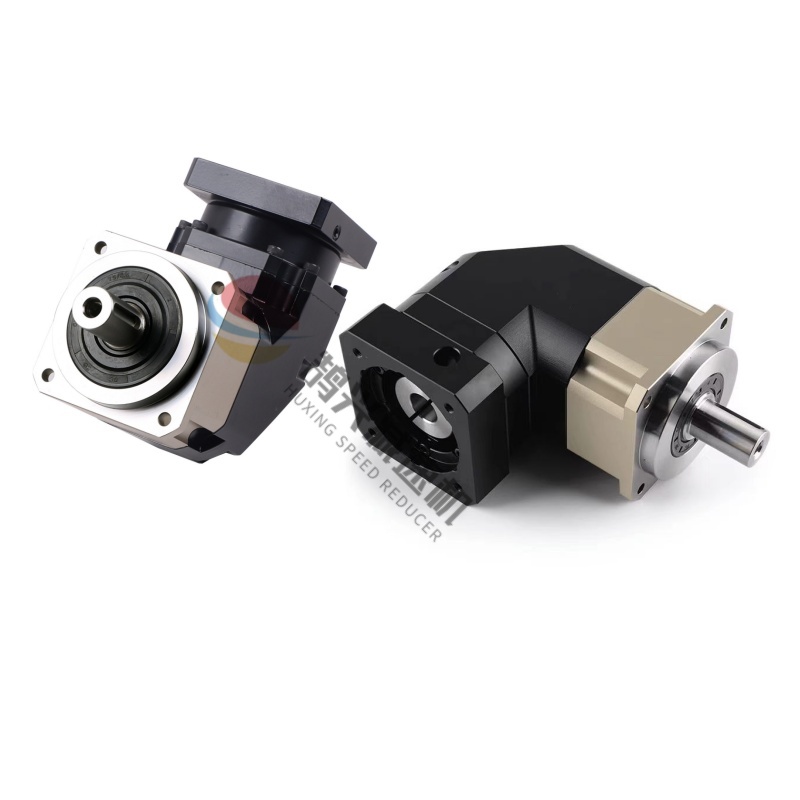

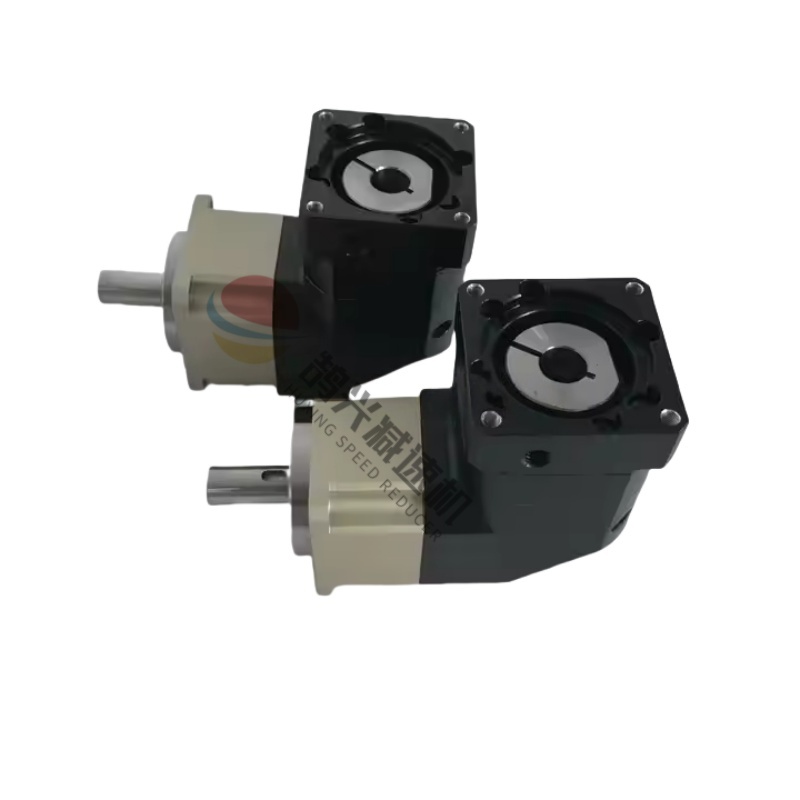

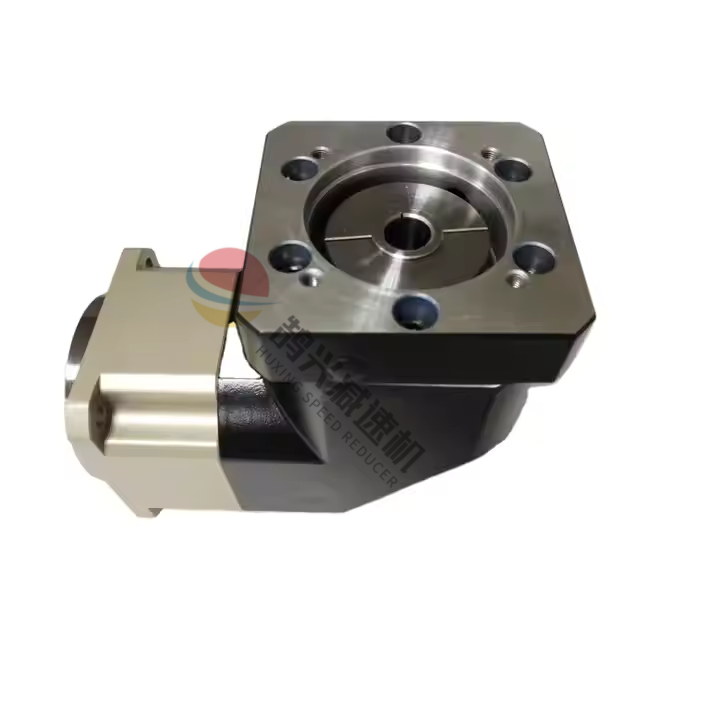

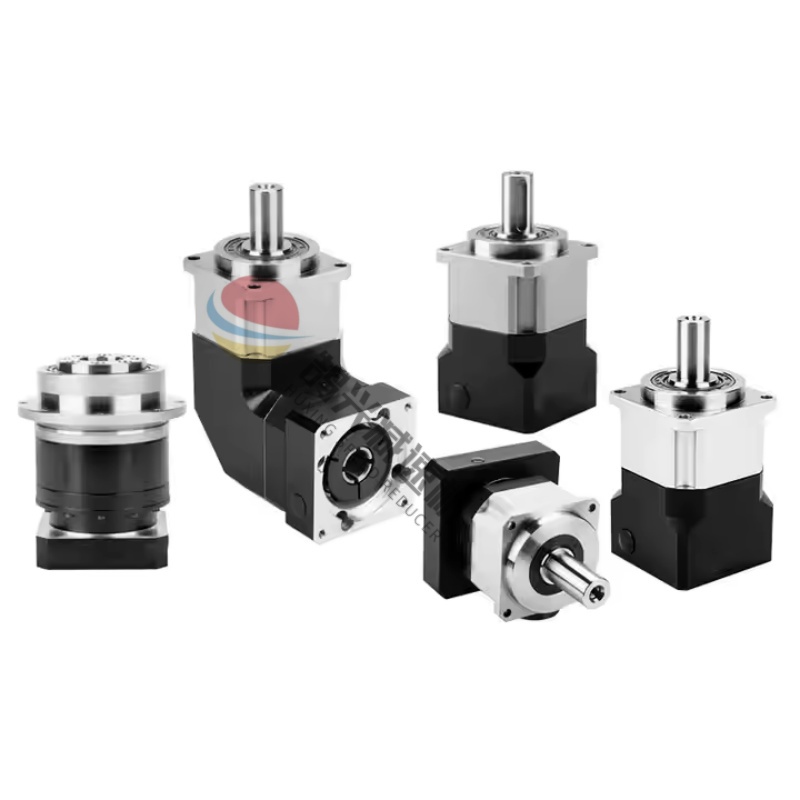

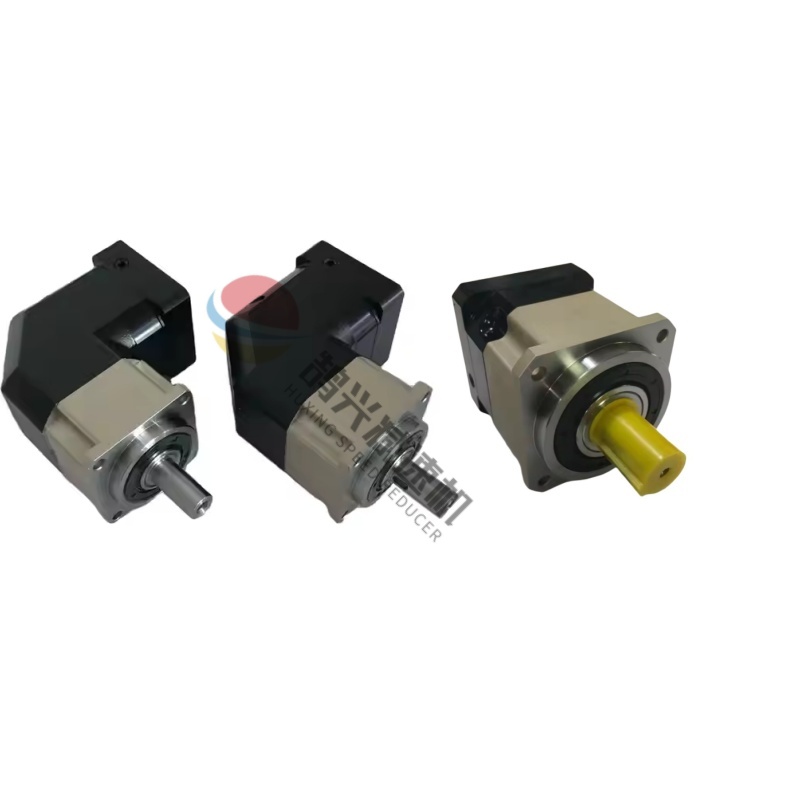

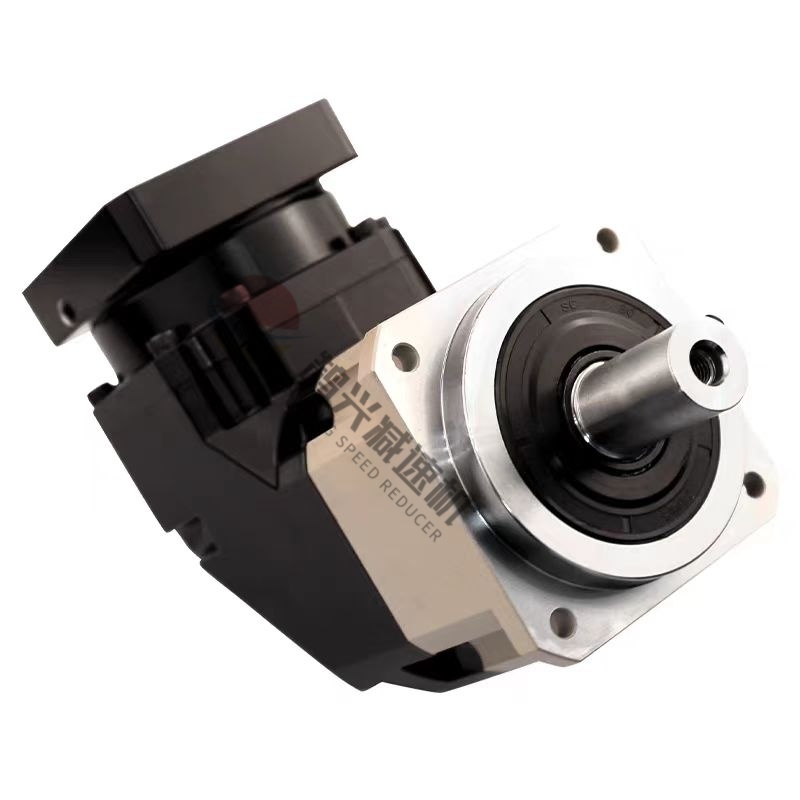

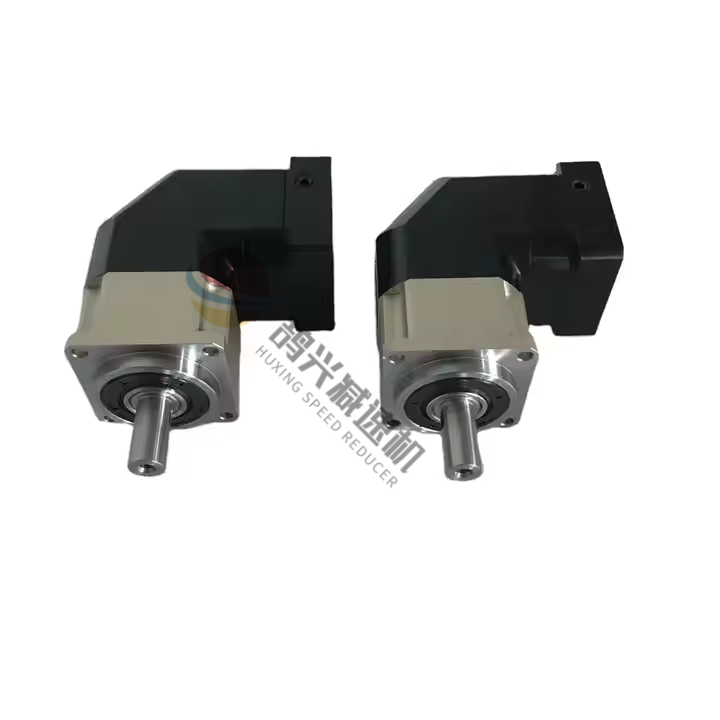

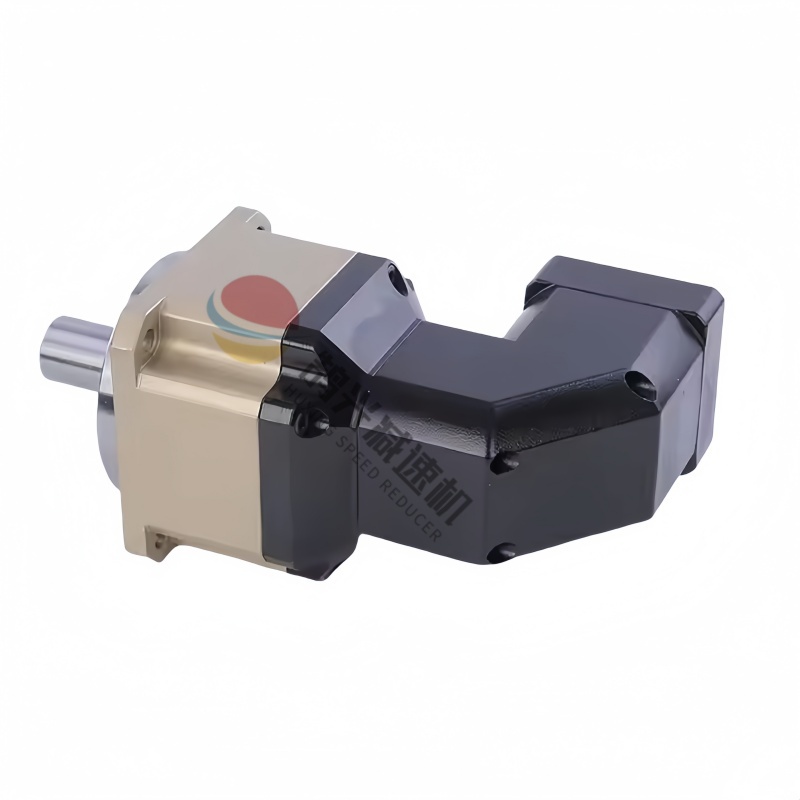

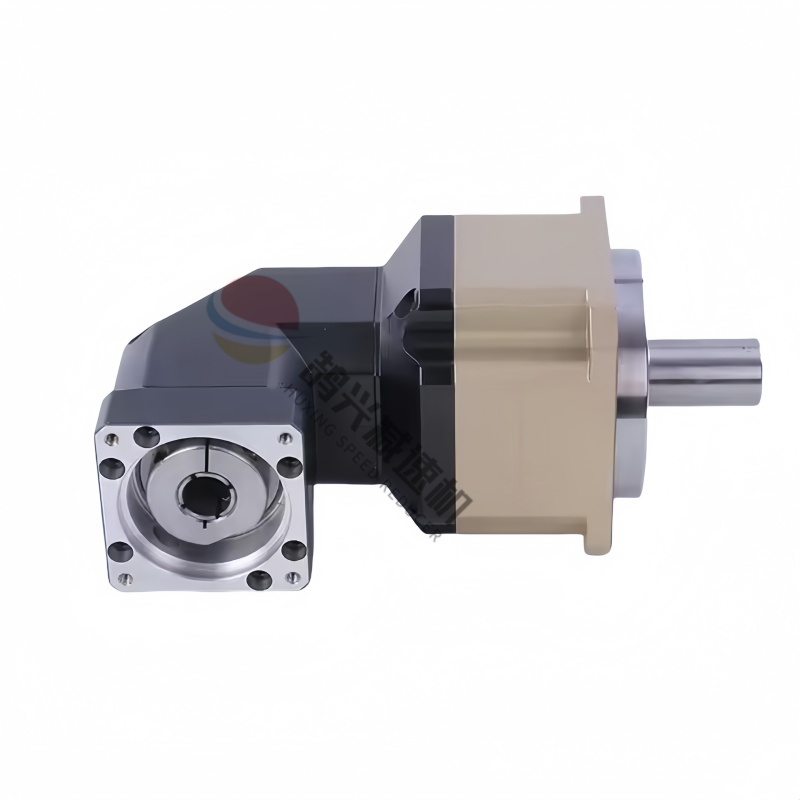

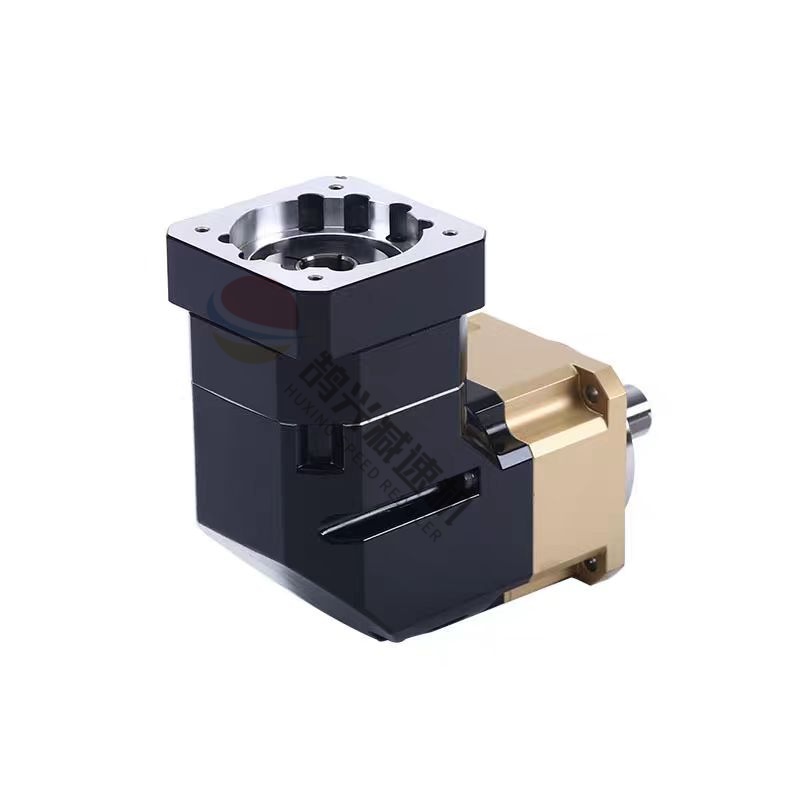

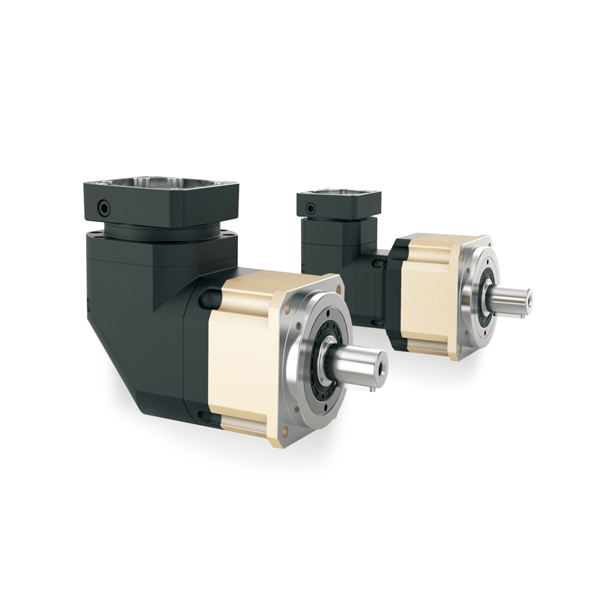

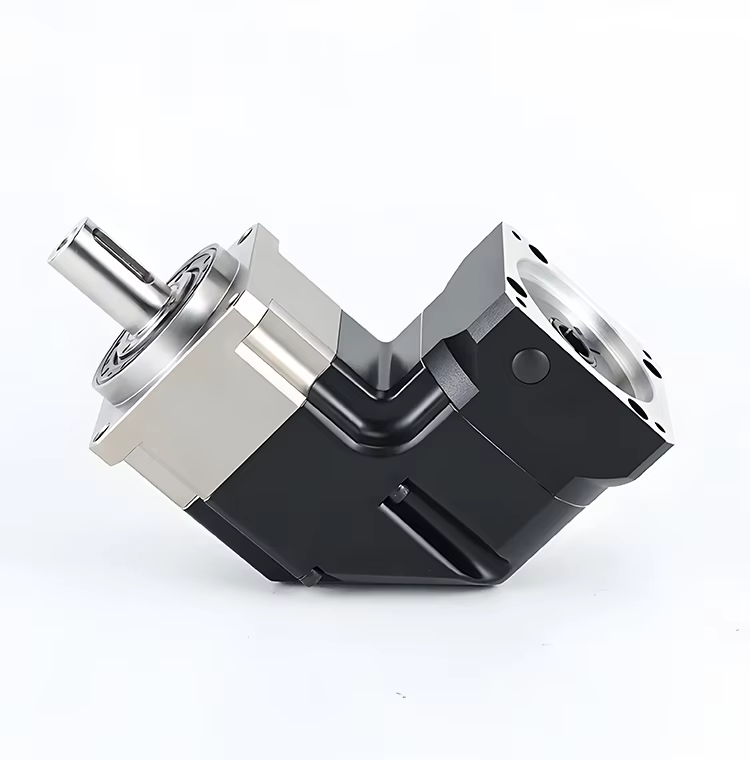

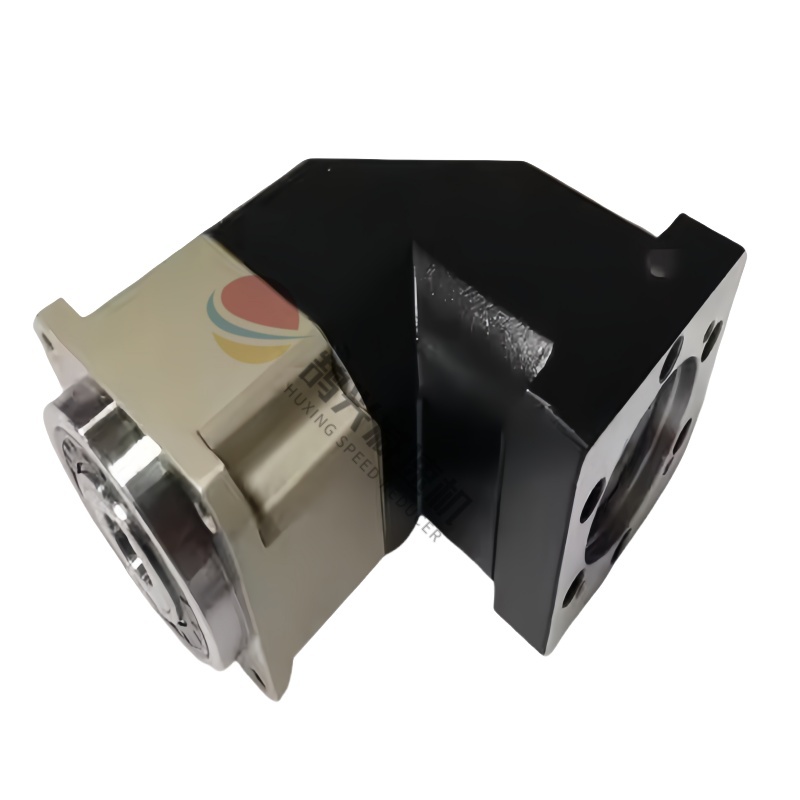

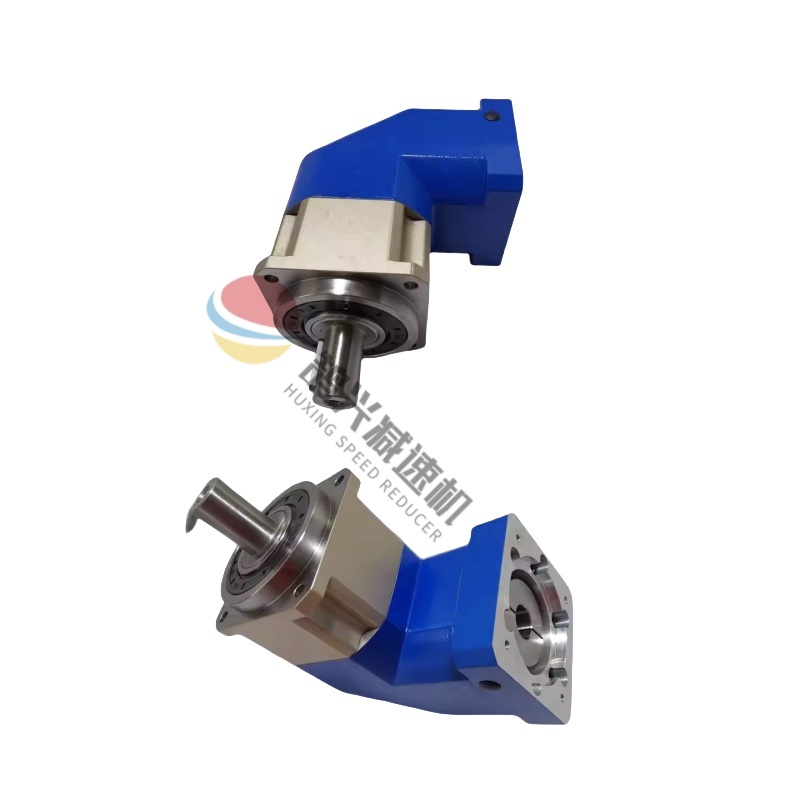

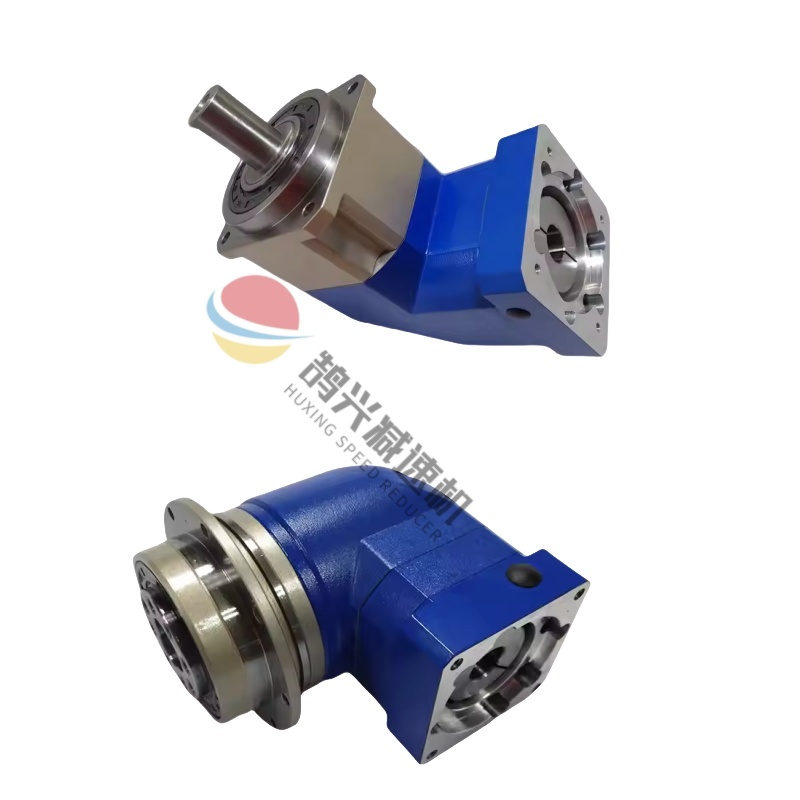

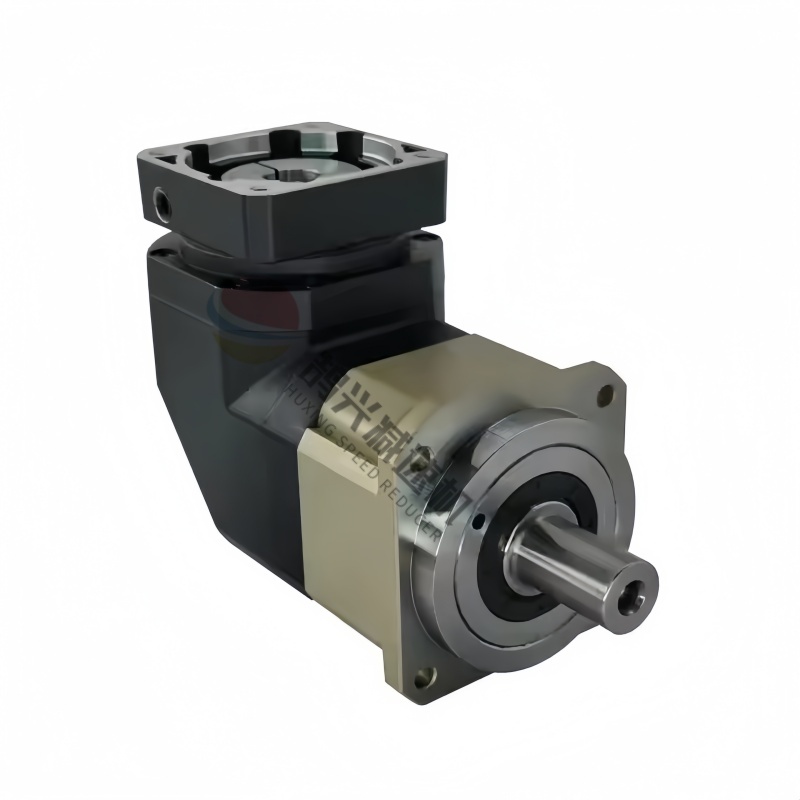

ABR series right-angle precision planetary gearbox
- High torque density delivers up to 2567 Nm output torque

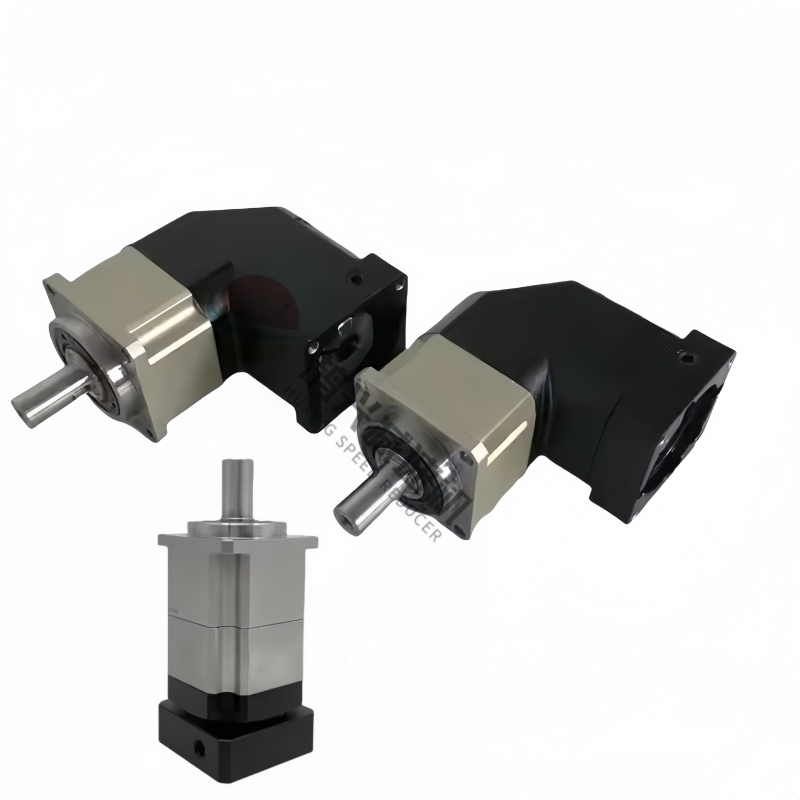

- Wide reduction ratio 3-320 for flexible speed control
- Quiet operation below 65 dB for noise sensitive environments
- High radial load capacity up to 16000N
Product Overview:

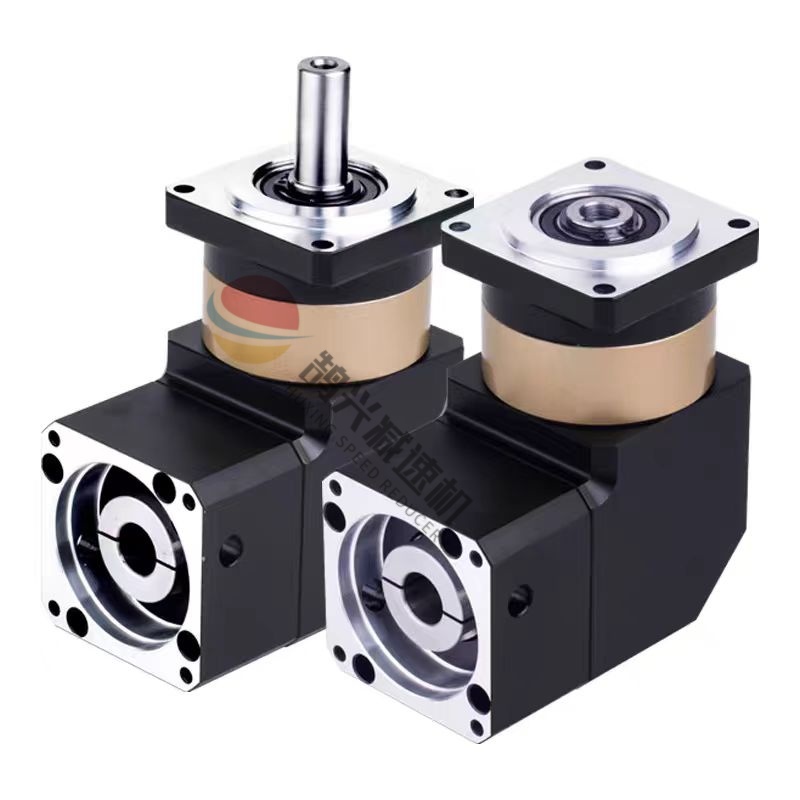

Save space

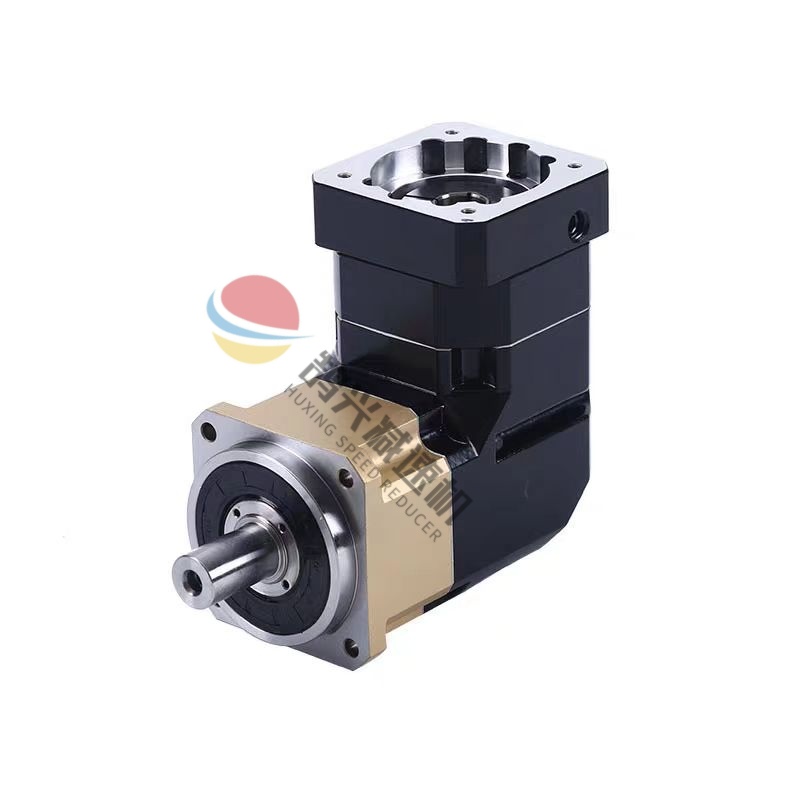

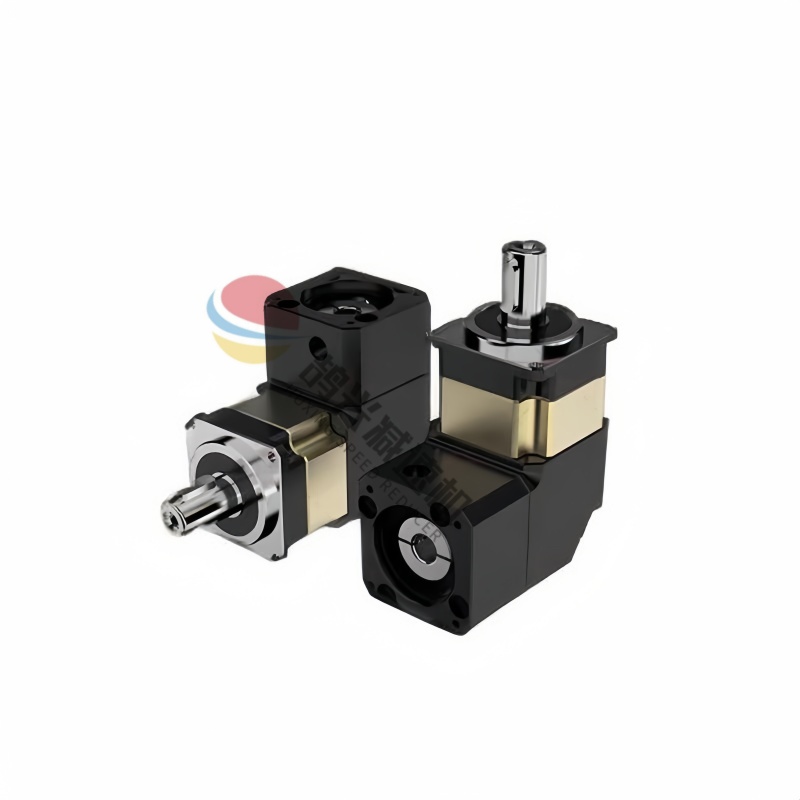

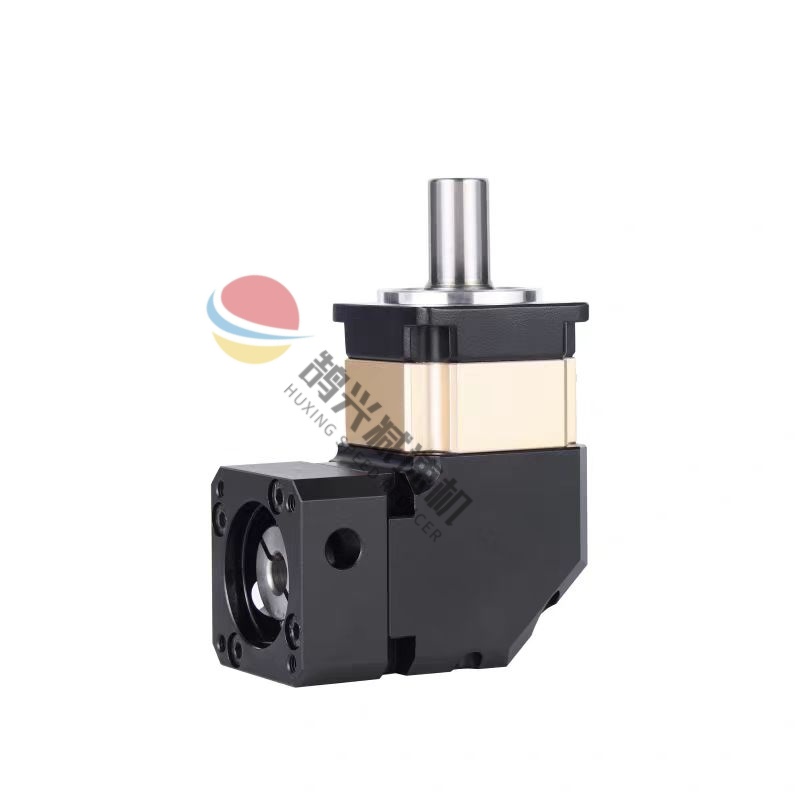

The orthogonal reducer employs spiral bevel gears, and its installation allows for a 90-degree bend
thereby saving installation space.

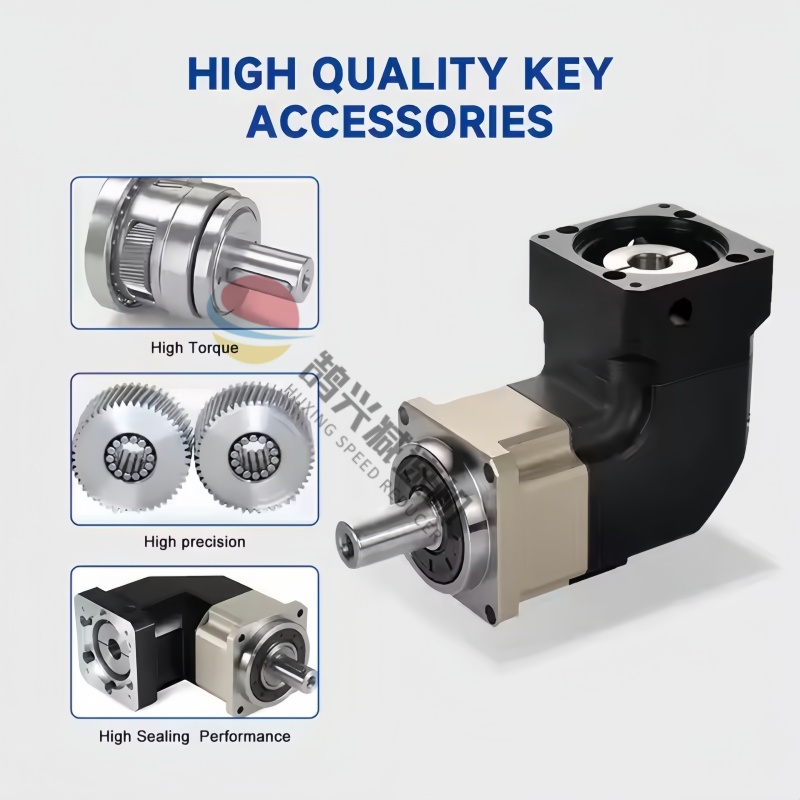

2. High rigidity, high torque
The use of integral needle roller bearings significantly enhances rigidity and torque.
3. Connector, sleeve type
It can be installed on the motor.
4. No grease leakage
Use high-viscosity, non-separable grease to effectively prevent grease leakage.
5. Easy maintenance
No grease replacement is required during the product's lifespan, and installation is more convenient
● Output size:42-220mm,285mm,355mm

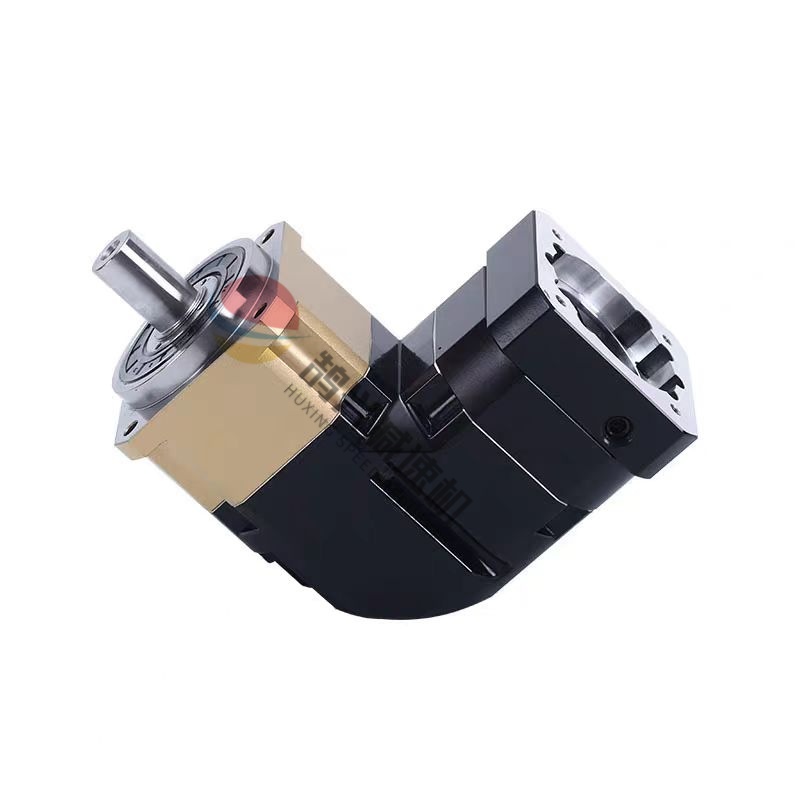

●Speed ratio:3/4/5/6/7/8/10,15-200
● Minimum back clearance:
One Stage≤2(Arcminute) (Two Stage) ≤4(Arcminute)
Performance Data
The advantage lies in: This planetary gear reducer achieves maximum efficiency even
at the highest speed, making it highly suitable for high-standard production
conditions—a truly powerful and cost-effective product.
